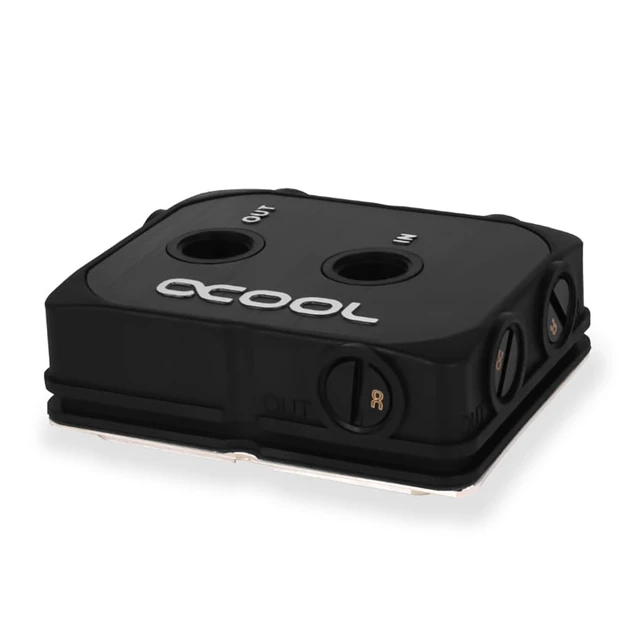

Alphacool Eisblock XPX Pro 1U Ampere LGA 4926 CPU Water Block, G1/4, Copper, Black (13529)

The Alphacool Eisblock XPX Pro 1U Ampere LGA 4926 is a 1U CPU water block for server and workstation systems on the Ampere LGA 4926 socket. It is specifically designed for that socket, making it exclusively compatible with this socket variant.

Properties

• Ampere sockets: LGA 4926
• Cold plate: Nickel-plated copper
• Top: Nylon, black
• Ports: 3 x IN and 5 x OUT, G1/4
• Size: 79.00 x 63.68 x 27.20 mm

Fit

The two LGA 4926 brackets are in the box with their four bolts, springs and knurled nuts. Screw the bolts into the socket base, then fix the cooler and its bracket with the springs and nuts, hand-tight. For Intel and AMD server sockets the block is the Eisblock XPX Pro 1U.

Optimized for Ampere LGA 4926

Alphacool describes a reliable CPU water cooler that offers outstanding cooling performance. It says the flow rate has been optimized to be able to reliably dissipate the waste heat.

Versatile Connectivity Options

Thanks to its three inlets and five G1/4 outlets, the block allows for flexible connections in almost any direction. Alphacool designed it to be ideal for all 1U cases, providing all the versatility needed in a server or workstation system.

What the loop needs

The block has eight G1/4 threads. Two take the compression fittings for your tube size, which are not in the box, and the six screw plugs that are in the box close the rest. Fittings may be up to 18 mm in diameter. The loop also needs a pump and a radiator.

Technical data

• Dimensions (L x W x H): 79.00 x 63.68 x 27.20 mm
• Material cooling plate: nickel plated copper
• Material cooler top: Nylon
• Weight: 230 g
• Max working temperature: 60 °C
• Pressure tested: 0.8 bar
• Connections: 3 x G1/4 (IN) | 5 x G1/4 (OUT)
• Color: black

Notes

• Alphacool asks that the block be used only with clear transparent water cooling fluids. It warns that the particles and additives in Pastel liquids can clog and permanently damage radiators, pumps, coolers and hoses, which can void the manufacturer's warranty.

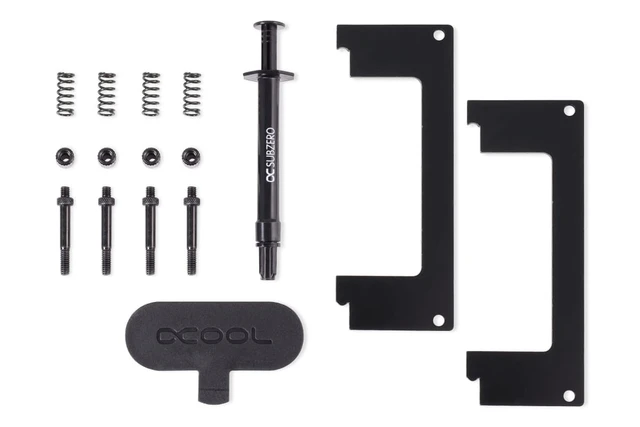

In the box

• 1x Eisblock XPX Pro 1U CPU Cooler
• 1x Subzero thermal paste
• 2x LGA 4926 bracket
• 4x LGA 4926 Bolt
• 4x Spring
• 4x Knurled Nut
• 6x Screw plug
• 1x Plug Tool
