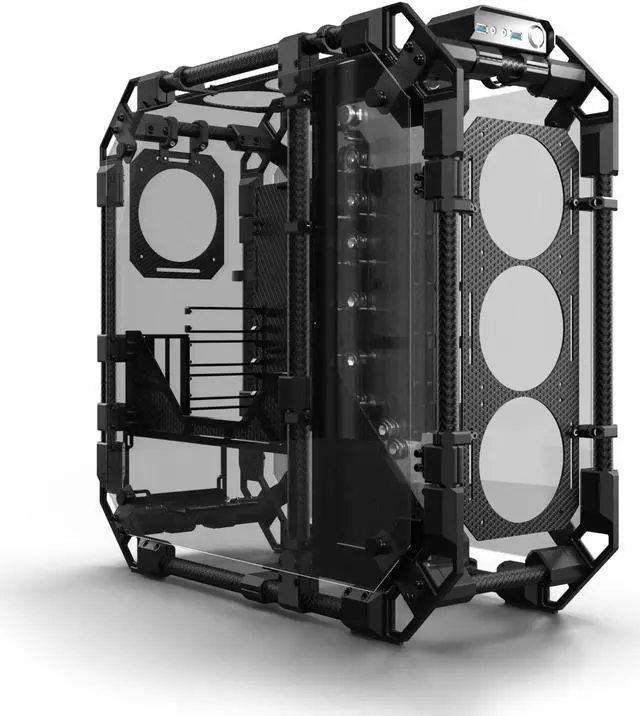

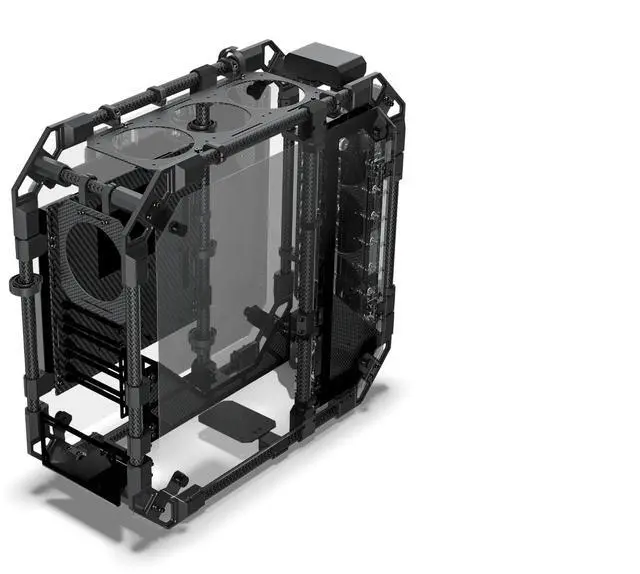

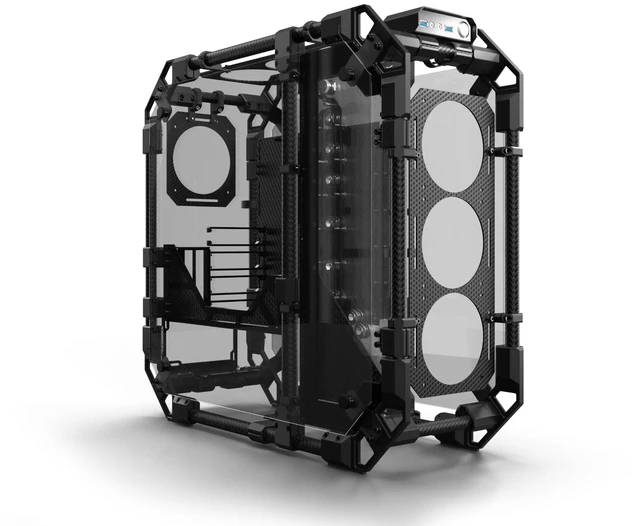

Alphacool Apex Pro Skeleton Carbon Case, ATX, EATX, ITX, mATX, Full Tower (13758)

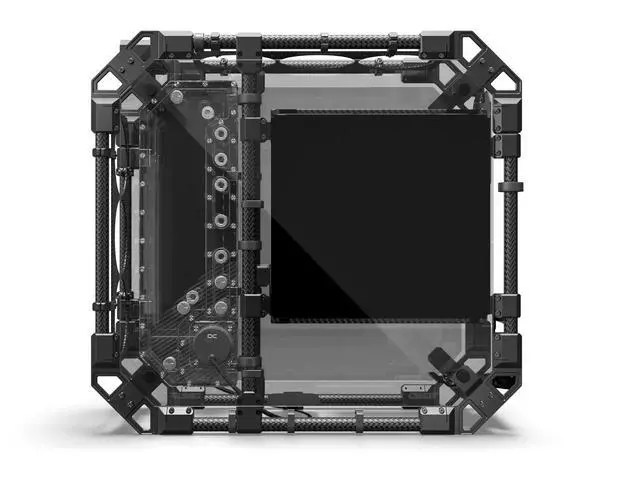

The Alphacool Apex Pro Skeleton Carbon Case is a PC case for water cooling that takes ATX, mATX, EATX and ITX mainboards and has three radiator mounts, two for 360mm and one for 120mm. It comes with a distro plate with a 750ml reservoir and a pre-assembled VPP Apex pump, plus a vertical GPU mount with PCIe riser cable. The Apex Skeleton Carbon Case is the version delivered without a distro plate, pump and vertical GPU holder.

Properties

• Mainboard support: ATX, mATX, EATX, ITX
• Radiators: Front/top 120, 240, 360mm, rear 120mm
• Size (L x W x H): 607.50 x 259.80 x 573.00 mm
• Distro plate: approx. 750ml, VPP Apex pump pre-installed
• GPU bracket: Vertical: 2 Slot | Horizontal: 2+ Slot

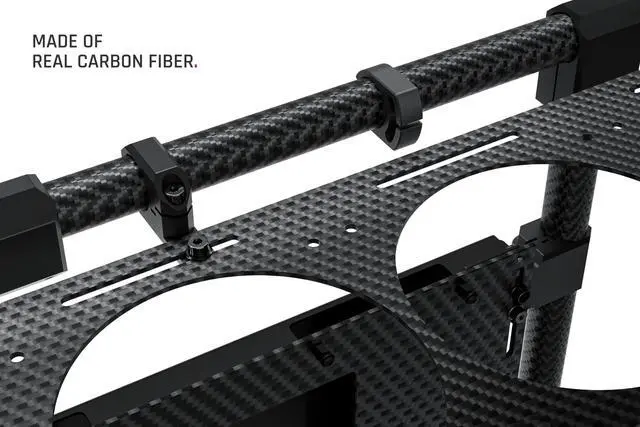

• Material: Carbon, aluminum, smoked glass

Technical data

• Dimensions (L x W x H): 607.50 x 259.80 x 573.00 mm
• Weight: 13kg
• Material: Carbon, aluminum, smoked glass
• Mainboard support: ATX, mATX, EATX, ITX
• PCIe slots (without vertical GPU mount): 7
• GPU bracket: Vertical: 2 Slot | Horizontal: 2+ Slot
• PCI Express Riser: 4.0 x16
• Drive mount: 1x 2.5" SSD
• Power supply bracket: ATX Standard
• Radiator front/top support: 120, 240, 360mm
• Radiator rear support: 120mm
• Frontpanel USB: 2x 3.0 Type A
• Frontpanel Audio: 1x audio output | 1x microphone input
• Color: carbon, black

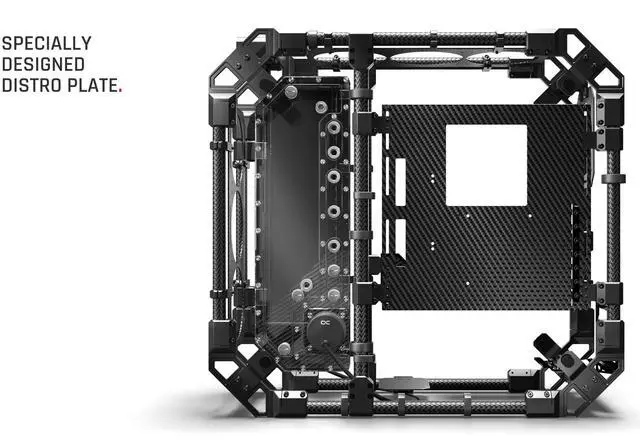

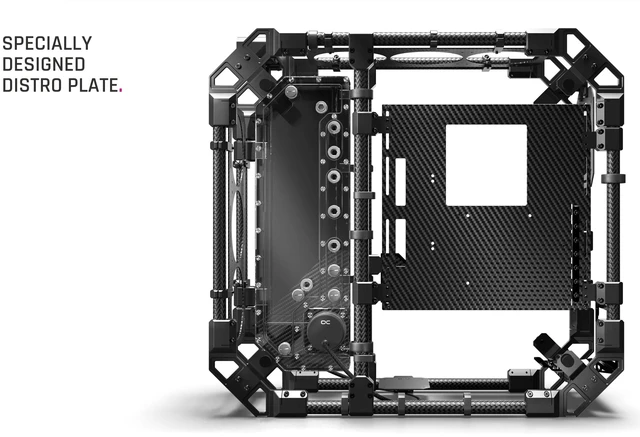

Technical data Distro Plate

• Dimensions (L x W x H): 155.00 x 63.50 x 486.00 mm
• Material: Acrylic
• Volume: approx. 750ml
• Pump compatibility: VPP/D5
• Threads: 9x G1/4 + 2x Fillport and 1x Drainport
• Maximum working temperature: 60 °C
• Pressure tested: 0.8 bar
• Quantity digital aRGB LEDs: 15
• Power digital aRGB LEDs: 5V
• Power connection digital aRGB LEDs: 3-Pin JST + 3-Pin 5V
• Color: transparent

Technical data pump

• Material pump: synthetic material
• Material pump cover: aluminum
• Material axle: ceramics
• Connections: 4-Pin PWM | SATA
• Rotational speed: 2500 - 4500 RPM
• Cable lengths: 4-Pin PWM - 48 cm | SATA - 48 cm
• Operating voltage: 8-13V DC / 14W IP32
• Starting voltage: 12V DC
• Maximum pumping head: 4.25 m
• Maximum flow rate: 340L/h
• Maximum working temperature: 60 °C
• Color: black

In the box

• 1x Skeleton Case
• 17x 6 - 32 UNC Screw
• 1x Vertical GPU Mount + PCIe Riser Cable
• 7x M4x12mm Screw
• 1x Support Bracket
• 7x PCIe IO Bracket
• 1x Distro Plate
• 6x G1/4 Plug
• 1x Plug tool
• 1x ARGB Adapter
• 5x Cable ties
