Alphacool Eisball Addressable RGB - Acryl with D5 VPP655 PWM Reservoir, G1/4 (13795)

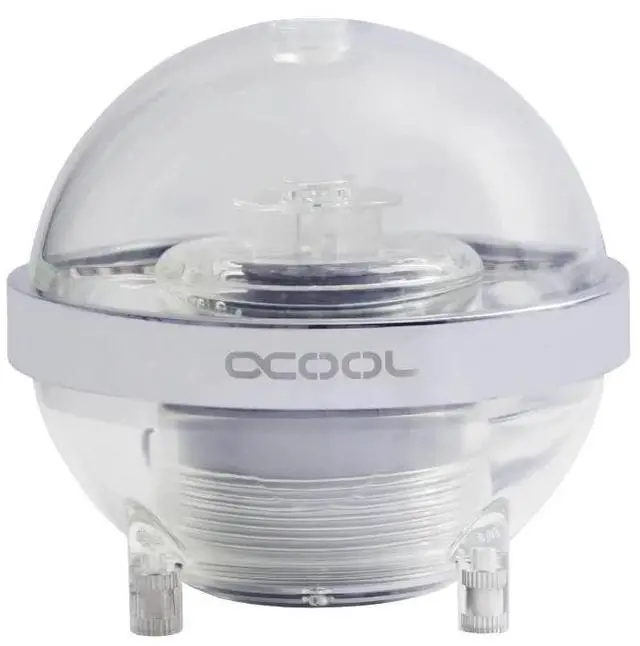

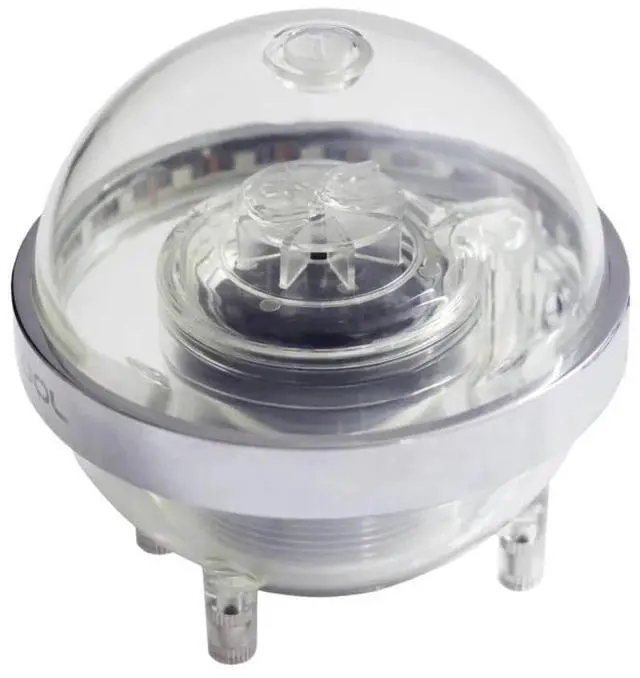

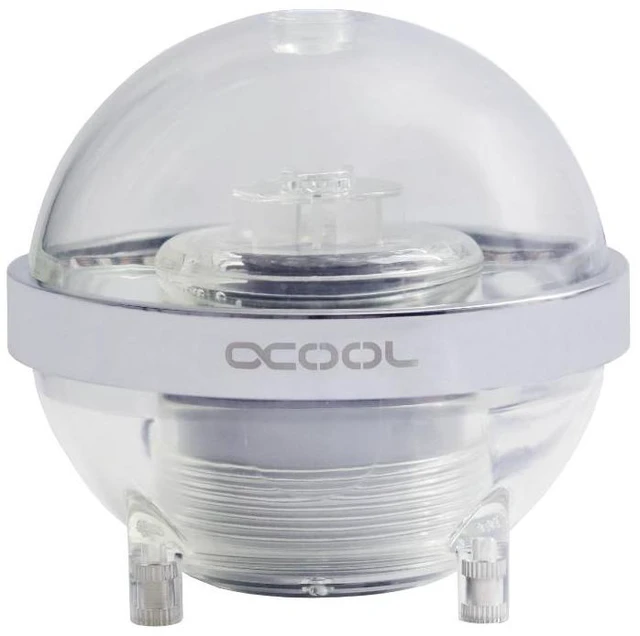

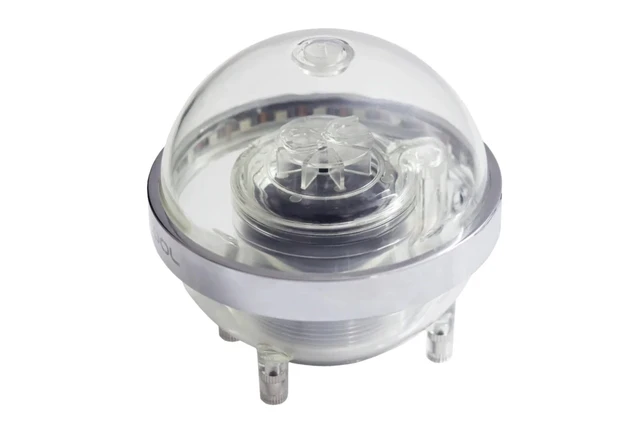

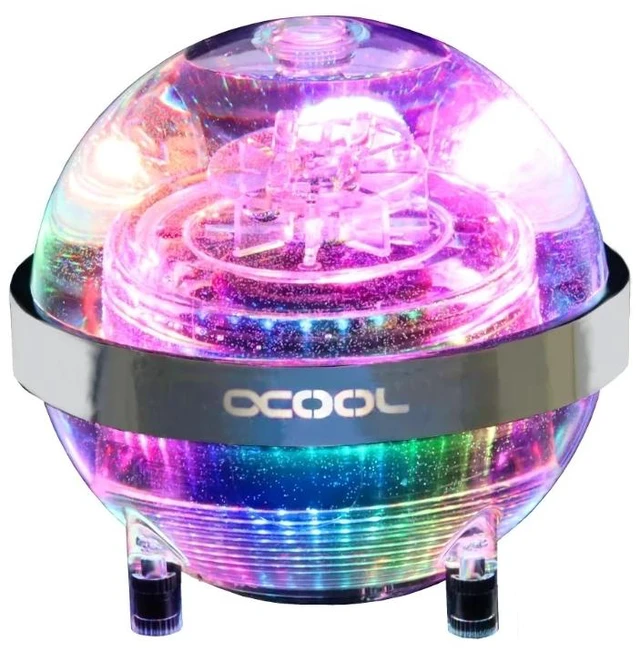

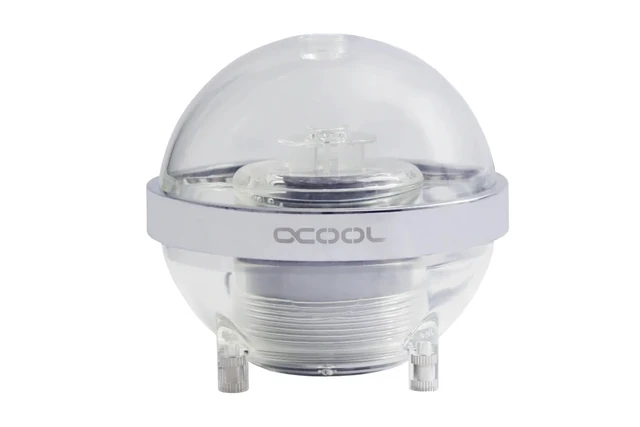

The Alphacool Eisball Addressable RGB - Acryl with D5 VPP655 PWM is a spherical 700 ml reservoir with an integrated pump top and the Eispump D5 VPP655 already pre-installed. Alphacool's note: the Eisball cannot be operated upside down with the VPP655 pump! The Eisball without a pump is the Eisball D5/VPP Ready.

Properties

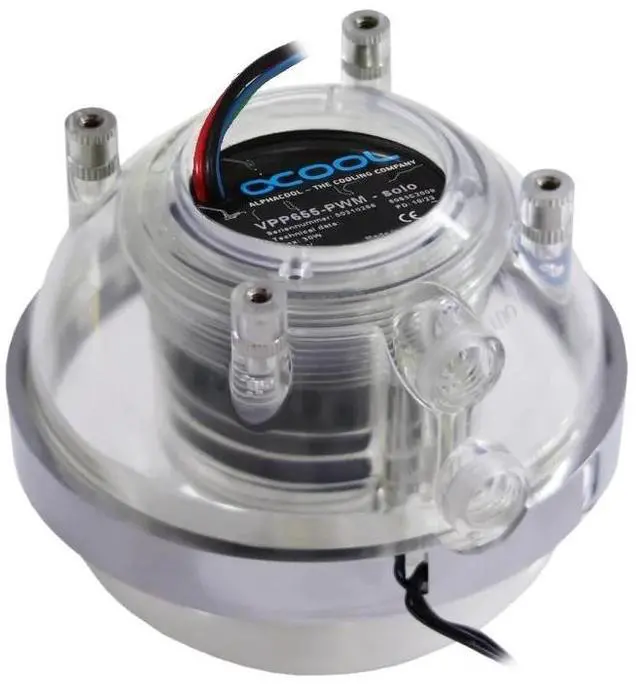

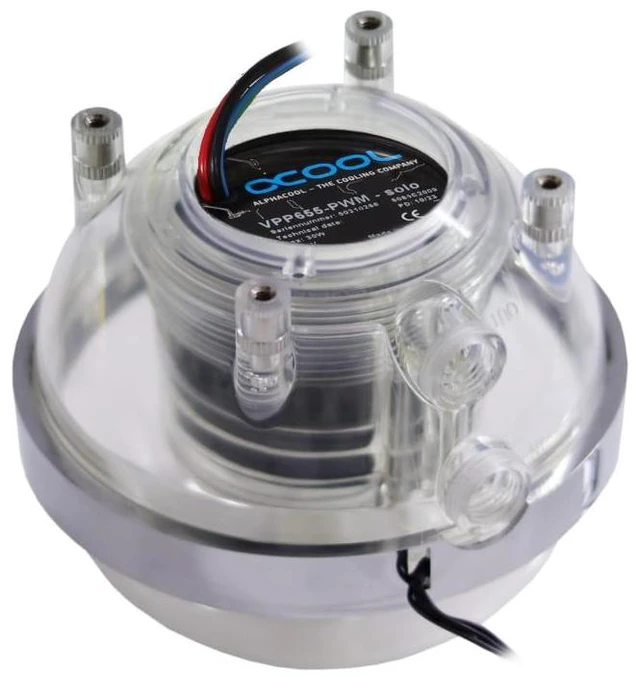

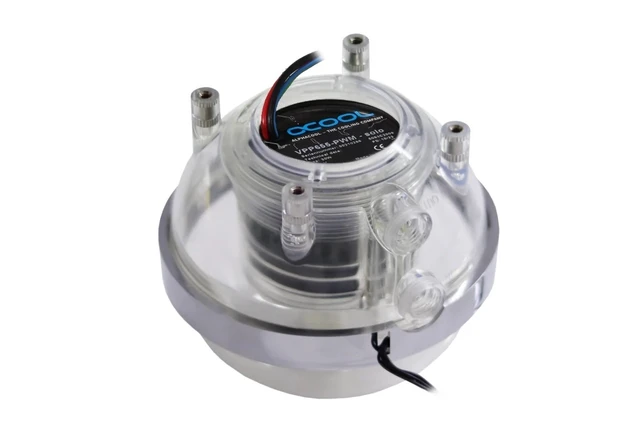

• Pump: D5 VPP655 PWM, pre-installed
• Capacity: 700 ml
• Ports: IN 1x G1/4, OUT 1x G1/4, fill port 1x G1/4
• Size (W x D x H): 117.51 x 128 x 128 mm

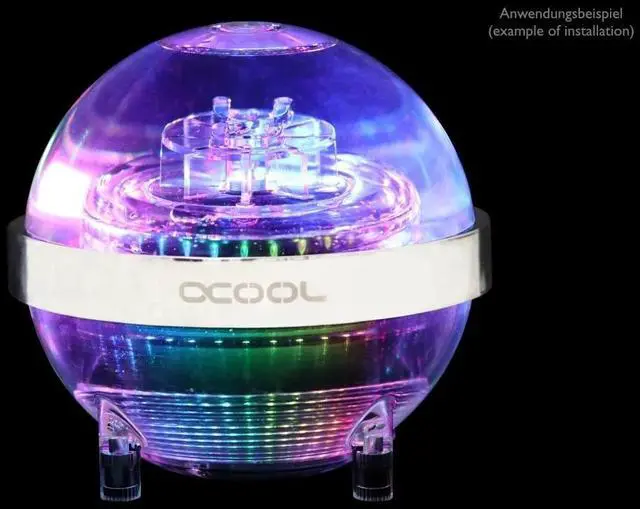

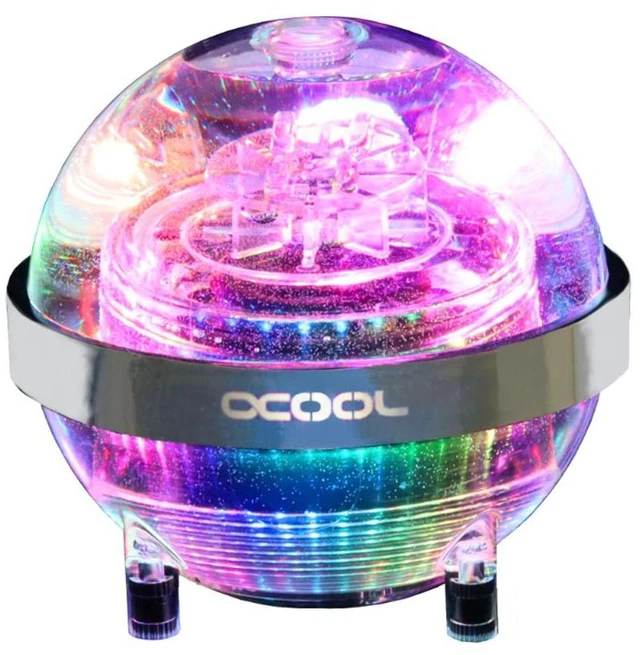

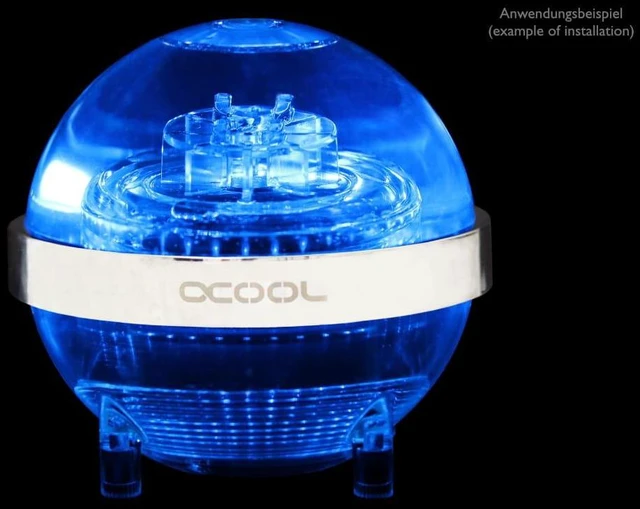

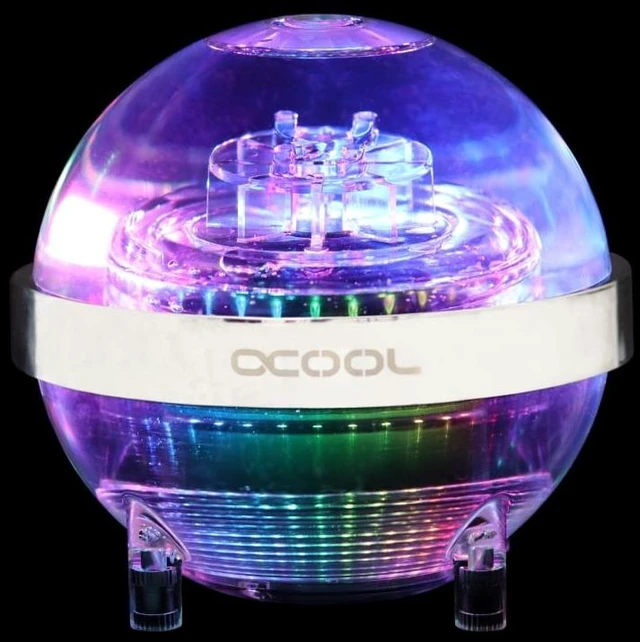

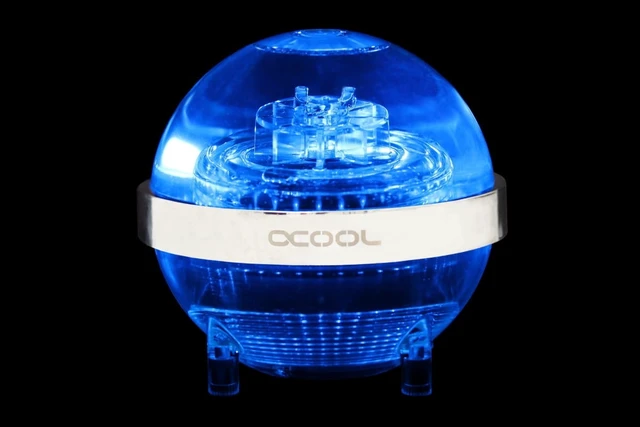

• Lighting: 22 digital RGB LEDs, 5 VDC, 4-Pin

What the loop needs

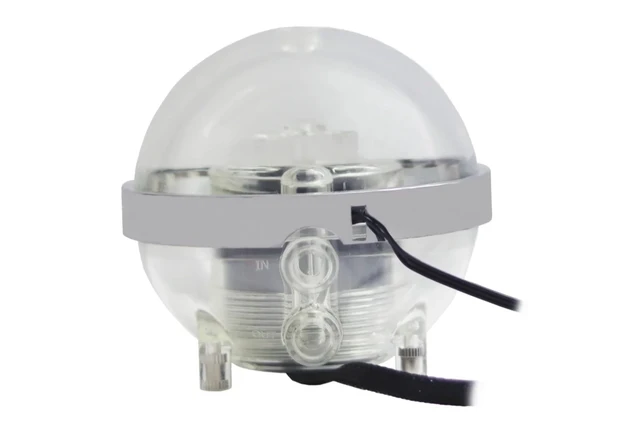

With the pump pre-installed, the loop needs two G1/4 fittings, one for the thread marked IN and one for OUT. The third thread is the fill port on top, which the manual says must be closed with the screw plug, using the screw plug tool. Before mounting the Eisball in the case, set the desired rotational speed on the pump by hand. Fill it with a funnel through the upper fill port: the manual gives the optimal filling height as 10 mm below the opening. After the pump first runs the water level drops, so top it up.

Technical data

• Dimensions (W x D x H): 117.51 x 128 x 128 mm
• Dimensions (W x D x H) with mounting material and decoupler: 130.01 x 128 x 128 mm
• Net weight: 510 g
• Max. operating temperature: 60 °C
• Material Eisball: transparent nylon
• Material screw plug: Brass
• Material pump holder: Acetal
• Material Digital RGB ring: Acetal
• Threads: IN 1x G1/4 / OUT 1x G1/4
• Fillport: 1x G1/4
• Capacity: 700 ml
• Digital RGB connector: 4-Pin
• Voltage Digital RGB: 5 VDC
• Mounting: drillings Eisball feet: 4 x M4x10
• Mounting plate: size of drillings: 8 x M3 / 4 x M4 (for decoupler)
• Mounting plate on radiator or fans: 120 / 140 mm fans or radiators - 4 x M3x5
• Pumps compatibility: VPP655/755 or Laing D5 pumps
• Color Digital RGB Ring: chrome
• Color: transparent

Notes

• Use only clear, transparent water cooling fluids. Alphacool warns that the particles and additives in Pastel liquids can clog and permanently damage radiators, pumps, coolers and hoses, which can void the manufacturer's warranty.
• The manual recommends clear coolants from Alphacool's own production (CKC or Eiswasser Crystal, no UV) or pure distilled or osmosis filtered water.

In the box

• 1x Eisball reservoir
• 1x D5 VPP655 PWM Pump
• 1x screw plug
• 1x screw plug tool
• 1x mounting plate
• 1x velcro mat
• 1x mounting bracket for mounting on fan slots
• 4x decoupler
• 4x M3x5 screws
• 4x M4x5 screws
• 1x Eisball Digital RGB lighting ring
• 1x Digital RGB-Controller
• 1x Digital RGB-Adaptor
