Alphacool Core Distro Plate 280 VPP/D5 - Right Reservoir, G1/4, 360ml, Acrylic, Clear (13833)

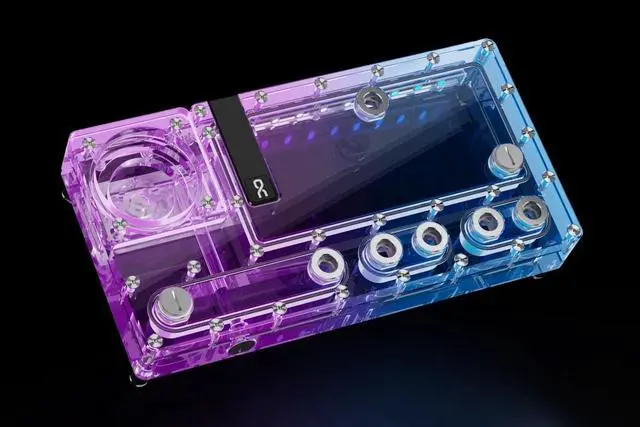

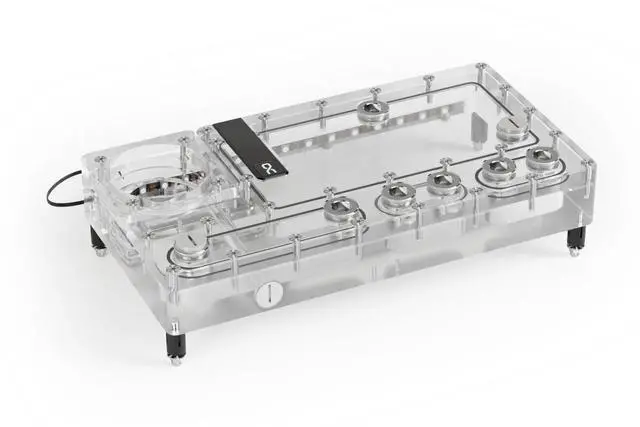

The Alphacool Core Distro Plate 280 VPP/D5 - Right is a 280 mm acrylic distro plate with a volume of 360ml that takes a D5 or VPP pump. No pump is in the box: the same plate with the VPP Apex pump is article 14574. The mirrored layout is the 280 Left.

Properties

• Pump: D5 or VPP, not included
• Capacity: 360ml
• Ports: 9x G1/4
• Size (L x W x H): 280.00 x 145.00 x 42.00 mm without pump
• Material: Acrylic
• Lighting: 12 digital aRGB LEDs, 5V

Core Design

Alphacool calls its Core Distro Plate an absolute must-have for all custom water cooling systems. With its core design it is an absolute eye-catcher in Alphacool's words, and a functional masterpiece too. It says the plate simplifies the construction and planning of complex water loops and offers uncomplicated installation.

The plate is made of what Alphacool calls high-quality acrylic and is fitted with chrome-plated G1/4 brass connections. These have been recessed and deliberately not screwed in, which is meant to minimize the risk of cracks and leaks while increasing stability. Each of the connections is made of two parts with an O-ring, and the parts counter each other when mounted in the acrylic. According to Alphacool this not only ensures absolute leak proofing of each connector but also allows for the clean and functional look of its Core Design series.

What the loop needs

The plate needs a D5 or VPP pump. For pump installation the manual has an O-ring inserted first, then the four M4x22 pump screws tightened with 1.5Nm. Its accessories page says only the pre-assembled version includes the pump. Ports you do not use take the three G1/4 plugs in the box, and a plug tool is included for them. The manual marks the ports: OUT leads from the plate to the component, IN comes back from the component. For the graphics card it says to choose the port closest to your GPU configuration.

Technical data

• Dimensions (L x W x H): 280.00 x 145.00 x 42.00 mm
• Dimensions (L x W x H) with pump: 280.00 x 145.00 x 61.00 mm

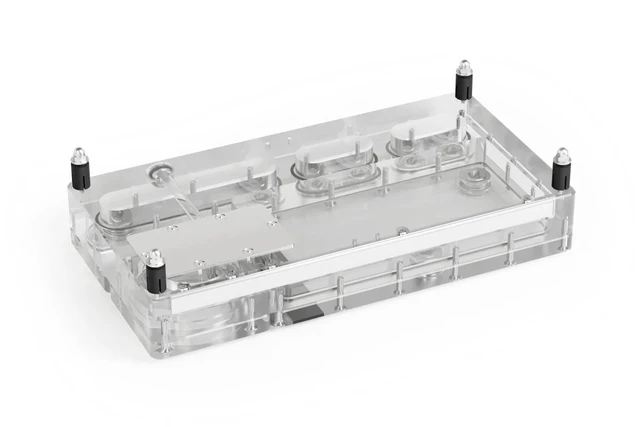

• Dimensions (L x W x H) with push mounting: 280.00 x 145.00 x 72.80 mm
• Dimensions (L x W x H) with pump + push mounting: 280.00 x 145.00 x 88.80 mm
• Material: acrylic
• Volume: 360ml
• Pump compatibility: D5/VPP
• Threads: 9x G1/4 inner thread
• Maximum working temperature: 60 °C
• Pressure tested: 0.8 Bar
• Quantity of digital aRGB LEDs: 12
• Power digital aRGB LEDs: 5V
• Power connector digital aRGB LEDs: 3-Pin JST + 3-Pin 5V
• Weight without pump: 1594g
• Weight with pump: 1870g
• Color: transparent

Notes

• Please note Alphacool's note on application: use the plate only in conjunction with clear, transparent water cooling fluids. The particles and additives in pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. That can result in voiding the manufacturer's warranty as well.

In the box

• 1x 280 Distro Plate
• 1x Allen Key
• 4x M4x22 Pump Screw
• 1x Core Push Mount Set
• 1x Plug tool
• 1x ARGB adapter
• 3x G1/4 Plug
