Alphacool Core 140mm Reservoir with VPP/D5 Pump, G1/4, 130 ml, Acrylic, Clear (13889)

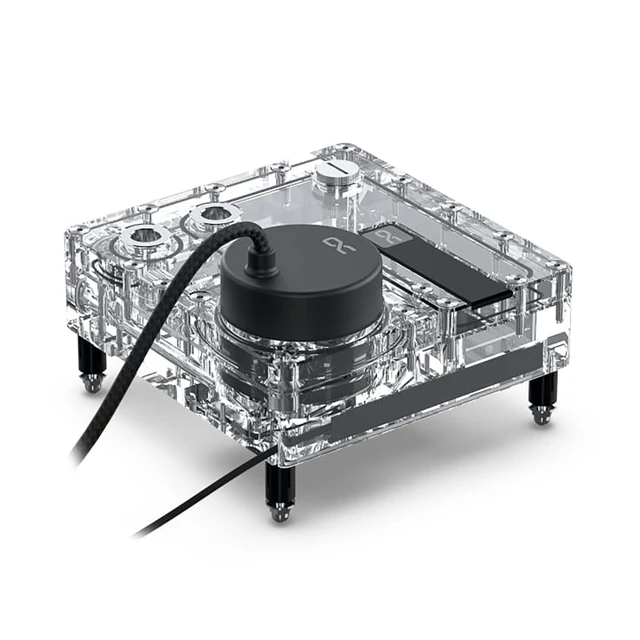

The Alphacool Core 140mm Reservoir with VPP/D5 Pump is a 140.00 x 145.00 x 62.00 mm reservoir with Alphacool's VPP Apex pump pre-installed. It is made entirely of acrylic, mounts on the case or on a radiator and takes a D5 or VPP pump, which is required for operation. The smaller size is the Core 120mm Reservoir with pump.

Properties

• Pump: VPP Apex, 2500 - 4500 RPM
• Capacity: approx. 130ml
• Ports: 3x G1/4, 1x drain port
• Size (L x W x H): 140.00 x 145.00 x 62.00 mm
• Maximum flow rate: 340L/h

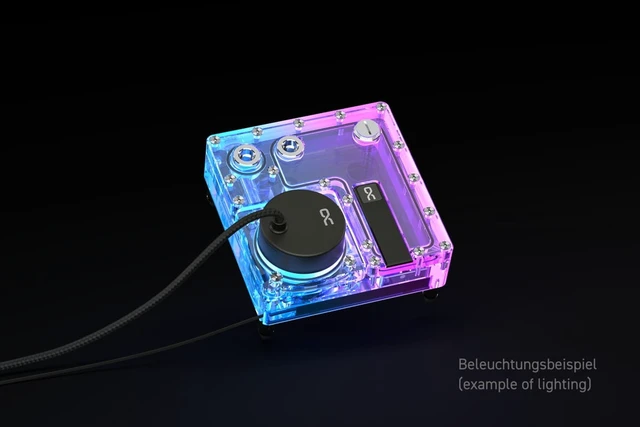

• Lighting: 5 digital aRGB LEDs, 5V

Core Design

The chrome-plated G1/4 connections made of brass are a key element of Alphacool's Core Design series. In this reservoir they are recessed rather than screwed into a thread. That is Alphacool's way of bypassing the problem of possible leaks due to cracking from the direct screwing of connections into the acrylic. Each connection is in two parts, fitted with an O-ring, and the parts counter each other when mounted in the acrylic. According to Alphacool this not only ensures absolute sealing of each connection but also allows for the clear and functional appearance of the series. The manual marks the ports: OUT leads to the component, IN comes back from it.

Easy installation

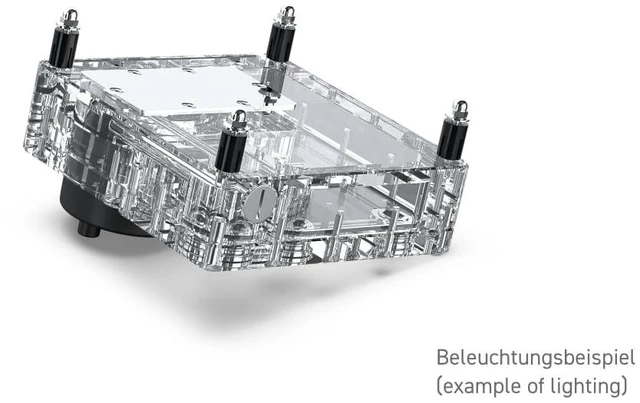

The included Core Push Mounting kit puts the reservoir on the case or on a radiator. The metal pins are attached to the radiator or case panel, the matching female sleeves to the reservoir (see manual). In the next installation step the reservoir is simply pushed onto the pins, tool-free. Alphacool's Push-Mounting allows for a secure fit and for easy disassembly for maintenance or expansion projects. On a radiator, the manual says to use suitable threaded screws.

Technical data

• Dimensions (L x W x H): 140.00 x 145.00 x 62.00 mm
• Volume (reservoir): approx. 130ml
• Pump compatibility: D5/VPP
• Threads: 3x G1/4 inner thread / 1x drain port
• Maximum working temperature: 60 °C
• Pressure tested: 0.8 Bar
• Quantity digital aRGB LEDs: 5
• Voltage digital aRGB LEDs: 5V
• Power connection digital aRGB LEDs: 3-Pin JST + 3-Pin 5V
• Weight: 1120g
• Color: transparent

Technical data pump

• Material pump: synthetic material
• Material pump cover: aluminum
• Material axle: ceramics
• Connections: 4-Pin PWM | SATA
• Rotational speed: 2500 - 4500 RPM
• Cable lengths: 4-Pin PWM - 48 cm | SATA - 48 cm
• Operating voltage: 8-13V DC / 14W IP32
• Starting voltage: 12V DC
• Maximum pumping head: 4.25 m
• Maximum flow rate: 340L/h
• Maximum working temperature: 60 °C
• Color: black

Notes

• Use only clear, transparent water cooling fluids. Alphacool warns that the particles and additives in pastel liquids can clog and permanently damage radiators, pumps, coolers and hoses, which can void the manufacturer's warranty.

In the box

• 1x Core 140mm Reservoir
• 1x VPP Apex Pump
• 1x O-Ring
• 1x Allen Key
• 4x M4x22 Pump Screw
• 1x Core Push Mount Set
• 1x Plug tool
• 1x ARGB Adapter
• 2x G1/4 Plug
