    Alphacool NexXxoS HPE-30 Full Copper 240mm Radiator, 120mm, G1/4, 20mm, Black (14376)

    • 140mm
    • 240mm
    • 280mm
    • 560mm
    • Alphacool has been dominating the market with the NexXxoS Full Copper radiator series for more than a decade. The extensive portfolio of radiator variants is unique in the world. Just like our manufacturing process, which enables us to manufacture
    • Alphacool has been dominating the market with the NexXxoS Full Copper radiator series for more than a decade. The extensive portfolio of radiator variants is unique in the world. Just like our manufacturing process, which enables us to manufacture al
    • Datasheet (EN)
    • Fan compatibility: 120mm
    • Overall dimensions: 270 x 120 x 20mm
    +
    +
    Overview
    Specs
    Reviews

    Any questions? Ask CelesteSM will help you find out quickly.

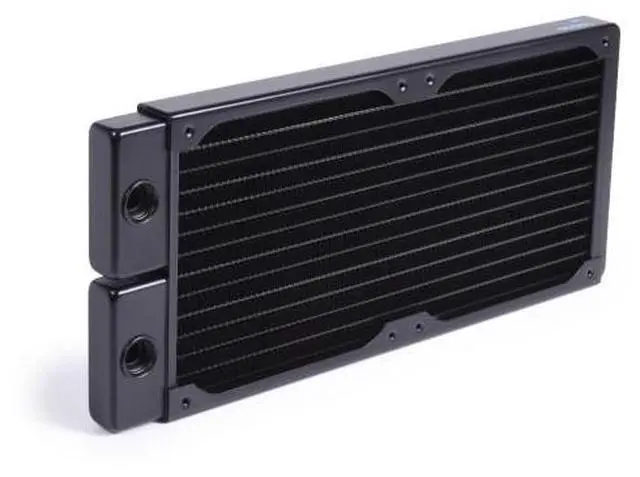

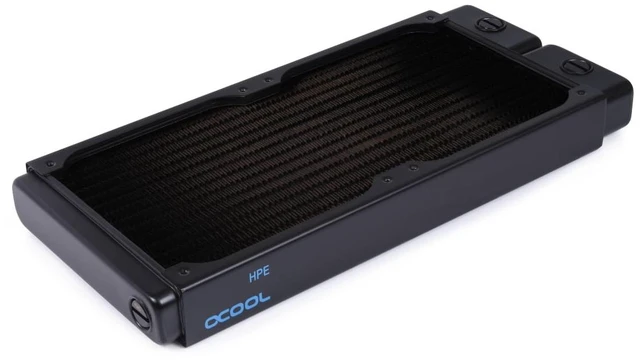

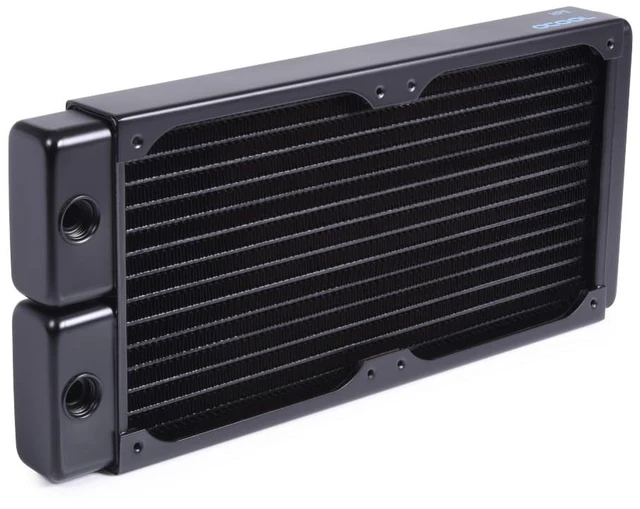

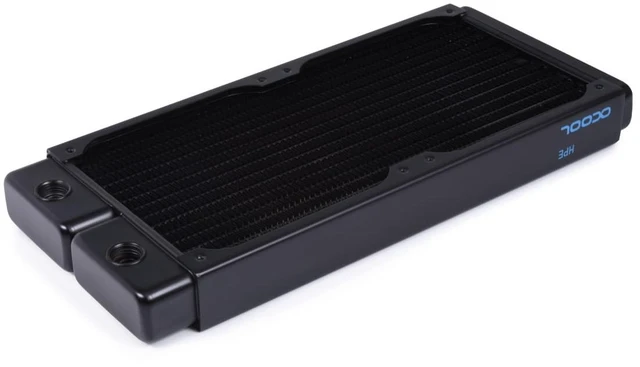

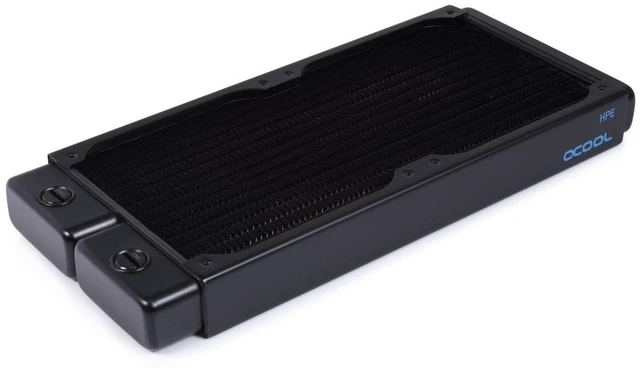

    The Alphacool NexXxoS HPE-30 Full Copper 240mm Radiator is a 240 mm radiator for two 120 mm fans on one side, or four with fans on both sides, and it is 30 mm thick. The next thickness up in the same size is the HPE-45 Full Copper 240mm radiator.

    Properties

    • Fans: 2x 120 mm one-sided / 4x both-sided
    • Size (L x W x H): 271.5 x 124 x 30 mm (+/- 3%)
    • Thickness: 30 mm
    • Ports: 5x G1/4 (1x fill and drain port included)
    • Material: copper fins, pre-chambers and channels, brass threads, stainless steel outer housing
    • Fin density: 18 FPI

    NexXxoS Full Copper

    Alphacool says it has been dominating the market with the NexXxoS Full Copper radiator series for more than a decade, and calls its extensive portfolio of radiator variants unique in the world. It says the same of what it describes as "our manufacturing process, which enables us to manufacture all water-carrying parts and the cooling fins from pure copper". Just like every NexXxoS, the radiator thus achieves what Alphacool claims is the highest thermal conductivity of all radiators on the market. Alphacool credits the series with incomparable performance: the radiators can easily dissipate even extremely high waste heat. By its account they have become indispensable in many areas of the cooling industry.

    What the loop needs

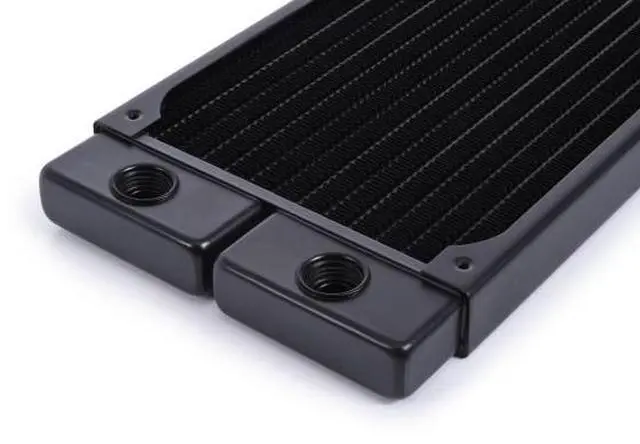

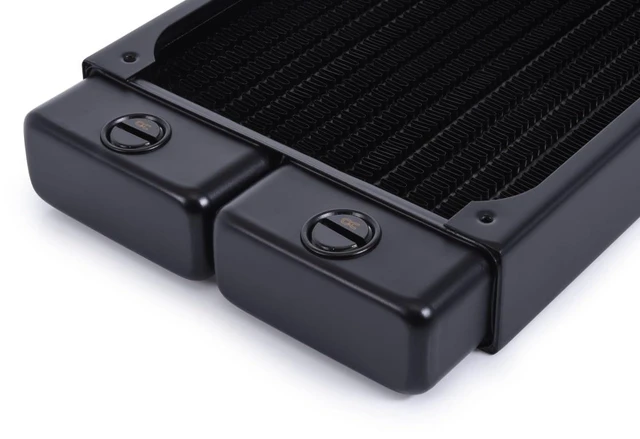

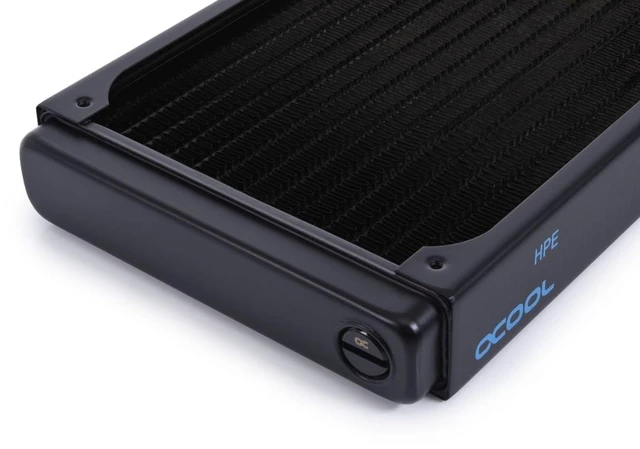

    Water enters and leaves via the IN or OUT connections, which have G1/4 thread and sit in the area of the pre-chambers (antechambers). The radiator has four of them and a loop uses two, so the radiator takes two fittings. On the opposite side there is a fill and drain port that can be used to fill and vent or drain the water circuit. These are the connection options, and thread length in every port is 5 mm at most.

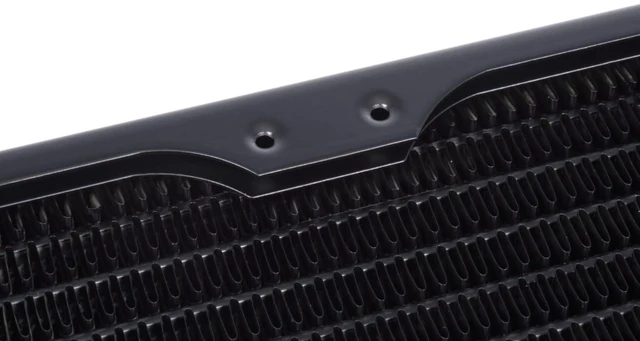

    The radiator takes 120 mm fans on M3 threads, and the possible fan assignment is two on one side or four on both sides. All screws for mounting in the housing and for mounting the fans are included with the radiator: eight M3x5 case mounting screws and eight M3x30 fan screws. Alphacool says additional screws are usually not required.

    Technical data

    • L x W x H: 271.5 x 124 x 30 mm (+/- 3%)
    • Quantity of cooling channels: 14
    • Material cooling fins, pre-chambers & channels: copper
    • Material threads: brass
    • Material outer housing: stainless steel
    • Threads: 5x G1/4 (1x fill/drain port included, max. 5 mm thread length)
    • Possible fan size: 120 mm
    • Possible fan assembly: 2x one-sided / 4x both-sided
    • Thread size fan mounting: M3
    • Pressure tested: 0.8 Bar
    • Maximum working temperature: 60 °C
    • Fin density: 18 FPI
    • Weight: 601 g
    • Color: black

    Notes

    • Use only clear, transparent water cooling fluids. Alphacool warns that the particles and additives in pastel liquids can clog and permanently damage radiators, pumps, coolers and hoses, which can void the manufacturer's warranty.

    In the box

    • 1x Alphacool NexXxoS HPE-30 Full Copper 240mm Radiator, black
    • 8x M3x5 case mounting screws
    • 8x M3x30 fan screws
    • 1x Allen key
    • 1x screw plug tool
