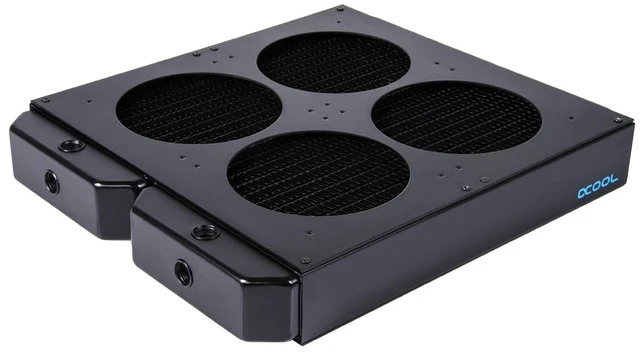

Alphacool NexXxoS XT45 Full Copper Quad 480/560 Radiator, 120mm, G1/4, 45mm (14396)

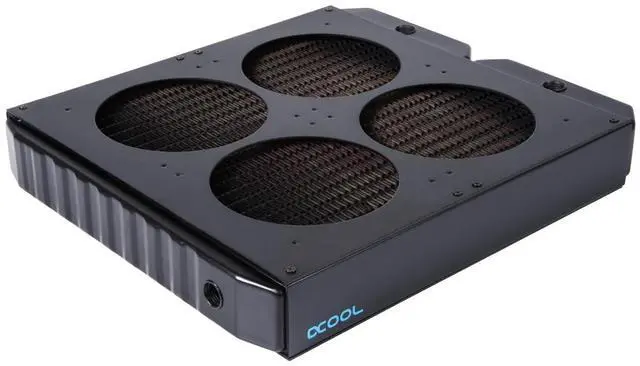

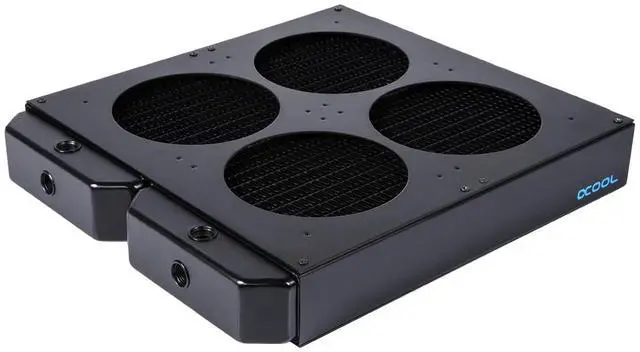

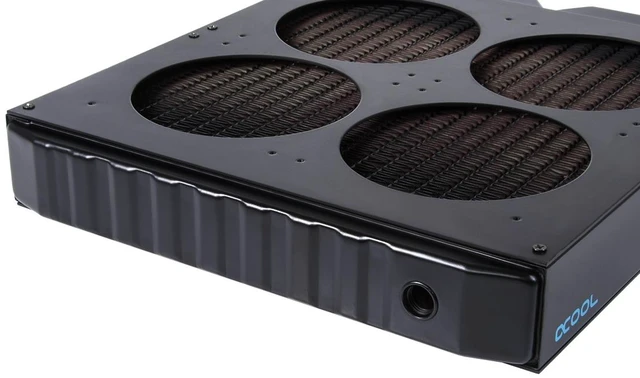

The Alphacool NexXxoS XT45 Full Copper Quad 480/560 Radiator is a 480 mm / 560 mm radiator for four 120 mm or 140 mm fans on one side, with a cooling surface 45 mm thick. It measures 322 x 280 x 49 mm overall and has seven G1/4 threads and M3 fan threads.

Properties

• Fan size: 120 or 140 mm, 4x one-sided
• Size (L x W x H): 322 x 280 x 49 mm
• Cooling surface: 280 x 280 x 45 mm

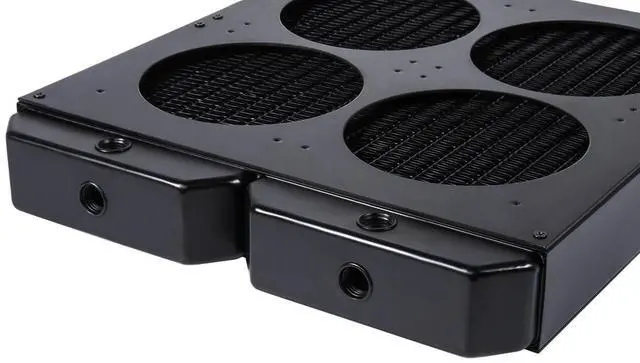

• Threads: 7 x G1/4 for fittings, M3 for fan mounting
• Material: Copper cooling fins, cooling channels and prechamber, stainless steel outer housing
• Fins per Inch: 12

Would you like a little more?

That is the question Alphacool puts in front of the Quad 480 mm / 560 mm. Its figure is 280 x 280 x 45 mm of pure cooling surface for four 120/140mm fans single sided. The whole radiator comes to L x W x H: 32.2 x 28 x 4.9 cm.

Make No Compromises, Use Copper.

As usual, Alphacool also uses pure copper for this radiator: the end chambers, water channels and cooling fins are all made of it. Alphacool calls that a unique selling point worldwide. As a result, it says, its radiators have been among the most popular and best on the market for many years. In its words they are providing "the perfect foundation for every water cooling system".

What the loop needs

A loop uses two of the seven threads, so it takes two fittings, and the five stop plugs in the box close the rest. The radiator takes 120 mm fans or 140 mm fans, and the box holds one fan mounting bracket for each of the two sizes. For the M3 fan mounting thread it also holds 16 M3x30 screws and 16 M3 washers.

Technical data radiator

• L x W x H: 322 x 280 x 49 mm
• Quantity of cooling channels: 24
• Material cooling fins, pre-chambers & channels: copper
• Material threads: brass
• Material outer housing: stainless steel
• Threads: 7x G1/4
• Possible fan size: 120mm or 140mm
• Possible fan assembly: 4x one-sided
• Thread size fan mounting: M3
• Pressure tested: 0.8 Bar
• Maximum working temperature: 60 °C
• Fin density: 12 FPI
• Weight: 2370g
• Color: black

Notes

• Use the radiator only with clear, transparent water cooling fluids. Alphacool warns that the particles and additives in pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. It adds that this can void the manufacturer's warranty as well.

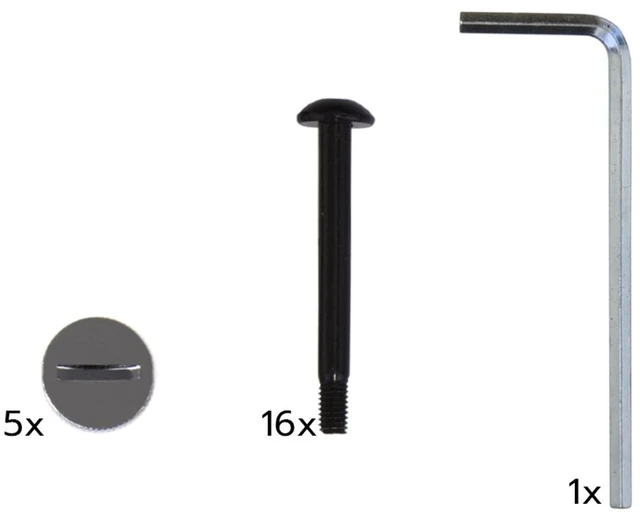

In the box

• 1x Radiator
• 16x M3x30 Screws
• 16x M3 Washers
• 1x Allen Key
• 1x plug tool
• 5x stop plug
• 1x fan mounting bracket for 120mm fan 284 x 276 mm
• 1x fan mounting bracket for 140mm fan 284 x 276 mm
