Alphacool Apex Distroplate Dark Base Pro 901 with Apex Pump - Black Reservoir, G1/4, 433ml, Acrylic (14630)

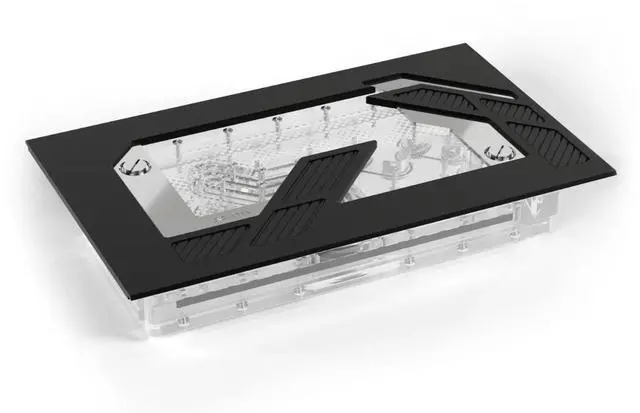

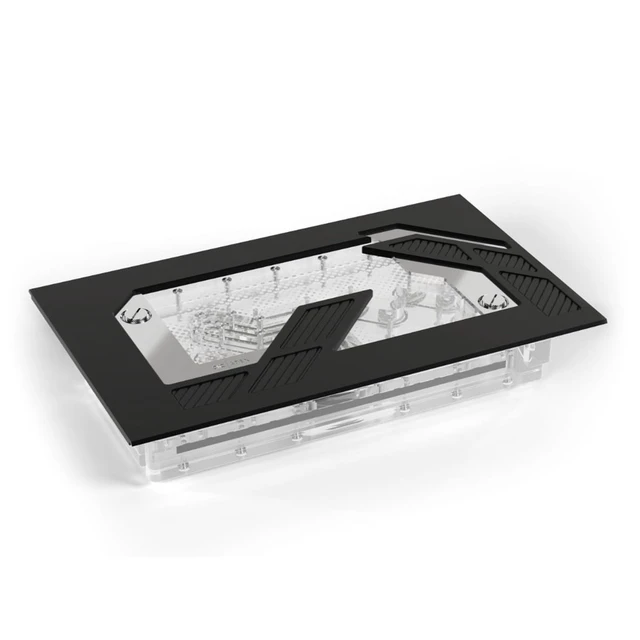

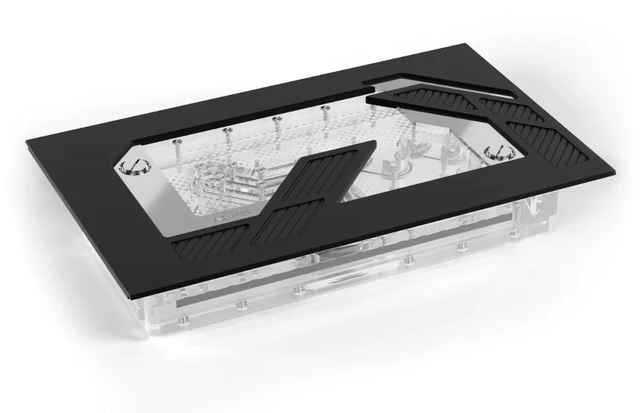

The Alphacool Apex Distroplate Dark Base Pro 901 with Apex Pump - Black is a black distro plate with a 433ml reservoir and Alphacool's VPP Apex PWM pump in the box. It replaces the front cover of the Dark Base Pro 901 case. Alphacool's note says the plate is exclusively compatible with this case. The plate without a pump takes a VPP/D5 pump of your own, and the version with pump also comes in white.

Properties

• Pump: VPP Apex, 2500 - 4500 RPM, included
• Capacity: 433ml
• Ports: 14x G1/4
• Size (L x W x H): 365.10 x 222 x 86.06 mm
• Maximum flow rate: 340L/h

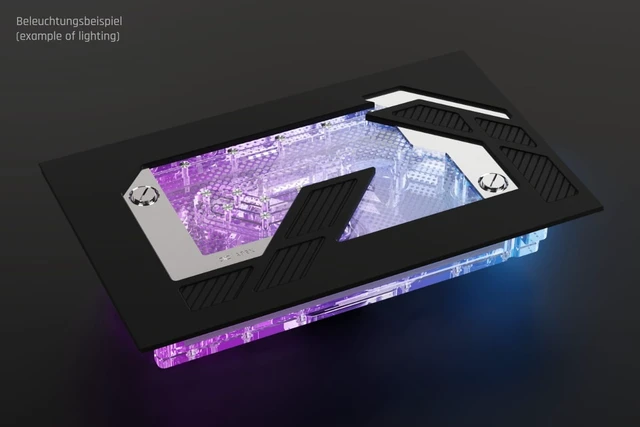

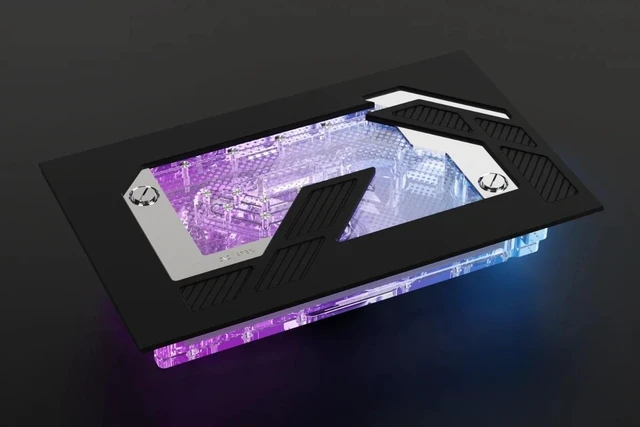

• Lighting: 16 digital aRGB LEDs, 5V

Made for the Dark Base Pro 901

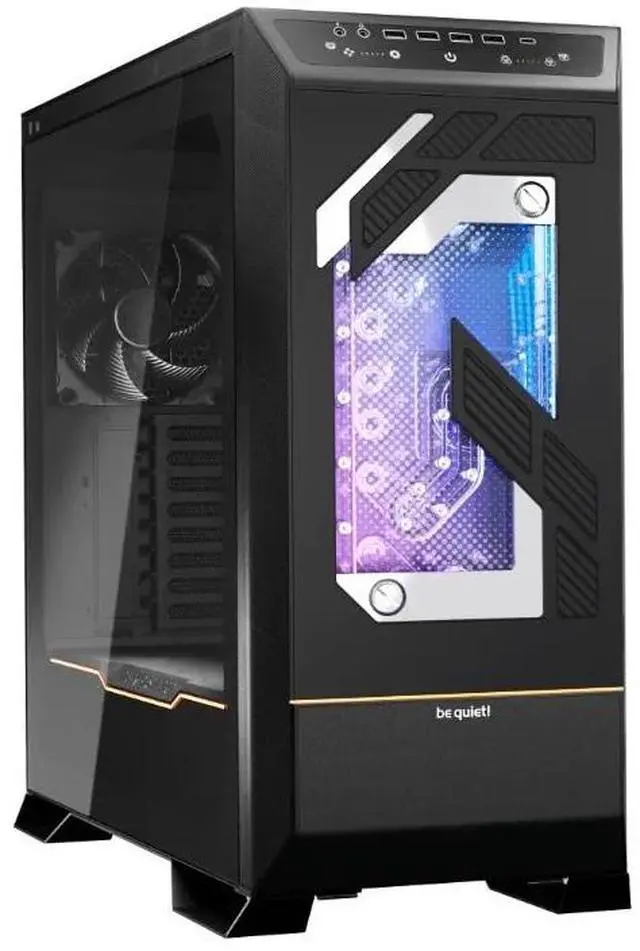

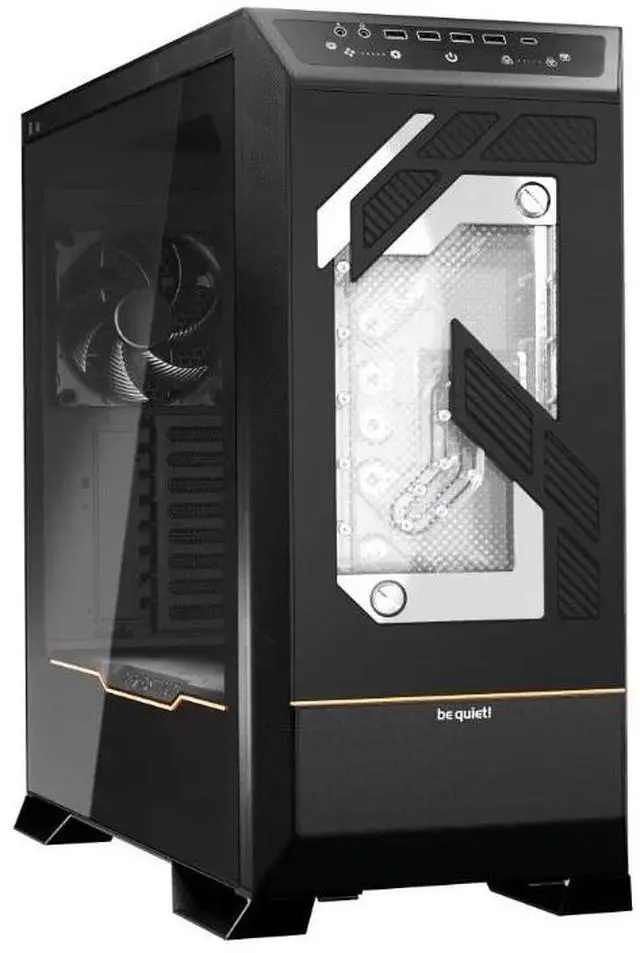

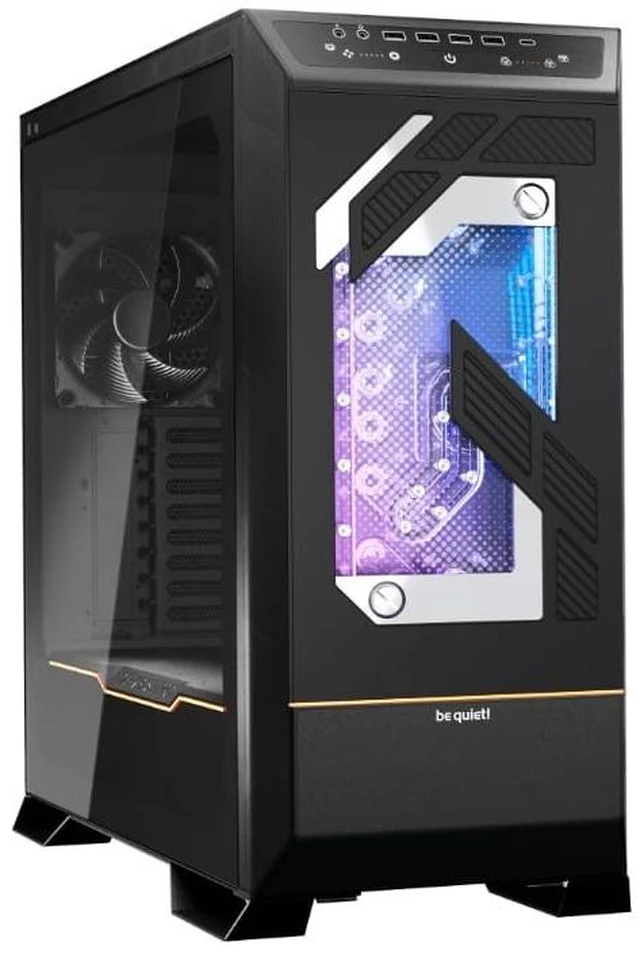

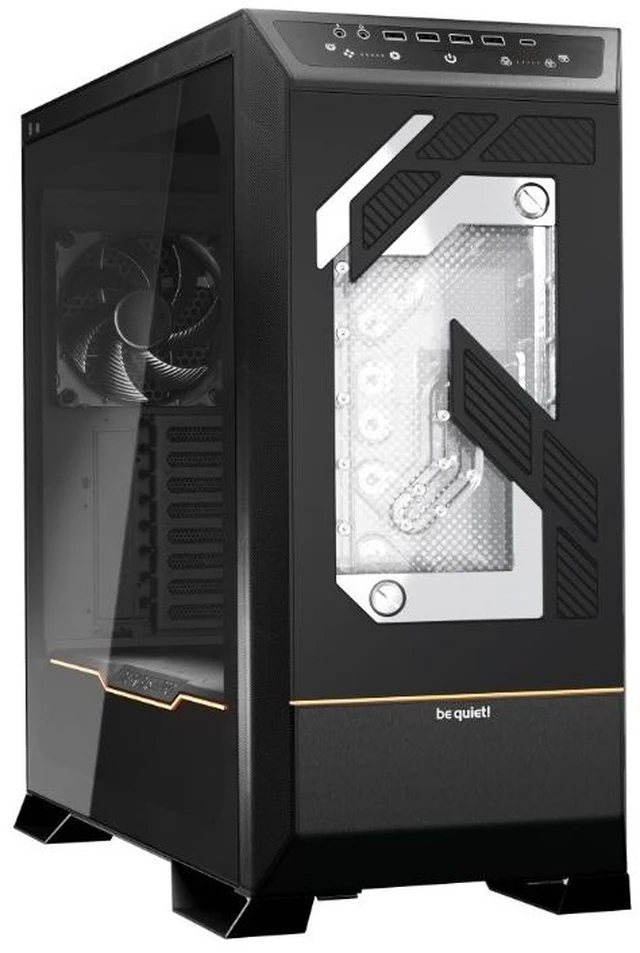

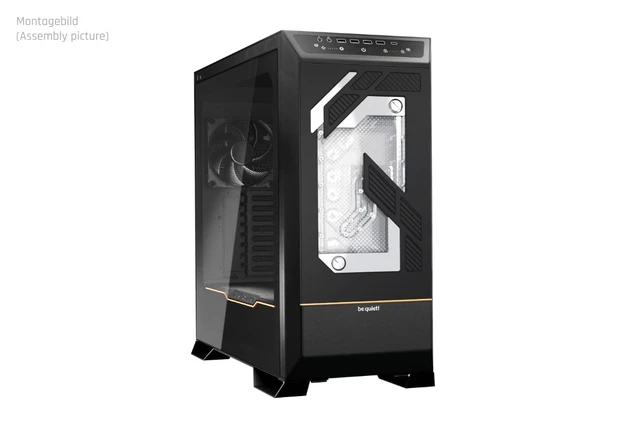

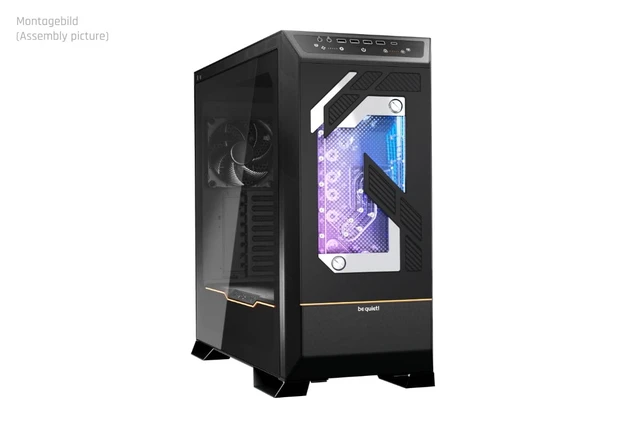

Alphacool calls the plate the ultimate visual upgrade for the Dark Base Pro 901, one that takes any custom water cooling setup to the next level. It also calls it a must-have for those who want to combine top performance with premium design. Specifically designed for this case, the plate goes in place of the front cover and can be securely and easily mounted using the included M4x16 screws and mounting brackets. The manual's steps are short: remove the case front and the front cover, insert the mounting brackets and screw the plate to the front of the case. The plate is available in two variants that differ only in color. Both the black and white versions, Alphacool says, perfectly match the case colors and blend seamlessly into the design.

What the loop needs

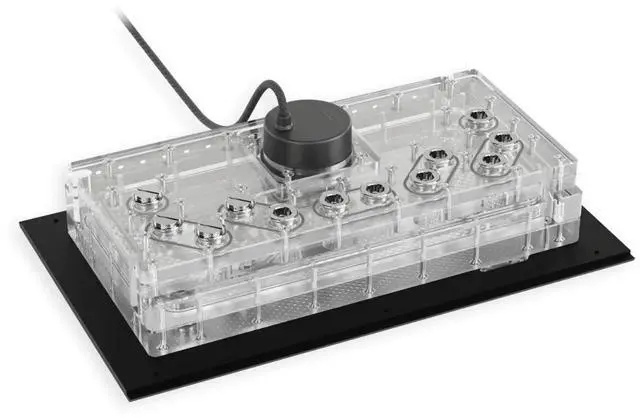

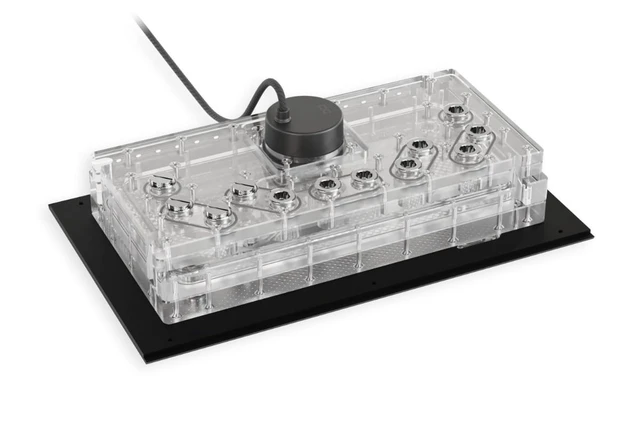

The pump is part of this version: the manual covers both and notes that only the pre-assembled version includes the pump. It connects by 4-Pin PWM and SATA. Every port in use takes a G1/4 fitting, and the ports left over are closed with the eight G1/4 plugs in the box. The manual marks the ports: OUT leads from the plate to the component, IN comes back from the component.

Technical Data

• Dimensions (L x W x H): 365.10 x 222 x 86.06 mm
• Material: Acrylic
• Volume: 433ml
• Pump compatibility: VPP/D5
• Threads: 14x G1/4
• Maximum working temperature: 60 °C
• Pressure tested: 0.8 Bar
• Quantity digital aRGB LEDs: 16
• Power digital aRGB LEDs: 5V
• Power connection digital aRGB LEDs: 3-pin JST + 3-pin 5V
• Weight: 3600g
• Color: black

Technical data pump

• Material pump: synthetic material
• Material pump cover: aluminum
• Material axle: ceramics
• Connections: 4-Pin PWM | SATA
• Rotational speed: 2500 - 4500 RPM
• Cable lengths: 4-Pin PWM - 48 cm | SATA - 48 cm
• Operating voltage: 8-13V DC / 14W IP32
• Starting voltage: 12V DC
• Maximum pumping head: 4.25 m
• Maximum flow rate: 340L/h
• Maximum working temperature: 60 °C
• Color: black

Notes

• Use only clear, transparent water cooling fluids. Alphacool warns that the particles and additives in pastel liquids can clog and permanently damage radiators, pumps, coolers and hoses, which can void the manufacturer's warranty.

In the box

• 1x Apex Distro Plate
• 1x VPP-D5 Pump
• 6x M4x16 Screw
• 6x Mounting Screw Bracket
• 8x G1/4 Plug
• 1x Plug tool
• 1x ARGB Adapter
