Alphacool Apex Distroplate Dark Base Pro 901 with Apex Pump - White Reservoir, G1/4, 433ml, Acrylic (14658)

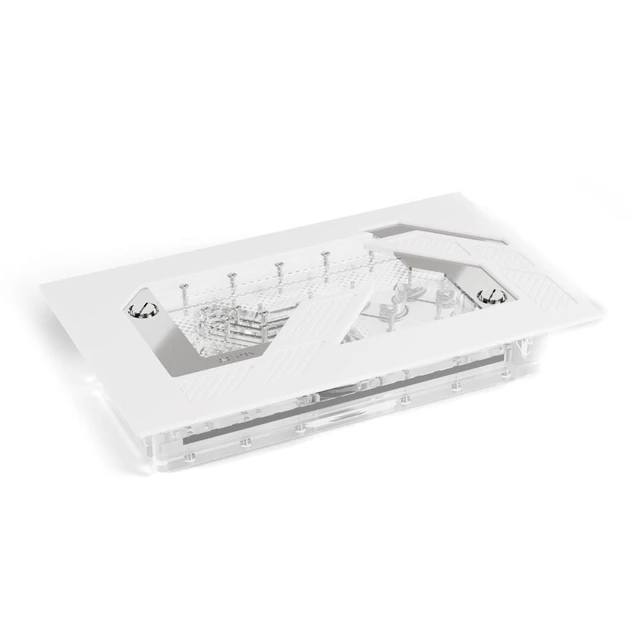

The Alphacool Apex Distroplate Dark Base Pro 901 with Apex Pump - White is a 433ml distro plate for the Dark Base Pro 901 case with a VPP Apex pump included. It replaces the front cover of that case and takes a VPP or D5 pump. The Apex Distro Plate for the Dark Base Pro 901 is exclusively compatible with this case.

Properties

• Pump: VPP Apex included, 2500 - 4500 RPM
• Capacity: 433ml
• Ports: 14x G1/4
• Size (L x W x H): 365.10 x 222 x 86.06 mm
• Maximum flow rate: 340L/h

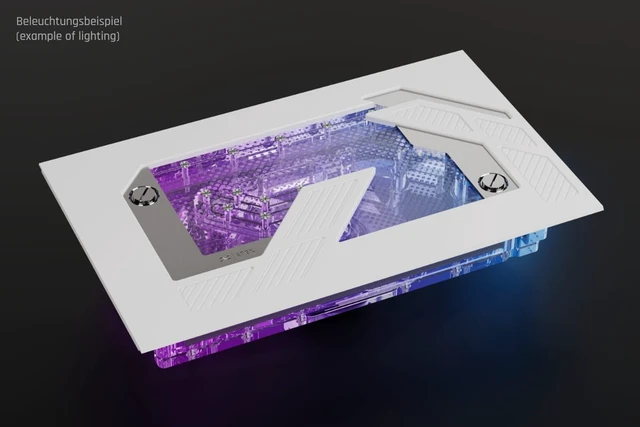

• Lighting: 16 digital aRGB LEDs, 5V

Made for one case

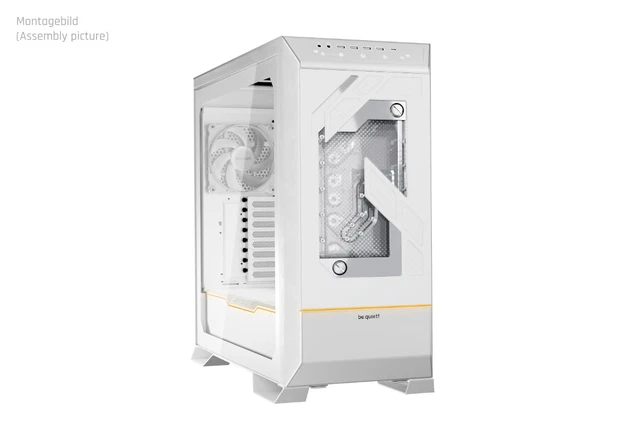

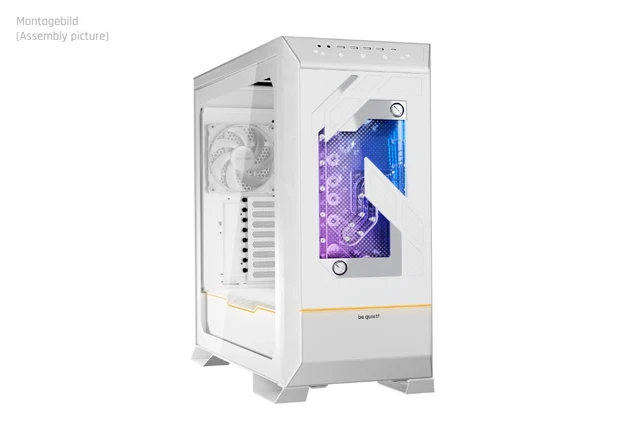

Alphacool calls this plate the ultimate visual upgrade for the Dark Base Pro 901, specifically designed for it. In its words the plate takes any custom water cooling setup to the next level. It also calls it a must-have for those who want to combine top performance with premium design. The plate is available in two variants that differ only in color, black and white. The black one is the Apex Distroplate Dark Base Pro 901 with Apex Pump - Black. Alphacool says both versions perfectly match the case colors of the Dark Base Pro 901 and blend seamlessly into the design.

What the loop needs

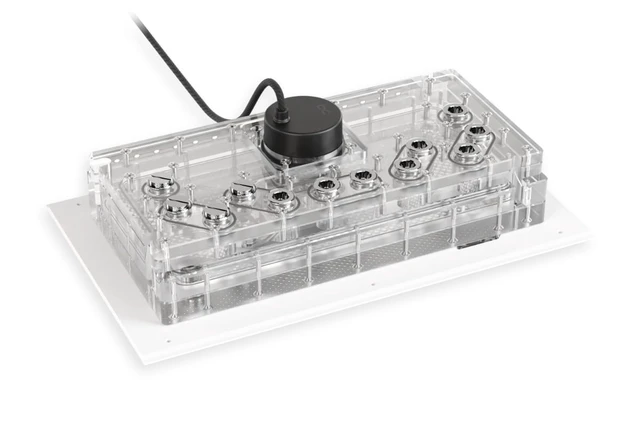

The pump is in the box: the manual notes that only the pre-assembled version includes it, and this is that version. The plate alone, for a pump you already own, is the Apex Distroplate Dark Base Pro 901 VPP/D5 - White. Of the 14 G1/4 ports, the loop uses the ones its components need, each with a fitting, and the eight plugs in the box close others. The pump cable has a 4-Pin PWM and a SATA connection.

Technical Data

• Dimensions (L x W x H): 365.10 x 222 x 86.06 mm
• Material: Acryl
• Volume: 433ml
• Pump compatibility: VPP/D5
• Threads: 14x G1/4
• Maximum working temperature: 60 °C
• Pressure tested: 0.8 Bar
• Quantity digital aRGB LEDs: 16
• Power digital aRGB LEDs: 5V
• Power connection digital aRGB LEDs: 3-pin JST + 3-pin 5V
• Weight: 3600g
• Color: white

Technical data pump

• Material pump: synthetic material
• Material pump cover: aluminum
• Material axle: ceramics
• Connections: 4-Pin PWM | SATA
• Rotational speed: 2500 - 4500 RPM
• Cable lengths: 4-Pin PWM - 48 cm | SATA - 48 cm
• Operating voltage: 8-13V DC / 14W IP32
• Starting voltage: 12V DC
• Maximum pumping head: 4.25 m
• Maximum flow rate: 340L/h
• Maximum working temperature: 60 °C
• Color: black

Notes

• Note on application from Alphacool: use only clear, transparent water cooling fluids. It warns that the particles and additives in pastel liquids can clog and permanently damage radiators, pumps, coolers and hoses, which can void the manufacturer's warranty.

In the box

• 1x Apex Distro Plate
• 1x VPP-D5 Pump
• 6x M4x16 Screw
• 6x Mounting Screw Bracket
• 8x G1/4 Plug
• 1x Plug tool
• 1x ARGB Adapter
