Alphacool Eiszeit 2000 Chiller - Black 110-120V / 60hz (5100104)

The Alphacool Eiszeit is a compressor cooler with a maximum cooling power of 1500W. Unlike most so-called Chillers or
circulating coolers, the Eiszeit has a high-performance integrated pump.

With the Eiszeit, you get a compressor cooler designed by Alphacool. With it, you can keep your system or more than one
system at a temperature you pre-set, automatically regulated for you. The Eiszeit has a maximum cooling power of 1500W.

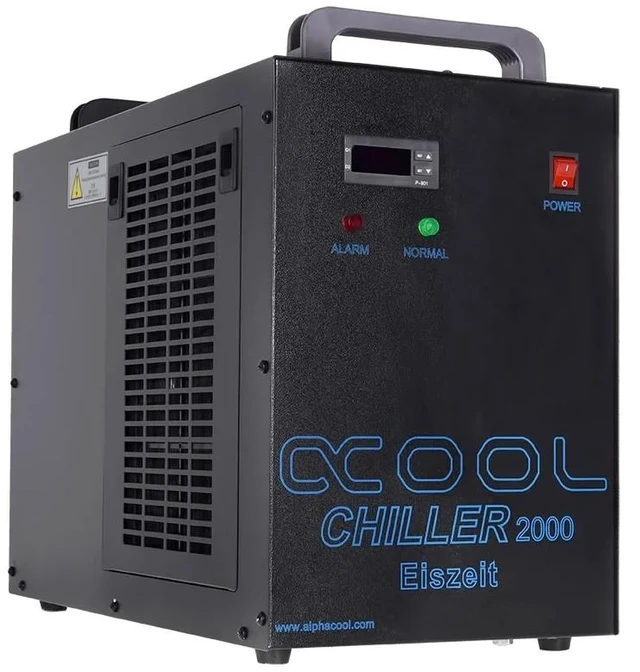

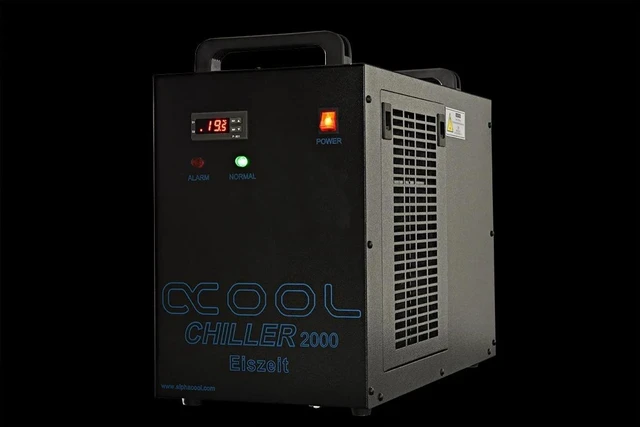

Entering your settings is easily done through the Eiszeits display, and you can set the temperature in precise increments of 0.3°
Kelvin. If necessary, you can reach temperatures far below room temperature.

Another highlight is the integrated high-performance pump with a maximum head of 10m. This means a separate pump is no
longer necessary. If the pump performance proves to be too strong, a restrictor can be integrated into the cooling loop via a

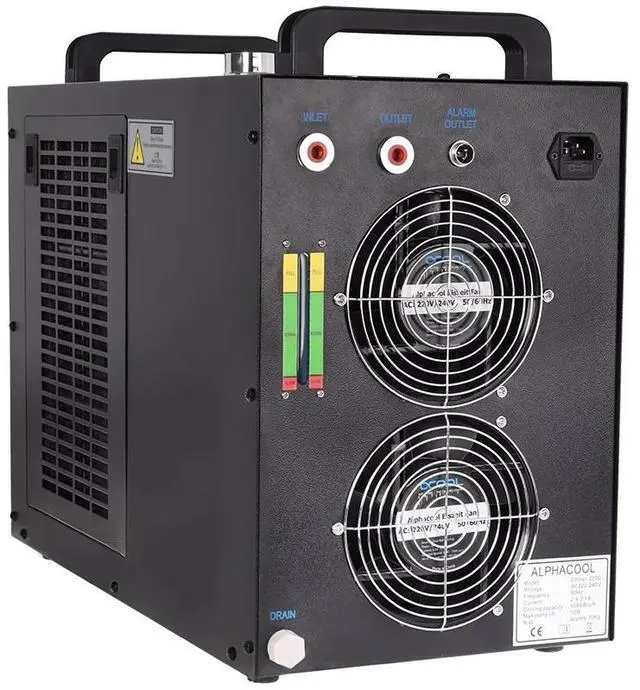

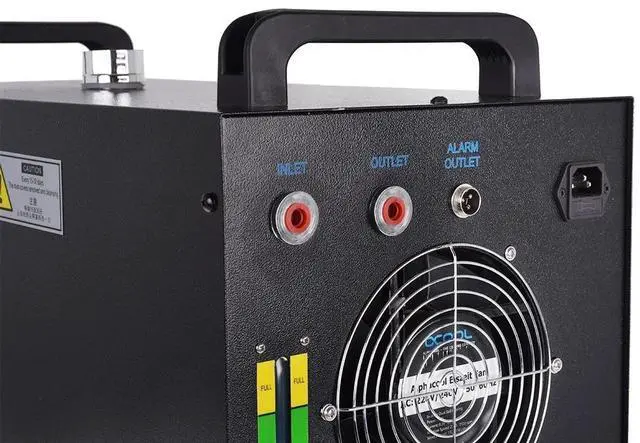

ball valve or check valve. The G1/4 connectors can fit nearly all standard water cooling attachments. This gives the Eiszeit out-
standing compatibility compared to other current products like CPU coolers and graphics card coolers.

The Eiszeit also has security functions, such as surge protection for the compressor and an alarm indicating the flow rate is too
low or the temperature is too high.

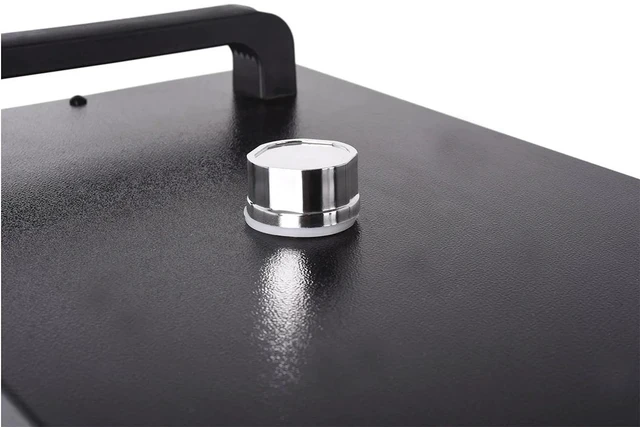

Using the Eiszeit is relatively simple. After connecting it to the cooling loop, the loop needs to be filled via the fill port on top of
the Eiszeit. The integrated reservoir holds 9L; additionally, you will need enough coolant to fill the complete loop.

Performance calcuation

Water outlet temperature (Fw)
C°
8
10
15
20
25
30
35
40
factor
0,69
0,77
1
1,22
1,44
1,64
1,82
2
Ambient temperature (Fa)
C°
15
20
25
32
35
40
45
50
factor
1,26
1,2
1,11
1
0,95
0,87
0,8
0,72
Percentage of glycol in coolant (Fg)
%
0
10
15
20
25
30
35
40
factor
1
0,96
0,95
0,94
0,93
0,91
0,9
0,88

Formular: 1,08kW * Fw * Fa * Fg

Example: A chiller delivers 1.08kW cooling capacity. Water outlet temperature (Fw) is 30 C°, Ambient temperature (Fa) is 40 C° and Percentage of glycol (Fg) is 30 %.

Calculation: 1,08kW * 1,64 * 0,87 * 0,91 = 1,4kW

Please note: In the event of a return (RMA), the product must be shipped exclusively via freight carrier. Using a parcel delivery service for the return will result in the loss of warranty claims.

Technical data
Dimensions (L x W x H)
560 x 280 x 470 mm
Voltage
110-120V
Power consumption
660W
Compressor power
0,49/0,57KW (0,66/0,77HP)
Cooling capacity
1,41/1,70kw
Refrigerant
R1234YF
Refrigerant charge
380g
Pump capacity
0,03KW
Pump Max. Delivery head
10 m
Pump max flow rate
600 L/h
Liquid tank filling quantity
9L
Filling opening
1x oben
Threads
G 1/4 (1x IN / 1x OUT) hinten
Noise
65 db(A)
Adjustable minimum temperature
20°C
Temperature accuracy
+/- 0,3°C
Reservoir
Polyprobylene
Internal soft hoses
Silikon
Internal hard hoses
PU
IP rating
IP44
Recommended operating temperature (in degrees Celsius)
5°C ~ 40°C
Recommended storage temperature (in degrees Celsius)
0°C ~ 40°C
Color
black
