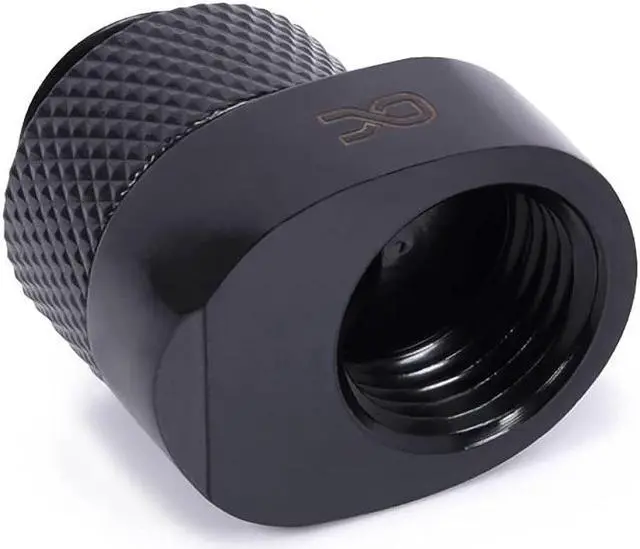

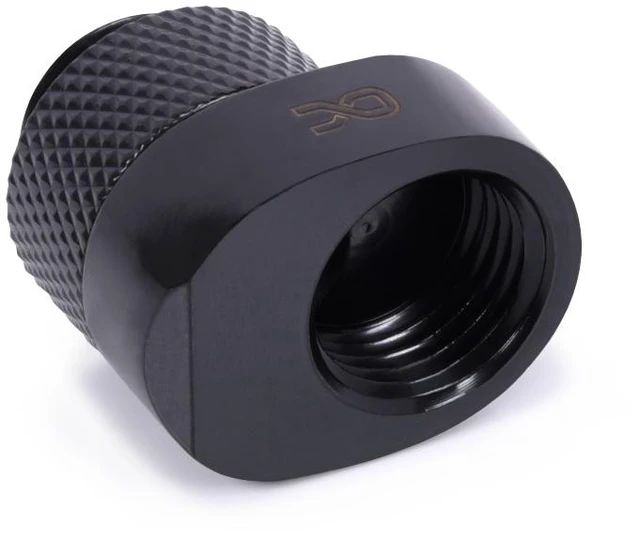

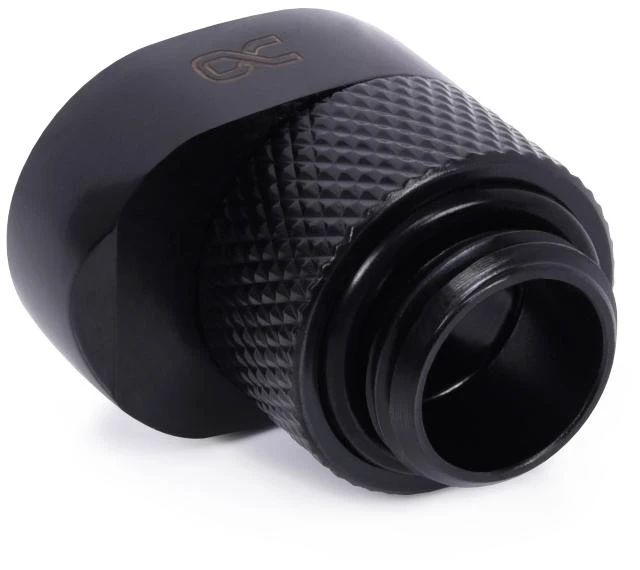

Alphacool Eiszapfen 8mm Offset Fitting Rotatable G1/4 OT to G1/4 IT - Black, Brass (17604)

The Alphacool Eiszapfen 8mm Offset Fitting Rotatable G1/4 OT to G1/4 IT - Black is a rotatable 8 mm offset fitting in black brass, one fitting per pack. It comes with one external G1/4 thread (OT) and one internal G1/4 thread (IT). It screws between two G1/4 connections and has no tube connection of its own.

Properties

• Thread: G1/4 external (OT) and G1/4 internal (IT), each 5 mm
• Offset: 8 mm, rotates 360°
• Size (L x W x H): 24 x 22.5 x 18.5 mm
• Material: Brass
• Color: Black
• Pieces in the pack: 1

Integration made easy

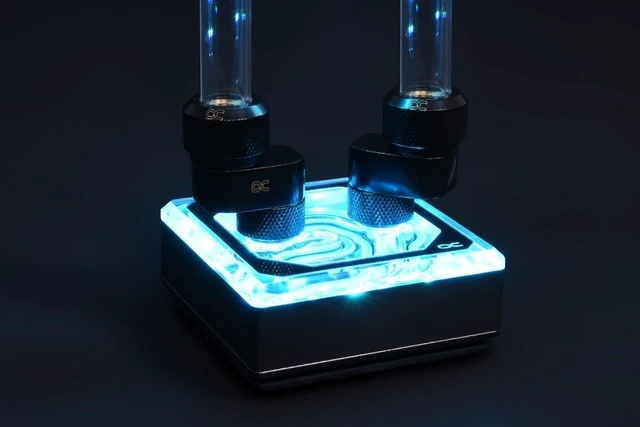

Alphacool says the Eiszapfen offset piece can be easily tied into any water circuit. It is very compact, and thanks to its internal and external G1/4 threads it can be integrated into any water cooling system. The piece is simply screwed onto the corresponding G1/4 connections at the desired position in the circuit.

Design

The threads are short: the internal one is 5 mm deep and the external one 5 mm high, respectively, thus enabling the very compact design. The offset piece can also be rotated 360°. That provides additional flexibility for integration, which Alphacool says holds even in the tightest cases.

Colored O-rings

The standard O-ring is black. In addition to it, 3 more O-rings in red, yellow and blue are included.

What a run needs

Alphacool gives the compatibility as G1/4 OT/IT threads. The external thread goes into a G1/4 port, and the internal thread takes any G1/4 male thread, for example one of our fittings.

Technical data

• L x W x H: 24 x 22.5 x 18.5 mm
• Material: Brass
• Offset: 8 mm
• Threads: G1/4 IT, G1/4 OT
• Thread depth: 5 mm
• Thread height: 5 mm
• Weight: 28 g
• Color: Black

In the box

• 1x Alphacool Eiszapfen 8mm off set fitting rotatable G1/4 OT to G1/4 IT, black
• 3x O-ring (yellow, blue & red)
