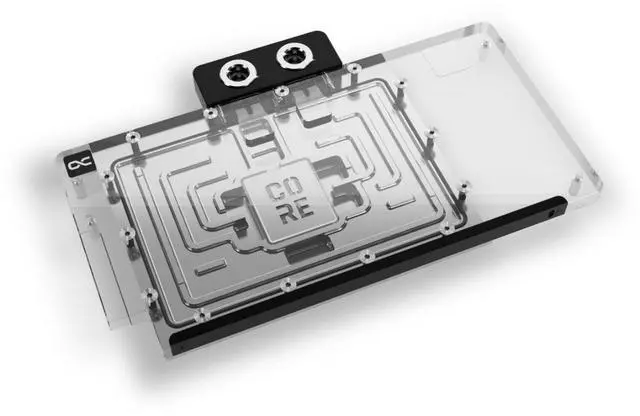

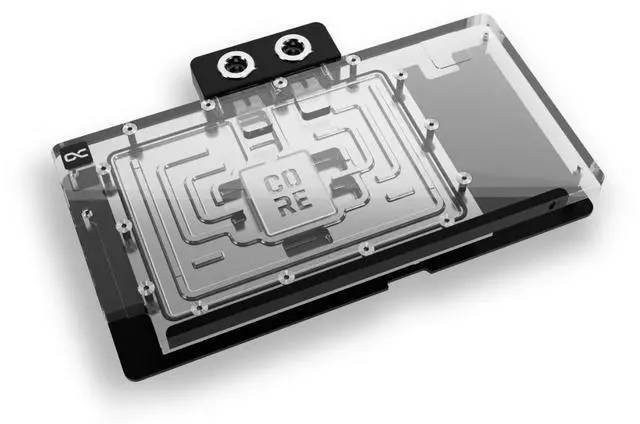

Alphacool Core Geforce RTX 5080 ROG Astral with Backplate (10267)

Alphacool presents the new graphics card water coolers for the latest Nvidia Geforce RTX generation. They are part of the Core product series and combine the highest quality with exceptional performance. Thanks to an optimized technical design, these GPU coolers offer outstanding cooling performance.

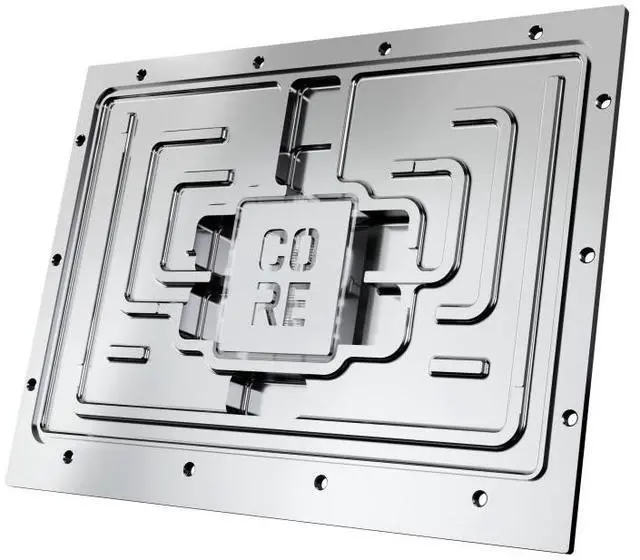

In the center of the cooler is the copper cooler milled from a single piece, complemented by a precisely manufactured brass connection terminal with a nylon cover. Chrome plating makes the copper cooler more resistant and ensures a smoother and brighter surface than conventional nickel plating.

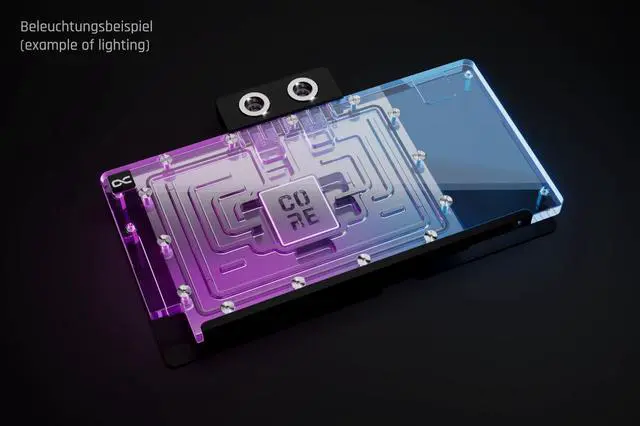

The visual design of the GPU water cooler has only been changed slightly. A special highlight is the newly added Core emblem above the jet plate, which underlines the fact that it belongs to the Core series and visually enhances the design. The series continues to rely on high-quality brass connections that guarantee optimal quality and safety. The specially adapted aluminum backplate covers the entire back of the copper cooler and ensures a clear and uniform look. The acrylic, in combination with the aRGB lighting, enables uniform and impressive lighting of the entire cooler.

Technically, the GPU water cooler has been completely redesigned. To optimize the cooling performance, the distances between the cooler and the components of the PCB were redefined and tested. The water flow was simulated using the latest software and tested in practical tests. These extensive tests made it possible to improve the cooler base and the nozzle in order to ensure the best possible cooling performance for the new Nvidia Geforce RTX generation.

Compatibility:

- Asus ROG Astral GeForce RTX 5080 16GB GDDR7 OC Edition

Technical data cooler
Dimensions total (L x W x H)
261,00 x 161,20 x 34,15mm
Material cooler
chrome-plated copper
Material cooler top
Acrylic
Material terminal
Nylon
Material Connection thread
Brass
Max working temperature
60°C
Pressure tested
0,8 bar
Threads
4 x G1/4"
Thickness cooler bottom
3,25mm
Thickness cooling fins
0,4mm
Distance cooling fins
0,4mm
Illumination
digital aRGB LEDs
Power connector digital aRGB LEDs
3-Pin JST
Power digital aRGB LEDs
5V
Number of digital aRGB LEDs
11
Color
transparent

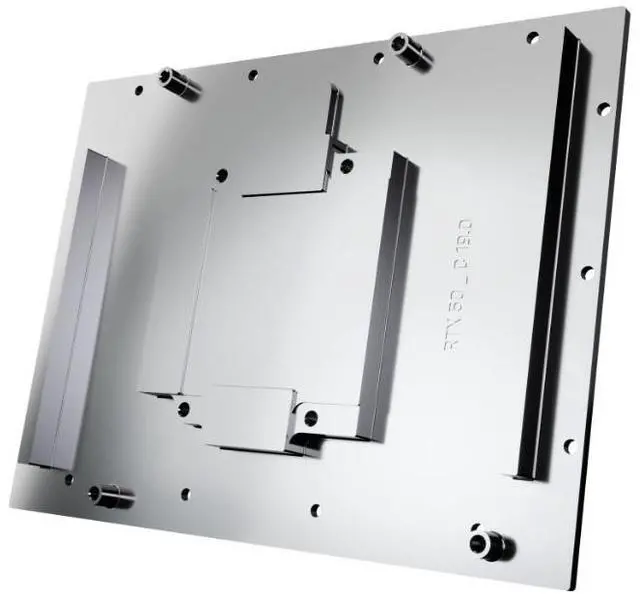

Technical data backplate
Dimensions (L x W x H)
261,00 x 132,70 x 6mm
Thickness backplate without spacers
3mm
Material
Aluminum
