Alphacool NexXxos Monsta Radiator 360, 120mm x 3, Triple Fan, Black

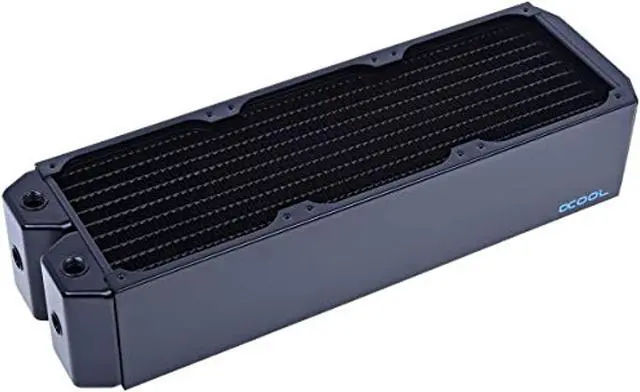

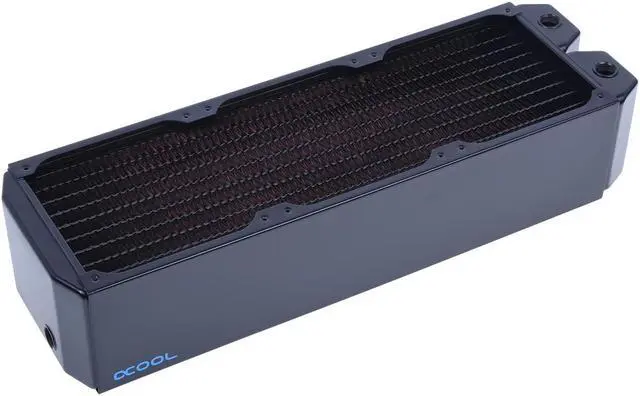

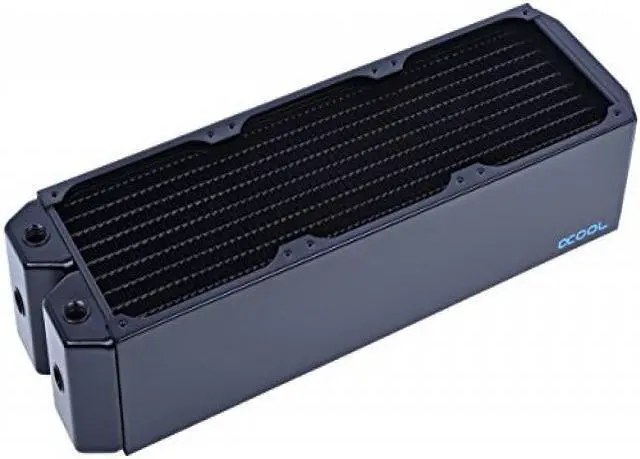

The Alphacool NexXxoS Monsta 360mm Radiator is a 360 mm radiator for three 120 mm fans. It measures 400 x 124 x 86 mm, which Alphacool files in its 69 - 100mm thickness class, and it has six G1/4 connections and M3 fan threads.

Properties

• Fans: 3 x 120 mm, M3 fan thread
• Size (L x W x H): 400 x 124 x 86 mm
• Thickness: 69 - 100mm class, 86 mm in the dimensions
• Ports: 6x G1/4
• Material: Copper cooling channels and slats, steel housing
• Color: Black

Full copper

Alphacool says the new NexXxoS radiators are the first to truly deserve the "Full copper" attribute. All main parts are made from copper: not only the fins and channels, but the chambers also. In Alphacool's account this brings an improvement in performance where other radiators are left without a chance. It adds that the material already gives an advantage over the competition and that the inner structure is up to par with it. Separated chambers give the coolant a clear direction, allowing high flow rates which improve the performance of the whole cooling loop. The chambers on the heat exchanger are flat, and thanks to the reduced overall length they increase mounting flexibility.

The technical specifications for the materials are mostly copper inside, and a casing with side panels of steel and threads of brass around the copper chambers.

Ports and mounting

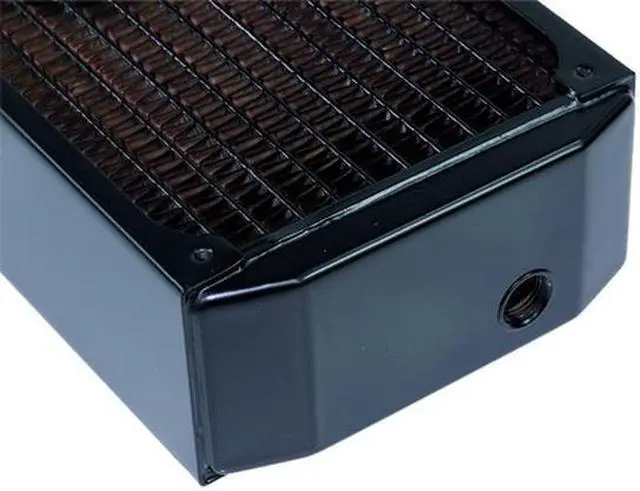

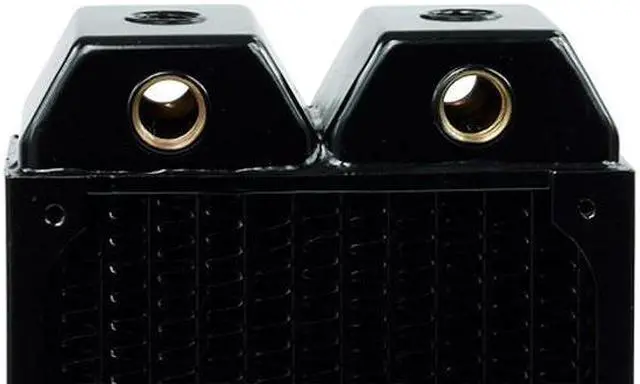

Versatile and easy mounting is one of the main points on which the research and development department at Alphacool focused. The chamber offers three possibilities for fitting installation on both inlet and outlet (not on the NexXxoS ST30). With that choice, less angled fittings are needed, improving flow rates and offering more mounting possibilities. Hence the radiator can even be installed in tight enclosures, where internal installation is otherwise not a possibility. A G1/4 screw plug, found on all UT60 and NexXxoS Monsta radiators, allows easy de-aeration and hassle-free vertical installation of the heat exchanger. Its threaded opening can even be used for filling, e.g. in combination with a Fillport.

What the loop needs

The radiator has six G1/4 connection threads, three on the inlet and three on the outlet. A loop uses two of them, so it takes two fittings. The five plugs in the box close the connections you do not use and the de-aeration opening. It takes three 120 mm fans, and the box holds twelve M3x30mm and twelve M3x35mm screws for them.

The next thickness down in this fan size is the NexXxoS UT60 Full Copper 360mm Radiator.

Technical data

• Dimensions (L x W x H): 400 x 124 x 86 mm
• Quantity of cooling channels: 12
• Cooling channels: Copper
• Color: black
• Fan thread: M3
• Number of fans: 3
• Connection: 6x G1/4
• Slats: Copper
• Thickness: 69 - 100mm
• Fan size: 120mm
• Housing: Steel
• Manufacturer: Alphacool
• Pressure tested: 0.8 bar
• Fins per inch: 10

Notes

• Use the radiator only with clear, transparent water cooling fluids. Alphacool warns that the particles and additives in pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses, which can also void the manufacturer's warranty.

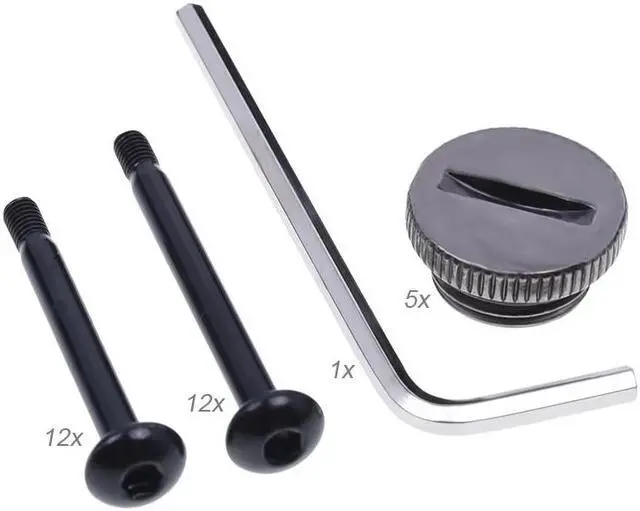

In the box

• 1x Radiator
• 5x screw plug
• 12x M3x30mm hexagon socket screw
• 12x M3x35mm hexagon socket screw
