Alphacool NexXxoS UT60 Full Copper X-Flow 80mm Dual Radiator (14295)

The Alphacool NexXxoS UT60 Full Copper X-Flow 80mm Dual Radiator is a radiator for two 80 mm fans, 60 mm thick and 80 mm high, with six G1/4 connections. Fans can go on one side or on both, up to four in all. It is built for server racks and workstations, with the water going in on one end and out on the other.

Properties

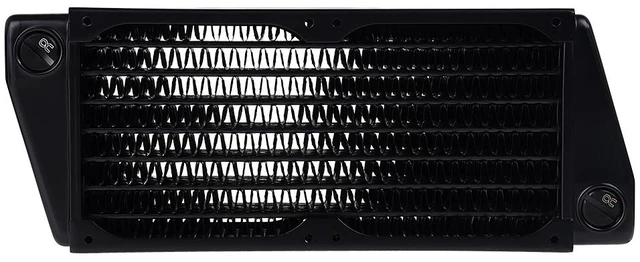

• Fans: 2x 80 mm one-sided / 4x both-sided
• Size (L x W x H): 203.5 x 60 x 80 mm
• Thickness: 60 mm
• Ports: 6x G1/4 (max. 5 mm thread length)
• Material: copper fins, pre-chambers and channels, brass threads, stainless steel outer housing
• Fin density: 10 FPI

Workstations and servers

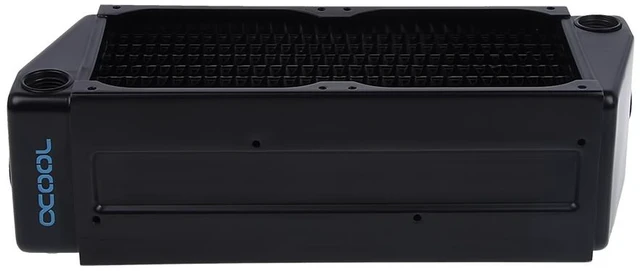

Alphacool has specially designed the 80 mm NexXxoS radiators for server racks and workstations, with a low height of only 80 mm and special M3 mounting holes on the top and bottom. Alternatively, the radiators can also be mounted in the classic way using the mounting locations of the fans, where M3 screws are also required.

X-Flow instead of U-Flow

The water flow in classic PC radiators is U-shaped: the water inlet and outlet are on the same side of the radiator. Alphacool grants that this has certain advantages in the normal PC. In an extremely flat server, however, it is difficult to set up a reasonable cooling loop like this. With the X-Flow technology the input and output are located on the opposite sides instead. The flow then runs from one side of the radiator to the other, and it directly uses all fins. Alphacool relies on the X-Flow for the new NexXxoS server radiators, under the heading "Find the easy route". In its words, the radiator immediately achieves the best possible cooling of your system with optimized water circulation. Alphacool says this makes it very easy to create a loop in the server rack. For example, the loop could go out from one side directly into a CPU, then into one or more graphics cards and the pump, and then back to the radiator on the other side.

What the loop needs

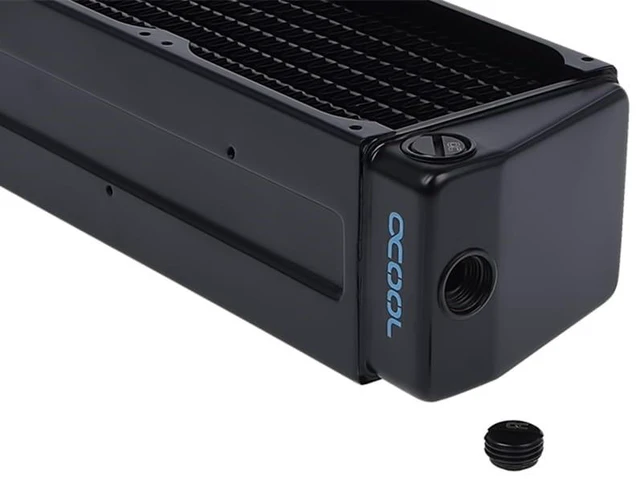

Six G1/4 connections, three on each end: two are used, one inlet and one outlet, so the loop takes two G1/4 fittings with a thread no longer than 5 mm. Remove the protective caps and close all threads you don't need with plugs. The radiator holds two 80 mm fans on one side or four on both sides, on M3 threads. M3 screws are used for case mounting, for fan mounting and for fan and damper mounting.

Technical data radiator

• L x W x H: 203.5 x 60 x 80 mm (+/- 3% tolerance in the range of the prechamber)
• Quantity of cooling channels: 21
• Material cooling fins, pre-chambers & channels: copper
• Material threads: brass
• Material outer housing: stainless steel
• Threads: 6x G1/4 IN/OUT (max. 5 mm thread length)
• Possible fan size: 80 mm
• Possible fan assembly: 2x one-sided / 4x both-sided
• Thread size fan mounting: M3
• Pressure tested: 0.8 Bar
• Maximum working temperature: 60 °C
• Fin density: 10 FPI
• Weight: 674 g
• Color: black

Notes

• Before use, rinse the radiator with distilled water or Alphacool Cape Kelvin Catcher.

In the box

• 1x Alphacool NexXxoS UT60 Full Copper X-Flow 80mm Dual Radiator

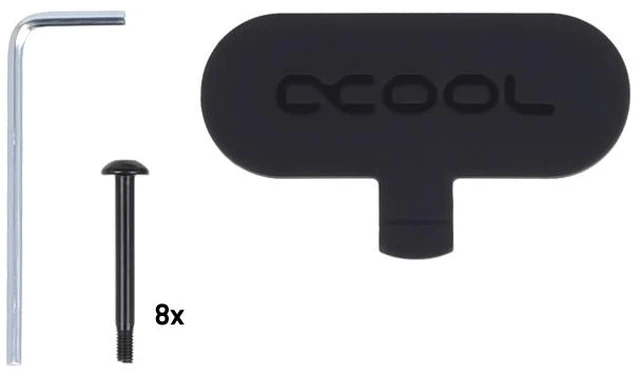

• Mounting Materials
