Alphacool NexXxoS UT60 Full Copper X-Flow 80mm Triple Radiator, 3x80mm, G1/4, 60mm, Black (14296)

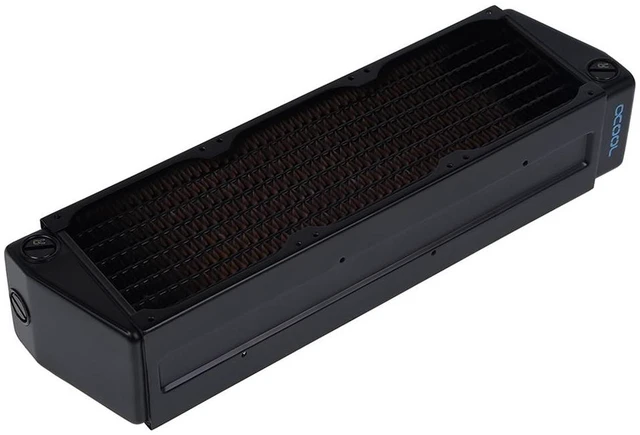

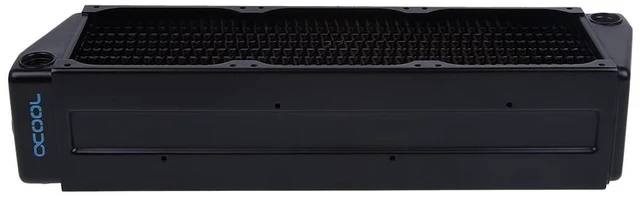

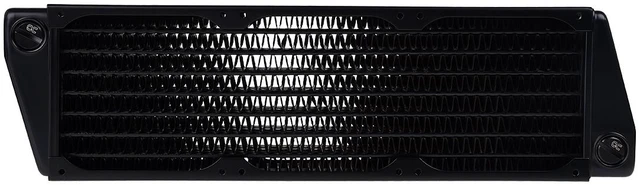

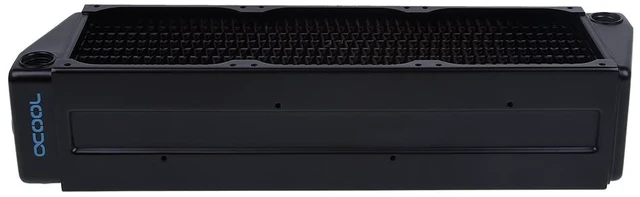

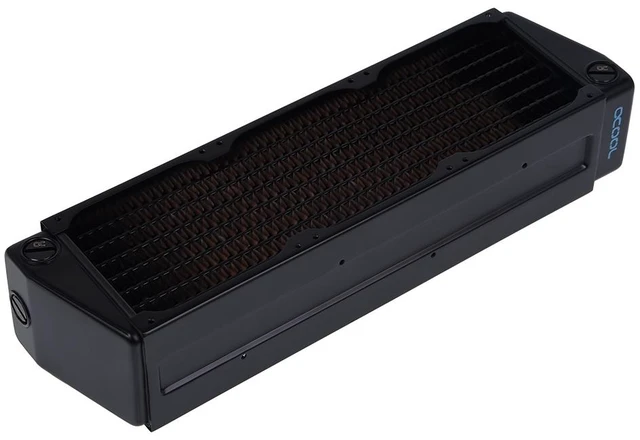

The Alphacool NexXxoS UT60 Full Copper X-Flow 80mm Triple Radiator is a radiator for three 80 mm fans in a row, 60 mm thick, with the water inlets and outlets on opposite sides. Alphacool designed it for server racks and workstations, and its end chambers, water channels and cooling fins are pure copper.

Properties

• Fans: 3x 80 mm one-sided / 6x both-sided
• Size (L x W x H): 284 x 60 x 80 mm (+/- 3% tolerance in the range of the prechamber)
• Thickness: 60 mm
• Ports: 6x G1/4 IN/OUT
• Material: copper cooling fins, pre-chambers and channels, brass threads, stainless steel outer housing
• Fin density: 10 FPI

For workstations and servers

Alphacool's motto for these server radiators: it's the best system because it's your system, so strive for perfection. The new NexXxoS UT60 X-Flow Server Radiators, it says, help you to get one step closer and increase the performance of your system. Alphacool specially designed the 80 mm NexXxoS radiators for server racks and workstations, with a low height of only 80 mm and special M3 mounting holes on the top and bottom. Alternatively, the radiators can also be mounted in the classic way, using the mounting locations of the fans, where M3 screws are also required.

X-Flow instead of U-Flow

In classic PC radiators the water flow is U-shaped, which means that the water inlet and outlet are on the same side of the radiator. That has certain advantages in the normal PC. However, Alphacool notes, it is difficult to set up a reasonable cooling loop like this in an extremely flat server. For the best possible cooling of your system, Alphacool relies on the X-Flow for the new server radiators, under the heading "Find The Easy Route". The flow runs from one side of the radiator to the other, directly uses all fins and, Alphacool says, immediately achieves the best possible cooling with optimized water circulation. Due to the X-Flow technology, the input and output are located on the opposite sides, which makes it very easy to create a loop in the server rack. Alphacool's example: go out from one side directly into a CPU, then into one or more graphics cards and the pump, then back to the radiator on the other side.

What the loop needs

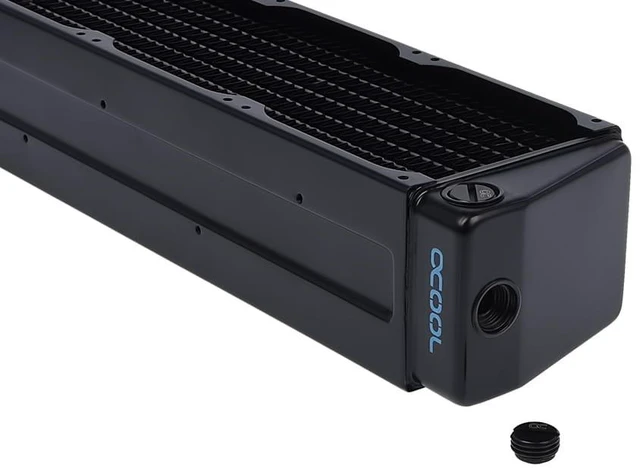

The radiator has 6x G1/4 threads for IN and OUT, with a maximum thread length of 5 mm. A loop goes in on one side and comes out on the other, so the radiator takes two G1/4 fittings. It holds three 80 mm fans on one side, or six with both sides fitted, on M3 threads. The box has mounting material.

Technical data

• L x W x H: 284 x 60 x 80 mm (+/- 3% tolerance in the range of the prechamber)
• Quantity of cooling channels: 21
• Material cooling fins, pre-chambers & channels: copper
• Material threads: brass
• Material outer housing: stainless steel

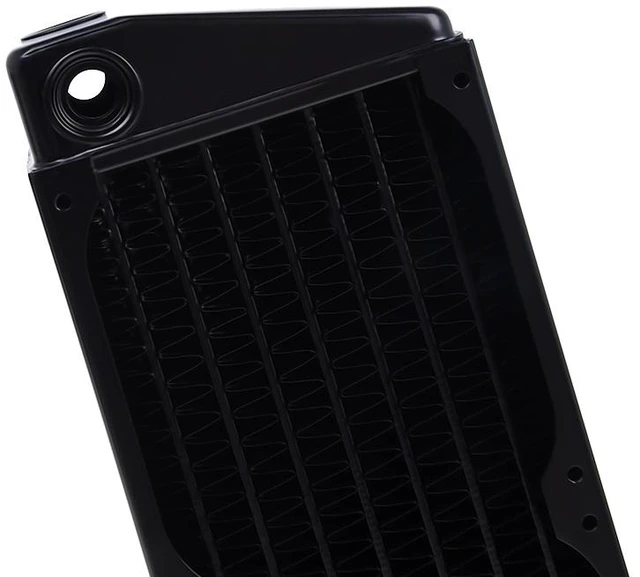

• Threads: 6x G1/4 IN/OUT (max. 5 mm thread length)
• Possible fan size: 80 mm
• Possible fan assembly: 3x one-sided / 6x both-sided
• Thread size fan mounting: M3
• Pressure tested: 0.8 Bar
• Maximum working temperature: 60 °C
• Fin density: 10 FPI
• Weight: 900 g
• Color: black

In the box

• 1x NexXxoS UT60 Full Copper X-Flow 80mm Triple Radiator

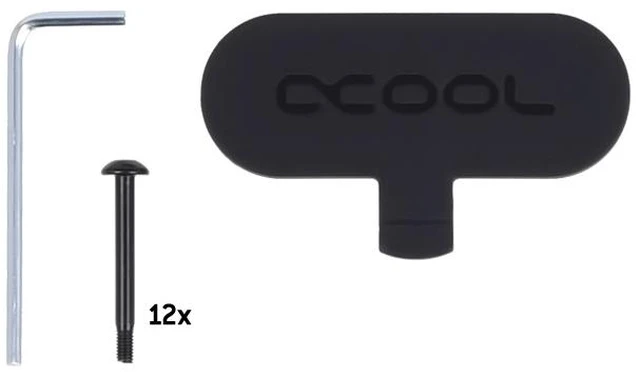

• 1x Mounting material
