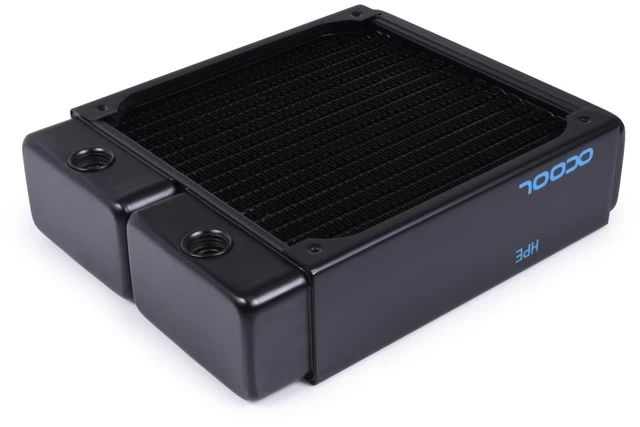

Alphacool 14474 NexXxoS Hpe-45 Full Copper 140mm Radiator, G1/4, 45mm, Black

The Alphacool NexXxoS HPE-45 Full Copper 140mm Radiator is a 140 mm radiator for one 140 mm fan, 45 mm thick, with all water-carrying parts and the cooling fins made of pure copper. The thinner radiator in the same fan size is the HPE-30 140mm radiator.

Properties

• Fans: 1x 140 mm one-sided / 2x both-sided
• Size (L x W x H): 173.5 x 144 x 45 mm (+/- 3%)
• Thickness: 45 mm
• Ports: 4x G1/4 IN/OUT, 1x fill/drain port G1/4
• Material: copper fins, pre-chambers and channels, brass threads, stainless steel outer housing

The NexXxoS Full Copper series

Alphacool says it has dominated the market with the NexXxoS Full Copper radiator series for more than a decade. In its words: "Our extensive portfolio of radiator variants is unique in the world." Just like its manufacturing process, it adds, "which allows us to produce" every water-carrying part and the fins out of copper. As a result, Alphacool claims, the series offers the highest thermal conductivity of any radiator on the market. Thanks to their exceptional performance, it says, the radiators can easily dissipate even extremely high waste heat and have become essential in many areas of the cooling industry.

What the loop needs

A loop runs in through one IN/OUT port and out through another, so the radiator takes two G1/4 fittings, with a thread length of 5 mm at most. It holds one 140 mm fan on one side or two with both sides fitted, on M3 threads. All screws for mounting in the case and for mounting the fans are included with the radiator: 4x M3x5 for the case and 4x M3x30 for the fans. Additional screws are not usually required.

Technical data radiator

• L x W x H: 173.5 x 144 x 45 mm (+/- 3%)
• Quantity of cooling channels: 32
• Material cooling fins, pre-chambers & channels: copper
• Material threads: brass
• Material outer housing: stainless steel
• Threads: 4x G1/4 IN/OUT & 1x Fill-/Drainport G1/4 (max. 5 mm thread length)
• Possible fan size: 140 mm
• Possible fan assembly: 1x one-sided / 2x both-sided
• Thread size fan mounting: M3
• Pressure tested: 0.8 Bar
• Maximum working temperature: 60 °C
• Fin density: 16 FPI
• Weight: 720 g
• Color: black

Notes

• Use only clear, transparent water cooling fluids. Alphacool warns that the particles and additives in pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses, which can result in voiding the manufacturer's warranty as well.

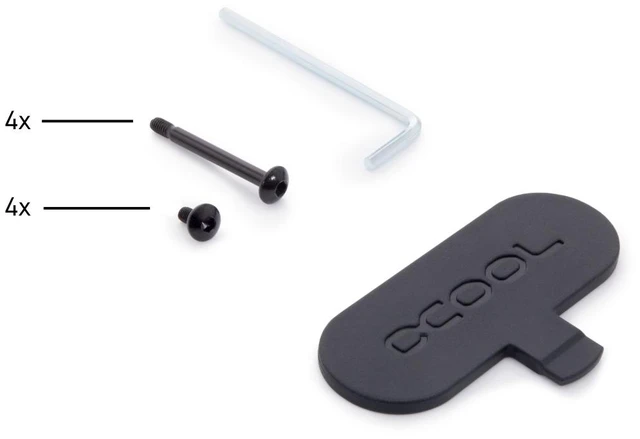

In the box

• 1x Alphacool NexXxoS HPE-45 Full Copper 140mm Radiator, black
• 4x M3x5 case mounting screws
• 4x M3x30 fan screws
• 1x Allen key
• 1x Plug tool
