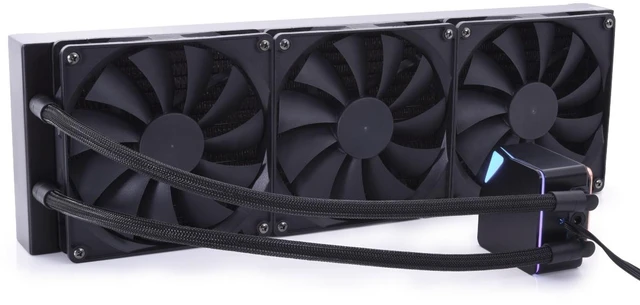

alphacool core ocean t38 cpu aio, 420mm radiator

The Alphacool Core Ocean T38 AIO 420mm is an AIO liquid cooler with a 420 mm aluminum radiator for AMD AM4 and AM5 and Intel LGA 1150, 1200, 1700, 1851 and 2066. It comes pre-filled with three 140 mm PWM fans and a PWM pump with aRGB lighting. The difference to the Eisbaer CPU AiO is that the Ocean All-in-One is not expandable.

Properties

• Intel sockets: LGA 1150, 1200, 1700, 1851, 2066
• AMD sockets: AM4, AM5
• Radiator: 420 mm, 460 x 140 x 38 mm
• Fans in the box: 3 x 140 mm, 0 to 2000 rpm
• Pump: Built-in, PWM, 2500 to 3500 RPM
• Tubes: 40 cm FEP, not expandable

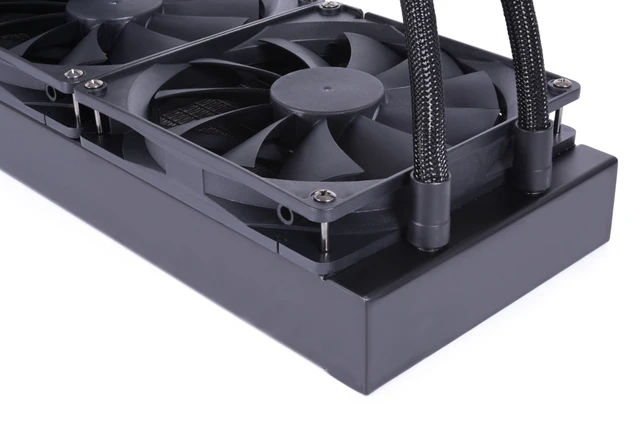

Technical data radiator

• L x W x H: 460 x 140 x 38 mm
• Material cooling fins, channels & prechamber: 3003 Aluminum
• Material outer housing & threads: 3003 Aluminum
• Fins per Inch: 20
• Fan size: 140 mm
• Fan slots: 3 one-sided / 6 double-sided
• Color: black

Technical data fans

• L x W x H: 140 x 140 x 25 mm
• Bearing Type: hydraulic Bearing
• Rated Voltage: DC 12V
• Operating Voltage: DC 7-14V
• Start-up Voltage: 7V
• Rated Current: 0.26 (Max. 0.3) A
• Rated Power: 3.12 (Max. 3.6) W
• Rated Speed: 0 - 2000 rpm/min (±10%)
• Max. Air Flow: 92.3 CFM
• Max. Static Pressure: 2.53 mm-H2O
• Noise level (rated voltage, mute room, distance 1m): 34.3 (Max. 36) dBA
• MTBF: 50000hrs at 25 °C
• Speed Control Mode: PWM
• Connection & control: 4-pin PWM (cable 40 cm)
• Auto-Restart: yes
• Tachometer Output: yes
• Color: black

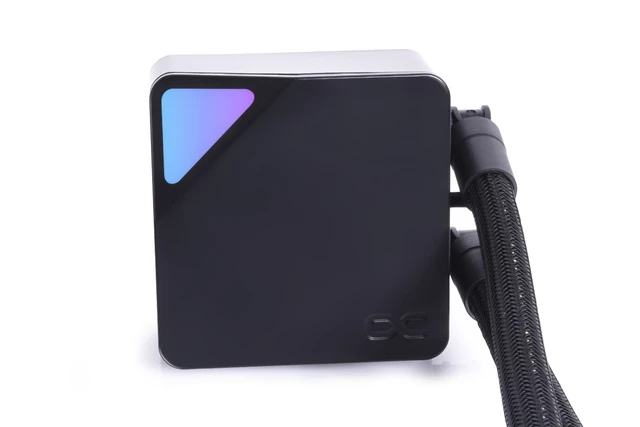

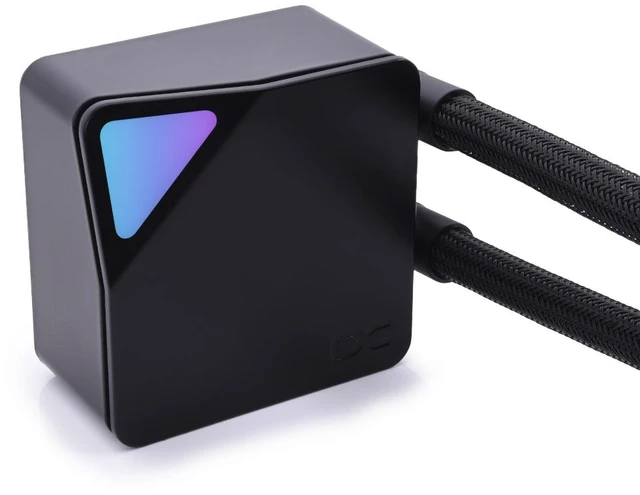

Technical data cooler and pump

• L x W x H: 70.2 x 70.2 x 46 mm

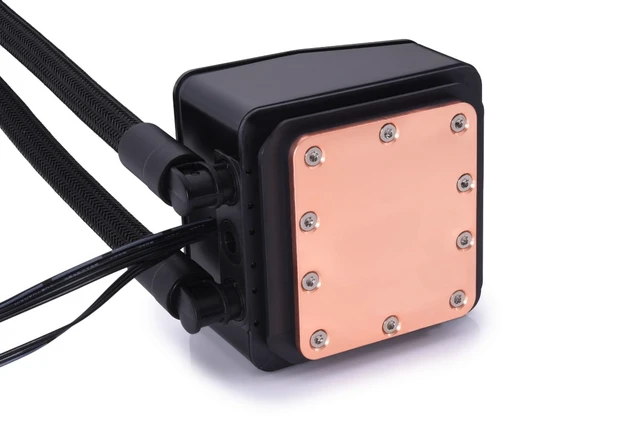

• Material cooler bottom: copper
• Material pump housing: Synthetic material (ABS+PC)
• Fin structure cooler bottom: 0.1 x 0.1 mm
• Material pump bearing & shaft: ceramics
• Starting voltage: over DC 6V
• Rated power: 7.1 W
• Noise level: 35 dB
• Rated Current: 0.59 A (±10% MAX)
• Speed: 2500~3500 (±10% RPM)
• Power supply Digital aRGB: 3-pin 5V (male & female, cable length 30 cm)
• Number of aRGB LEDs: 12
• Power supply pump: 4-Pin JST (cable length, 30 cm)

Technical data tubes

• Material: FEP, black with weave cover
• Length: 400 mm

In the box

• 1x Core Ocean T38 AIO 420mm
• 2x LGA 2066, LGA 115x, 1200, 1700 Bracket
• 2x AM4 / AM5 Bracket
• 1x Backplate
• 1x Thermal paste
• 4x Springs
• 4x AM4 / AM5 Screws
• 4x LGA 115x, LGA 1200, 1700 Screws
• 4x LGA 2066 Screws
• 4x 2mm Washers
• 4x 0.5mm Washers
• 12x UNC6-32x6 Screws
• 12x UNC6-32x30 Screws
• 3x 140x140x25mm Fan
