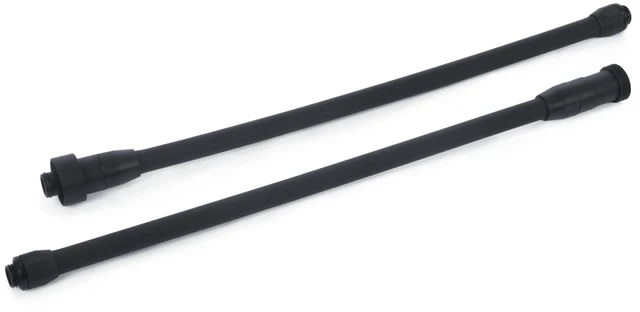

Alphacool Eisbaer TPV Extension Set, Black (12982)

The Alphacool Eisbaer TPV Extension Set is a set of two 30 cm TPV hoses in 12.7/7.6 mm for extending an expandable Alphacool AIO cooler. Each hose has a straight nylon connection with a G1/4 thread at one end and a quick-release coupling at the other end. It is compatible with all AIO systems from Alphacool, for processors and for graphics cards.

Properties

• Hose size: 12.7/7.6 mm TPV
• Hose length: 30 cm each
• Thread: G1/4
• Angle: Straight
• Connection: Alphacool TPV, nylon
• Quick release: One male, one female, with twist lock

What the set does

Alphacool says it offers the easiest way to connect its expandable AIO systems with other components. If you want to extend an Alphacool AIO solution with another product, this is the hose and the connections for it.

Hoses and connections

Each hose is 30 cm long and has a straight Alphacool TPV connection made of nylon at one end. At the other end there is the quick-release coupling: a male connection on one hose and a female one on the other. These safety fasteners use a twist lock. Alphacool says this means that a fastener cannot be opened accidentally, so unintentional opening is almost impossible.

Which hose goes where

The two quick connectors differ, one male and one female, so you must pay attention to where you use each of them. The hose with the male quick connector should always be mounted at the water outlet. The piece of hose with the female fastener is used at the water inlet.

What the loop needs

The two G1/4 threads screw into the product you add. More hose or other parts in this size are the AlphaTube TPV 12.7/7.6 and our 12.7/7.6mm fittings section. The same set with a 90° connection is the Eisbaer TPV 90° Extension Set.

Notes

• Use only clear, transparent water cooling fluids. Alphacool warns that the particles and additives in pastel liquids can clog and permanently damage radiators, pumps, coolers and hoses, which can void the manufacturers warranty.
