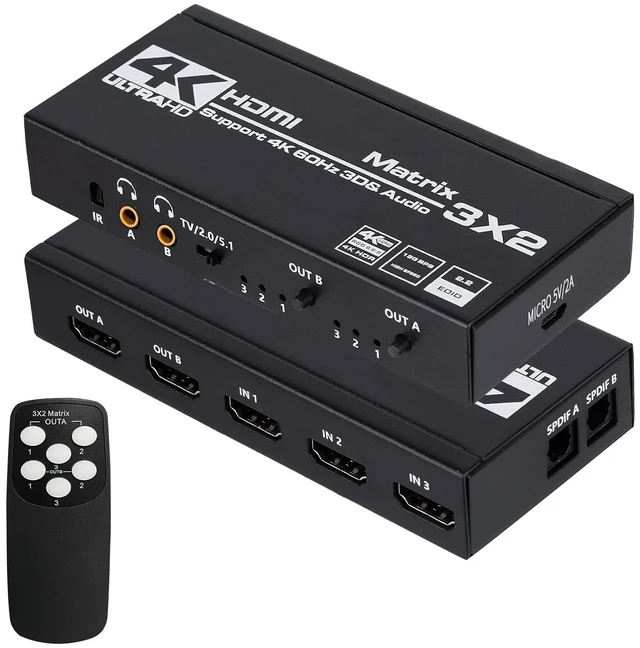

HDMI Matrix 3x2, 4K HDMI Matrix Switch 3 in 2 Out Switcher Splitter Box with EDID Extractor and IR Remote Control, Support Ultra 4K HDR, 4Kx2K@60Hz, 3D/1080PHDMI 2.0b, HDCP 2.2

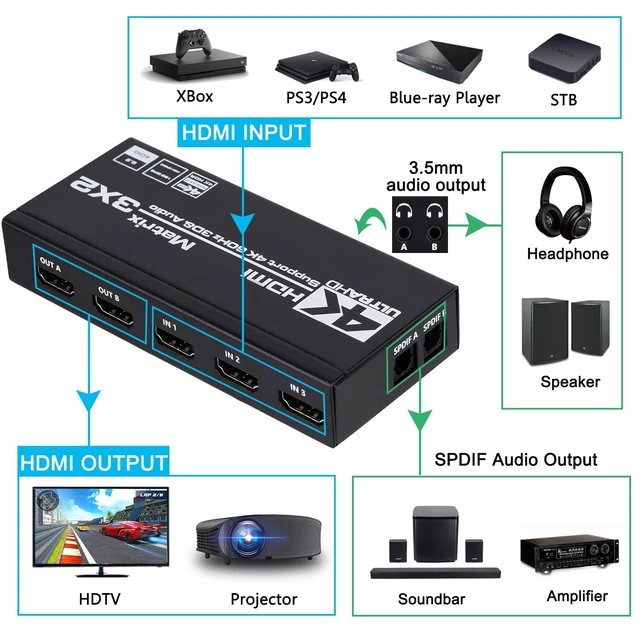

- HDMI Matrix 3x2: This HDMI Matrix Switch can connect three 4K HDR signal sources to 2 HD display or monitorand it can also extract the HDMI input Audio signal with Toslink SPDIF optical fiber or 3.5mm stereo headphone output. This 3x2 HDMI Matrix can control by IR remote control and Local Button. It allows 3 HDMI Output devices to be switch or split easily to two HDMI compatible monitors or projectors.
- High Resolution: 4K@60Hz, 4K HDR, 3840x2160@60Hz, Ultra HD, 3D, RGB 4:4:4. Support 18.5Gbps data rate and tmds clock up to 600Mhz. Support deep color 8/10/12/24/32/48bit.
- HDMI Audio Extract and Settable EDID: Supports LPCM 2.1/Dolby/DTS 5.1 channel and smart EDID management.Any input HD source can do audio extract by the Toslink SPDIF or 3.5mm headphone audio output port separately or at the same time. Built-in IR sensor comes with a handy, remote control that makes switching inputs, it can do also switch by press button. Note: AAA battery neededand pls confirm your audio format is correct.
- Compatibility: Support HDCP 2.2, compatible with HDMI 2.0b. Input support: Computer, PS3, PS4,PS4 pro, Xbox, Xbox one, Nintendo Switch, HD player, Fire TV, Apple TV etc. Output support: Projector, HDTV etc.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

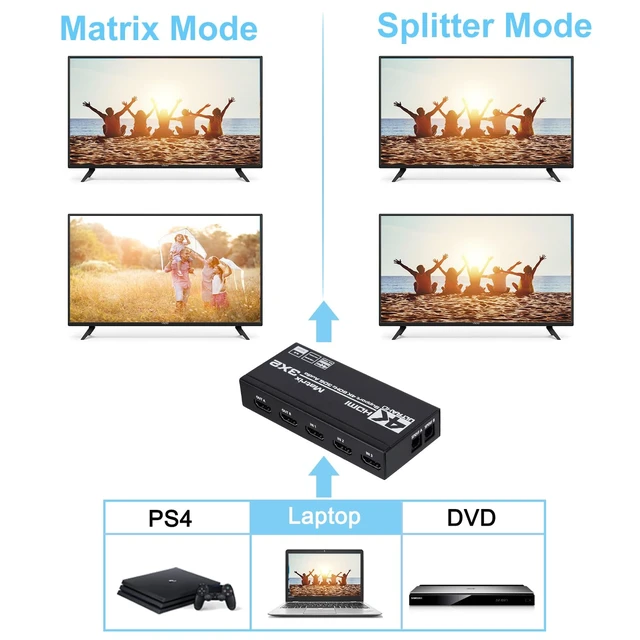

3x2 HDMI Martrix
This 3 in 2 Out HDMI Matrix Switch allows four HDMI devices to be switched or splitted easily to two HDMI compatible monitors or projectors. It is suitable for home theater, villa, conference room, shopping mall, video wall, school and corporate training environments etc.
Specifications
- Product Type:HDMI Matrix 3x2.

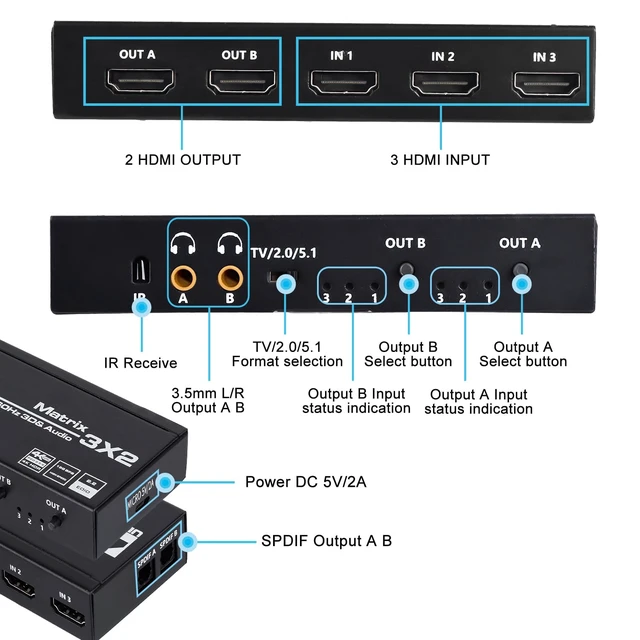

- Interface Type: 3 HDMI Input port, 2 HDMI Output Port
- Color: Black
- Power Supply: DC 5V.
- Max working current: 600mA
- Operating Temperature range -15°C to+45°C
- Dimension (LxWxH): 170*56*24mm
- Weight: 0.25kg
Features
- Support HDMI 2.0b HDCP 2.2
- Support 3D video format
- Support highest resolution up to 3840*2160/60Hz
- Support 18.5Gbps data rate and tmds clock up to 600Mhz
- Support deep color 8/10/12/24/32/48bit
- Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time
- HDMI resolution: up to 3840*2160/60 Hz, RGB 4:4:4
- 3 HDMI inputs switch and split to 2 HDMI displays
- Support LPCM 2.1ch/Dolby/DTS 5 1 audio

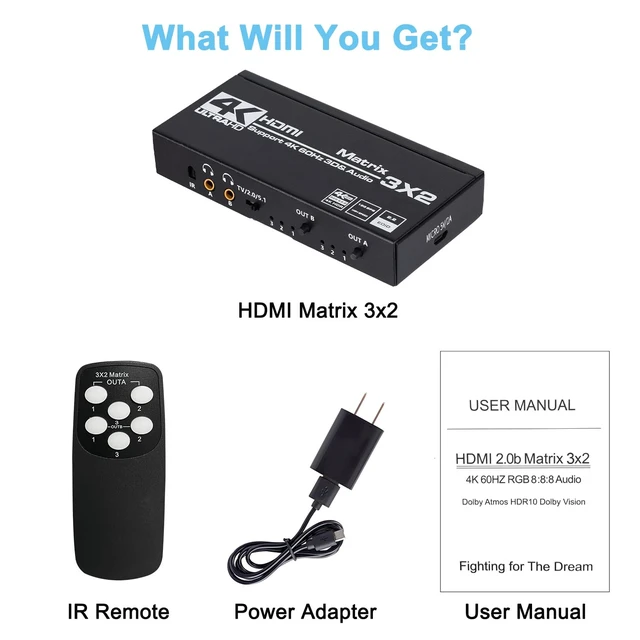

Package contents
1x HDMI Matrix 3x2
1x 5V power adapter
1x IR Remote Control
1x User Manual
