Question 1

Can I fit a 2.5" SSD, a 3.5" HDD, and a 3.5" Blu-ray drive inside this case?

Accepted Answer

I was able to, but be warned.  You will need SATA cables with 90 degree angle connectors (or similar adapters) for the 3.5" HDD as there is otherwise no room for them against the side of the case.  And you will either need the same cables/adapters for the Blu-ray drive if it is standard size.  If the Blu-ray Drive is on the shorter then standard, then regular SATA cable should be fine.  This all goes for the SATA power connectors as well.  this case just doesn't give you much room to work with.
Also, before I forget.  The one included fan is LOUD.  I would highly recommend swapping it out for something else.  I used an EVERCOOL 80x80x10mm Low Speed Fan and haven't had any issues with it.

Question 2

Where can I buy a 750 watt psu that fits this case? The power supply form factor is different then what I am used to.

Accepted Answer

I do not know.  The built-in supply should be sufficient. I have had  6 of these on-line for five or six years with no problems at all.  The only difficulty is that the slot for the DVD is too small and has to be enlarged.

Question 3

Is there any where in the case to mount more fans? I'm guessing like 1 or 2 more 120mm fans. I just want to be sure the case has adequate airflow. I'll be putting in a AMD A4-7300, so it's gonna be a little toasty

Accepted Answer

This case is not ideal for airflow. To get adequate airflow, take the front panel off to allow front fan best air path. Then use a knockout punch to place a 3in hole in the top panel add an exit vent for a 15mm fan for your PCIe cards. This is what I do for my systems.

Question 4

what type/size psu does this take ?

Accepted Answer

This takes a TFX psu

Question 5

What is the maximum height of the CPU cooler allowed?

Accepted Answer

There is about 3.3 inches of space from the CPU to the top of the case, but since most low profile coolers have a top mounted fan you will need some headroom for air intake. I'm using a Noctua NH-L9x65 cooler on a Core i7-7700 and it works quite nicely. I have pegged out the CPU at 100% for a couple of hours re-encoding large movie files and have had no overheat issues. My motherboard is smart enough to run the CPU and case fan speeds as needed.

Question 6

Does this case come with a USB 3.0 cable to connect between the case and the motherboard?

Accepted Answer

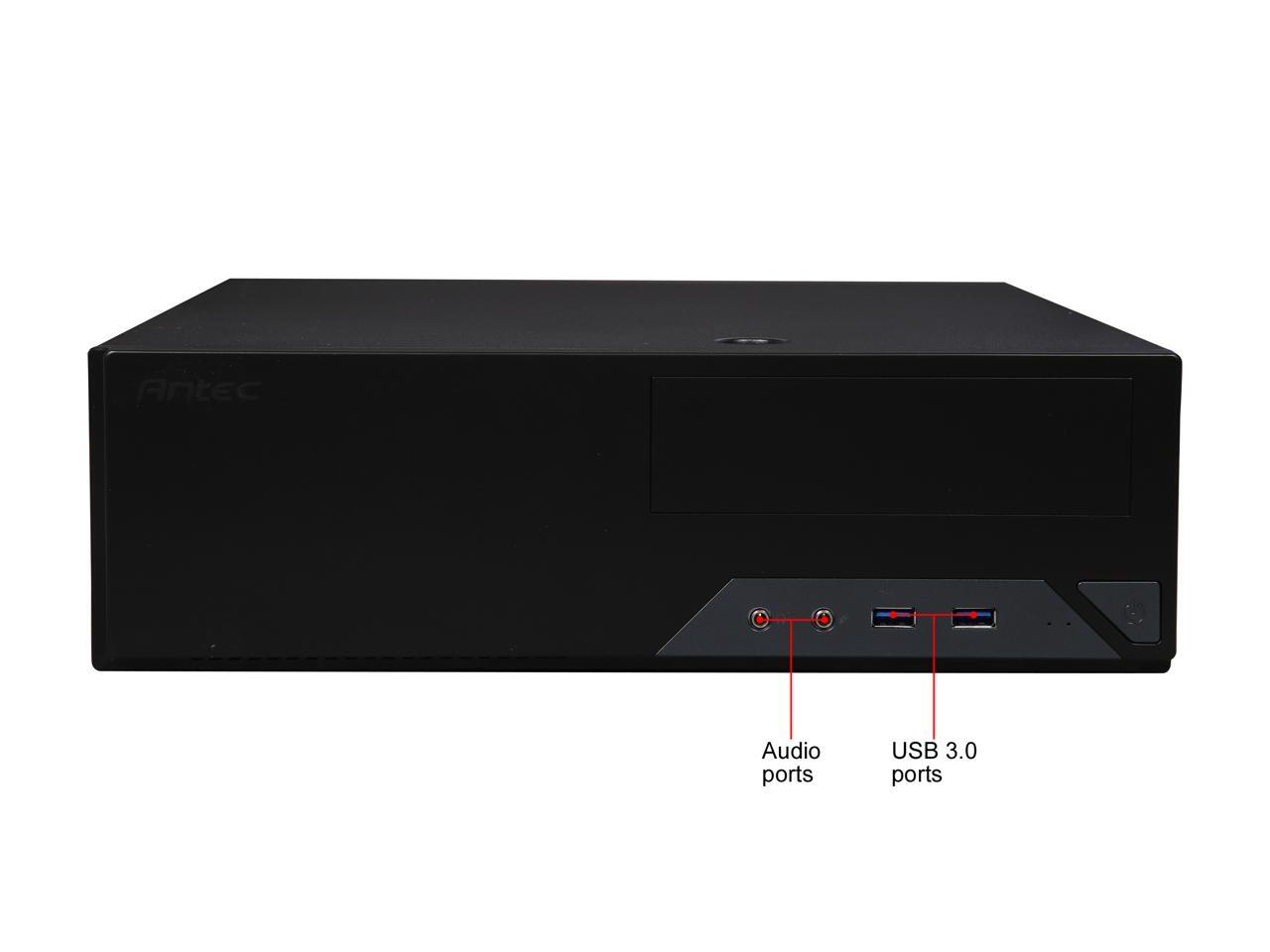

yes it does come with the normal USB 3.0 internal header cable, both the front USB ports worked fine on the one I built for a customer

Question 7

would this fit a ZOTAC GeForce GTX 1060 Mini?

Accepted Answer

Hello! That video card is 4.38" in height, while the case is only 4" in height. So I doubt that it would fit. I am using a micro board with a CPU that has integrated graphics (i-3100). Also, keep in mind that your PCU must be long and slim, a compact format, regular PCU will not fit. Best regards!

Question 8

What's the maximum height for the 2.5 in drive?

Accepted Answer

The mounting spot for the 2.5 inch drive is in a slide-in plastic holder that has tool-less mount from the sides of the hard drive, and there is plenty of room above and below, so any 2.5 inch drive will fit.

Question 9

Will this case fit a large Graphics card like a GTX 960?

Accepted Answer

This case will NOT support a GTX 960.  This case only supports low-profile video cards and as far as I know, there are no low-profile GTX 960 cards.  To the best of my knowledge, the most powerful low-profile video card made by Nvidia is a GeForce GT 740.  I can't speak for AMD cards, but I'll bet their best low-profile card is similar in performance expectations.

Question 10

What Video cards fit this case?

Accepted Answer

I do not know, but you will have to cut a wider opening for the disc drive.
