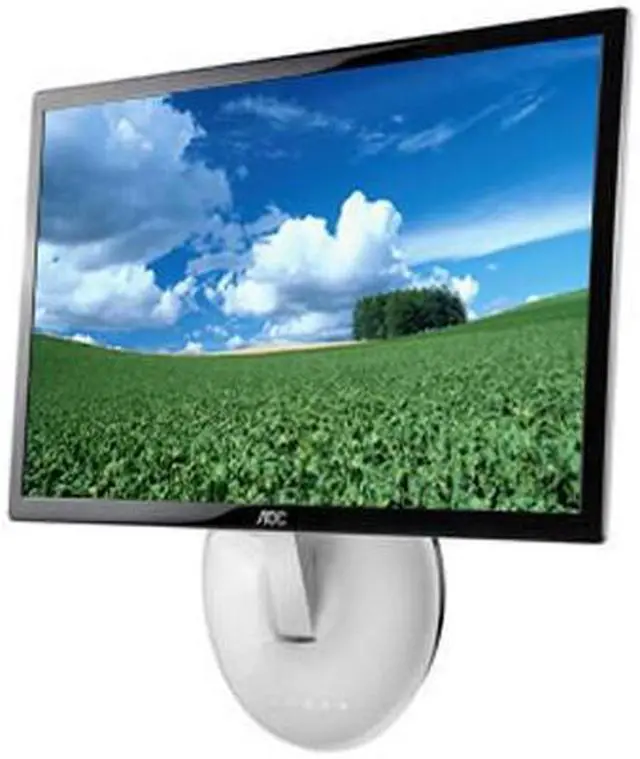

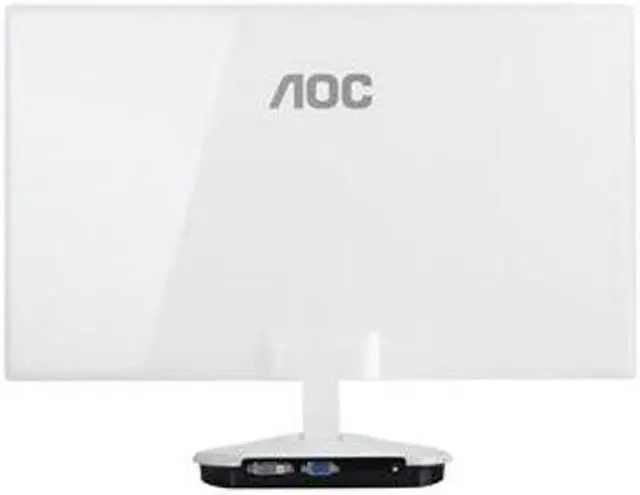

AOC e2343F Black & White 23" 5ms LED BackLight LCD Monitor Slim Design 250 cd/m2 50,000,000:1
- 1920 x 1080 5ms
- 50,000,000:1(DCR)
- D-Sub, DVI
Specs
Reviews (15)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the AOC Monitors e2343F
| Brand | AOC |
|---|---|
| Model | e2343F |
| Cabinet Color | Black & White |
| Screen Size | 23" |
|---|---|
| LED Backlight | Yes |
| Widescreen | 16:9 Wide Screen |
| Maximum Resolution | 1920 x 1080 |
| Resolution | 1920 x 1080 |
| Viewing Angle | 170/160 (CR=10) |
| Monitor Pixel Density | 0.265(H)×0.265 (V)mm |
| Display Colors | 16.7 Million |
| Brightness | 250 cd/m2 |
| Contrast Ratio | 50,000,000:1(DCR) |
| Response Time | 5 ms |
| Panel | TN |
| Input Video Compatibility | Analog RGB, Digital |
|---|---|
| Connectors | D-Sub, DVI |
| D-Sub | 1 |
| DVI | 1 |
| HDMI | No |
| Power Supply | 12VDC,3A |
|---|---|
| Power Consumption | Power On: <28W(Typical), Standby: <0.5W |
| User Controls | Auto, left, right, Menu, Power |
|---|---|
| Regulatory Approvals | BSMI,VCCI,PSE,J-MOSS,MEPS,KCC,e-standby,(KC and MEPS for Adapter),CCC, FCC, cCSAus, CE, TUV-S, TUV-Bauart, EPA 5.0,Windows 7,TUV-Gs,GHOS, RoHS |
| Stand Adjustments | Tilt: -3°~12° |
| Built-in TV Tuner | No |
| Built-in Speakers | No |
| HDCP Support | Yes |

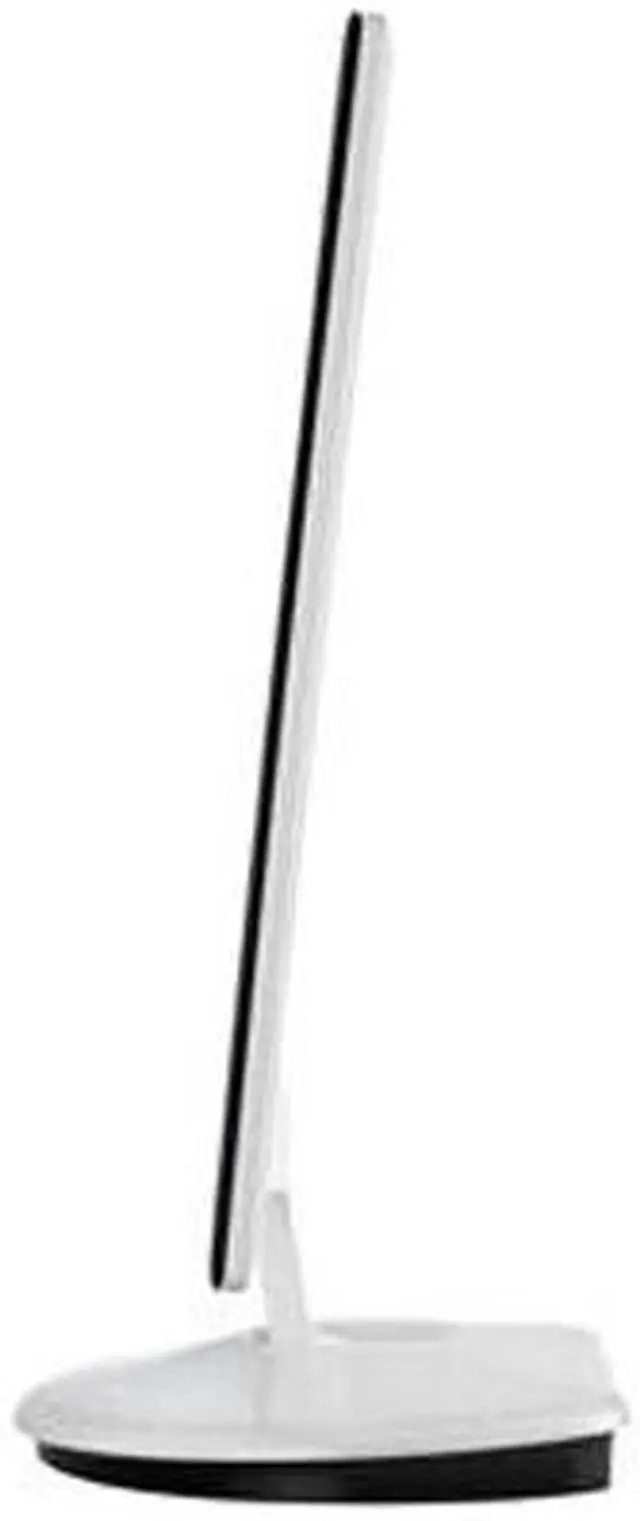

| Features | "Razor" e2343F features an ultra slim cabinet measuring just 12.9mm thin. The mercury (Hg) free LED backlight saves up to 50% of the energy compared with a traditional 4 CCFL screen. Power is further reduced by the "e-Saver" technology, which enables the user to set the monitor to a lower power configuration when the PC is in screen saver mode or powered off, or even if the user is simply away for a while. The illuminated touch key controls, along with graphical OSD menu icons, make monitor adjustment user-friendly. The base doubles as a unique smart wall-mount that saves space and retains a Tilt function for ergonomic viewing. OSD Languages: 14 Languages Mechanical Function: Tilt: -3°~12° |
|---|
| Dimensions (H x W x D) | W×H×D (w/base)mm: 547.2x 404.6 x182.4 W×H×D (package)mm: 615×124×545 |
|---|---|
| Weight | Weight (Net /Gross): 2.85/6.02 |
| First Listed on Newegg | November 12, 2010 |
|---|
