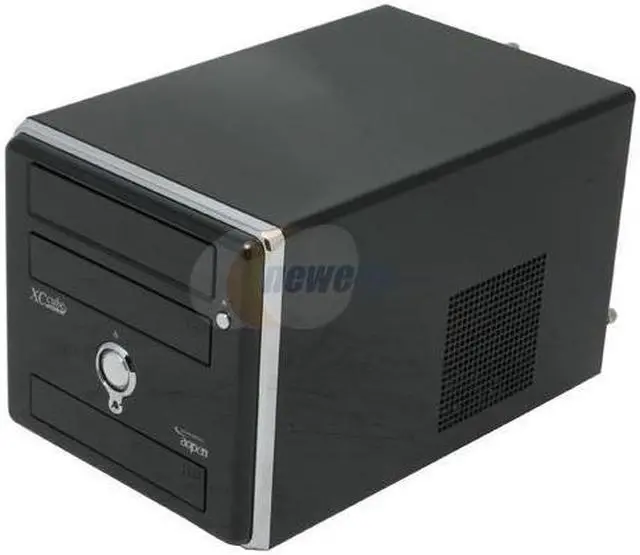

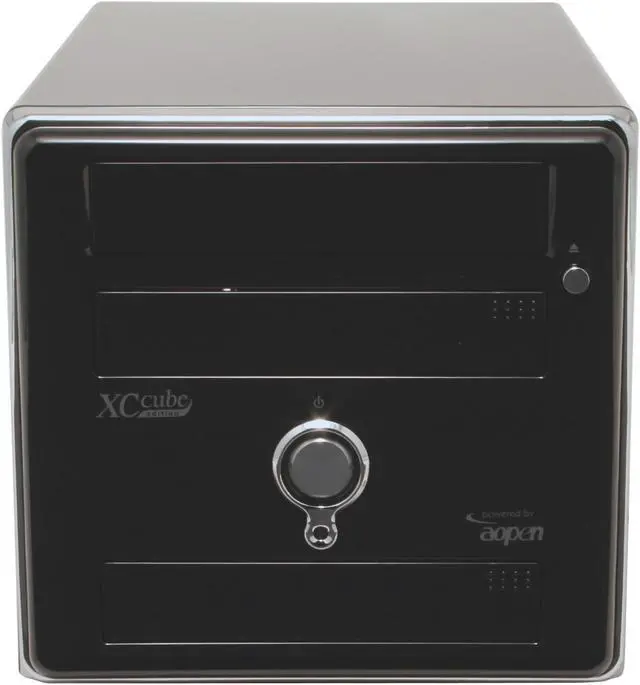

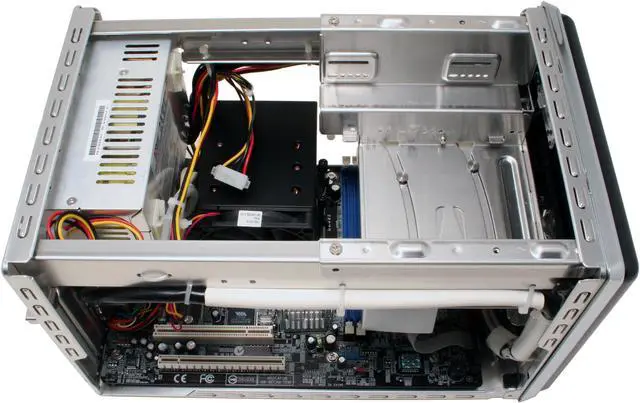

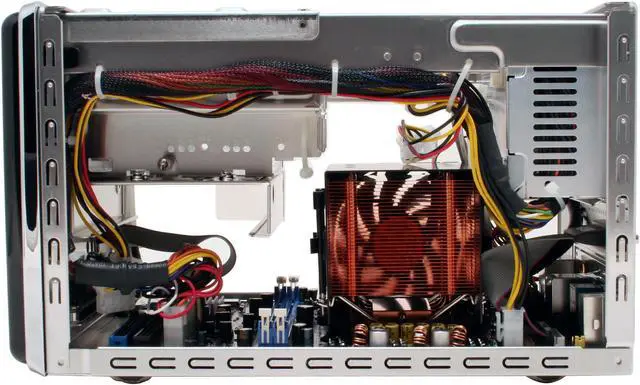

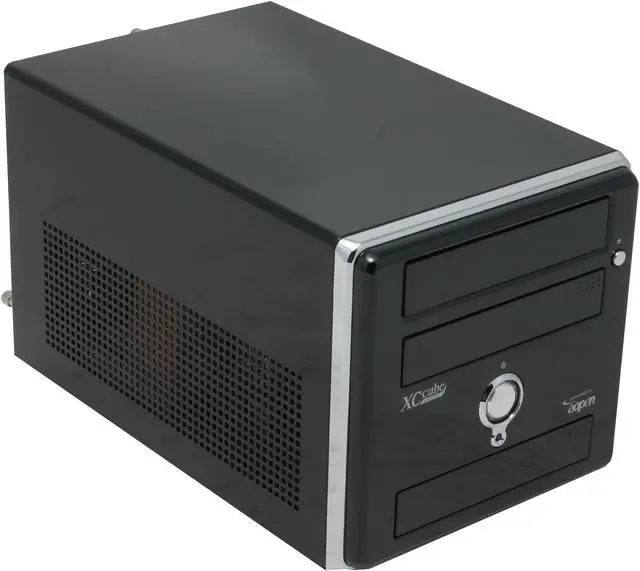

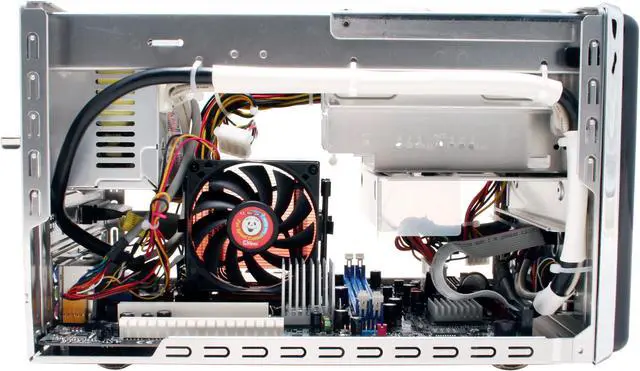

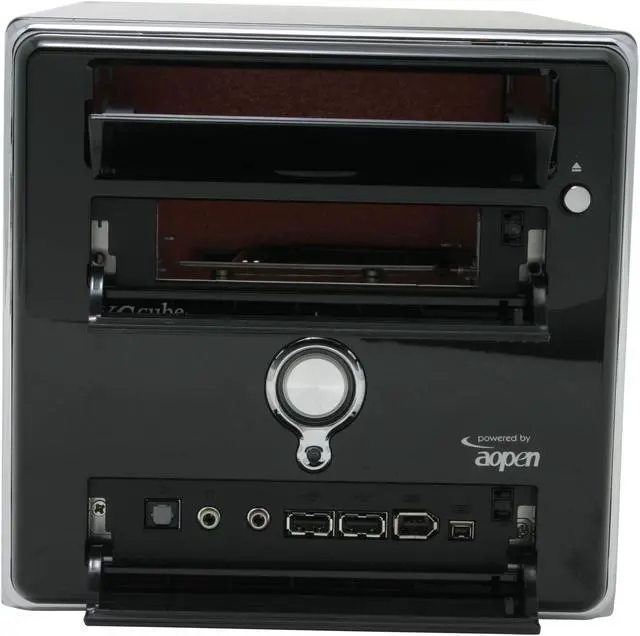

AOpen XC CUBE EZ482 AMD Socket 939 ATI RS482 Barebone
- AMD Athlon 64 FX / Athlon 64 / Sempron AMD Socket 939
- ATI RS482 IXPSB450
- 2 x 184Pin DIMM DDR 400/333
- ATI Radeon Xpress 300
Specs
Reviews (35)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the AOpen EZ482
| Brand | AOpen |
|---|---|
| Series | XC CUBE |
| Model | EZ482 |
| CPU Type | AMD Athlon 64 FX / Athlon 64 / Sempron |
|---|---|
| CPU Socket | AMD Socket 939 |
| FSB | 1000 MHz |
| North Bridge | ATI RS482 |
|---|---|
| South Bridge | IXPSB450 |
| Memory slot | 2 x 184Pin DIMM |
|---|---|
| Memory Type Supported | DDR 400/333 |
| Max Memory Supported | 2GB |
| PCI Express | 1 x PCI Express x16 |
|---|---|
| PCI | 1 |
| IDE ATA | 2 x ATA 100 |
|---|---|
| Serial ATA | 4 x SATA 1.5Gb/s |
| Onboard Video | ATI Radeon Xpress 300 |
|---|---|
| Video Memory | Shared |
| Onboard Audio | AC97 HD-Audio |
|---|---|
| Channel | 8-CH |
| First LAN | 10/100/1000 LAN |
|---|---|
| Max LAN Speed | 10/100/1000Mbps |
| 3.5" Internal bays | 1 |
|---|---|
| 3.5" External bays | 1 |
| 5.25" External bays | 1 |

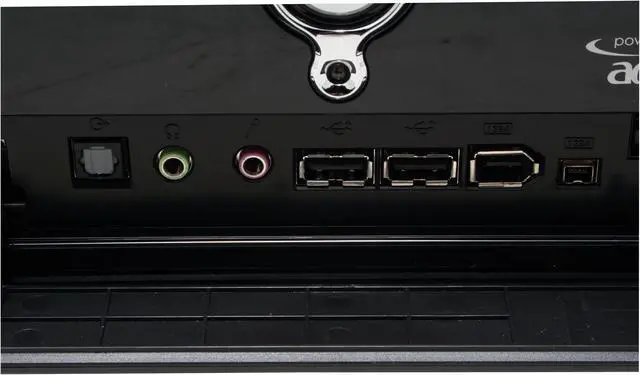

| Front USB | 2 |
|---|---|
| Front IEEE 1394 | 2 x 1394 (4 pin & 6 pin) |
| Front Audio Ports | 2 jacks |
| Front S/PDIF Out | Yes |

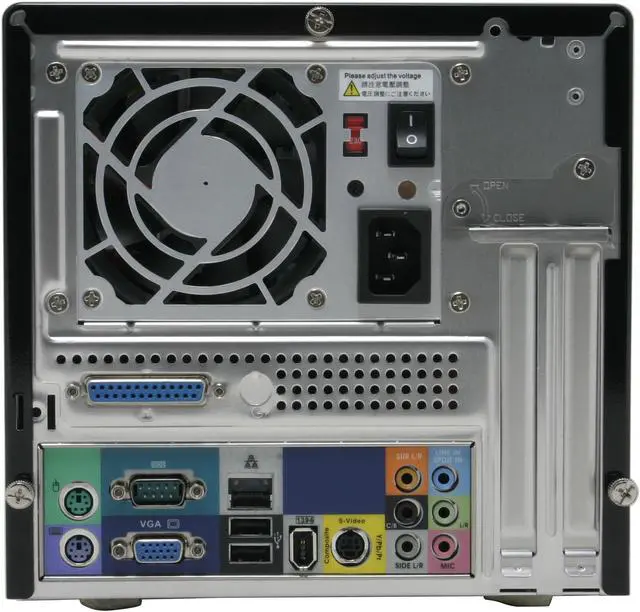

| PS/2 | 2 |
|---|---|
| COM | 1 |
| LPT | 1 |
| VGA | 1 x D-Sub |
| TV-Out | Multi-TV x 1 Composite + S-Video + Y/Pb/Pr |
| Rear USB | 2 |
| Rear IEEE 1394 | 1 |
| RJ45 | 1 |
| Rear Audio Ports | 6 jacks |
| Power Supply | PFC 275W |
|---|
| Dimensions | 7.9" x 7.3" x 12.6" |
|---|---|
| Weight | 8.4 lbs. |

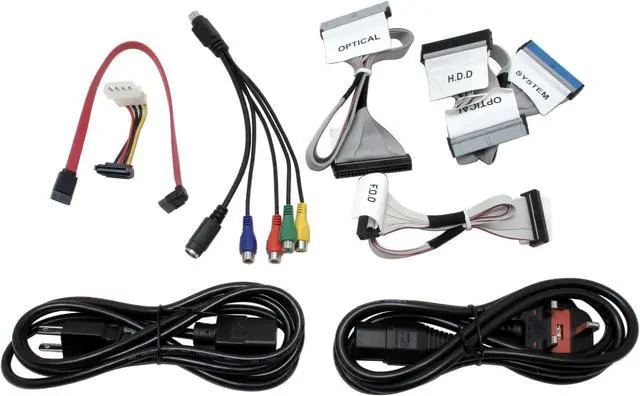

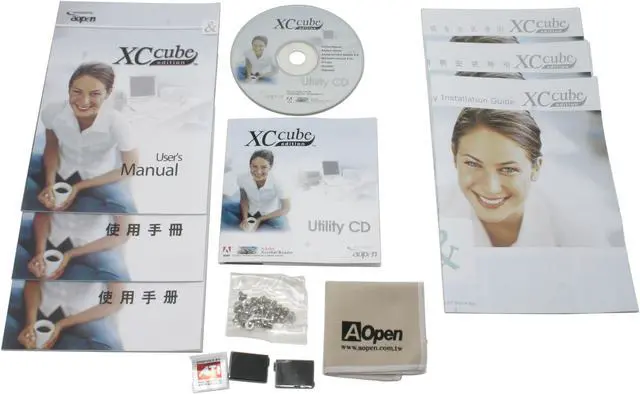

| Package Contents | EZ482 Driver Disk User Manuals 2 x IDE/PATA Cable FDD Cable SATA Cable 4-pin to SATA Power Cable 2 x Power Cord Multi-Cable Screws Dust Cloth Other Accessories |
|---|
| First Listed on Newegg | July 29, 2005 |
|---|
