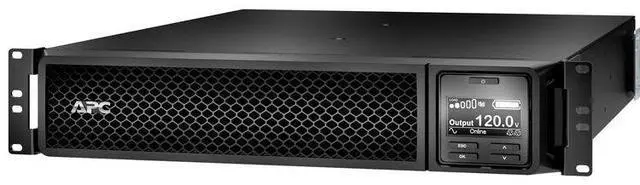

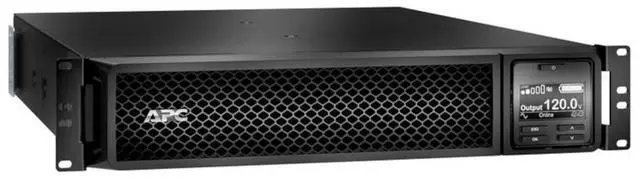

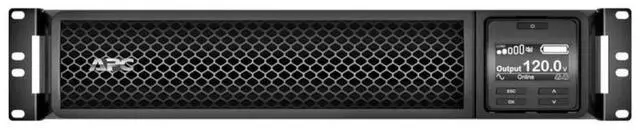

APC Smart-UPS On-Line, 2200VA, Rackmount 2U, 120V, 6x 5-20R+1x L5-20R NEMA outlets, SmartSlot, Extended runtime, W/ rail

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 2200VA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with NEMA 5-20P input, 6x NEMA 5-20R and 1x NEMA L5-20R outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.

2200VA/1800W double-conversion on-line pure sine wave 2U rackmount UPS

Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications

Rack/Tower convertible (rail kit included)

Delivers clean power with zero transfer time for critical or sensitive devices

Add up to 10 external battery packs (SRT72RMBP) for extended runtime

Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown









Controls/Indicators





Status Indicators



LCD Display





Interfaces/Ports





EPO Port



Yes





Management





Network Management



SmartSlot





Warranty





Additional Warranty Information



Battery: 24 month (s) |UPS: 36 month (s)





Environmental Conditions





Thermal Dissipation



156.79 W





Maximum Operating Temperature



104F (40C)





Maximum Operating Elevation



10000 ft





Maximum Storage Elevation



50000 ft





Sound Emission (A-Weighted)



55 dB (A)





General Information





Product Type



Double Conversion Online UPS





Manufacturer Part Number



SRT2200RMXLA





Manufacturer Website Address



http: //www. schneider-electric. com





Manufacturer



Schneider Electric SA





Product Name



Smart-UPS SRT 2200VA RM 120V





Product Line



Smart-UPS





Brand Name



APC by Schneider Electric





Power Description





Input Voltage



120 V AC





Output Voltage



120 V AC





Surge Energy Rating



340 J





Waveform Type



Sine Wave





Input Frequency



70 Hz





Load Capacity (VA)



2200 VA





Load Capacity (Watt)



1800 W





Battery Information





Battery Life



5 Year





Battery Chemistry



Lead Acid





Hot Swappable



Yes





Battery Energy



1101.6 kJ





Number of Batteries



1





Replaceable Battery



Yes





DC System Voltage



72 V DC





Typical Battery Recharge Time



3 Hour





Technical Information





Application/Usage



Network Workstation







Server





Plug/Connector Type



NEMA 5-20P





Cord Length



5.91 ft





Phase



Single Phase





Receptacle Type



NEMA 5-20P





Number of Battery Surge Outlets



7





Receptacle Detail

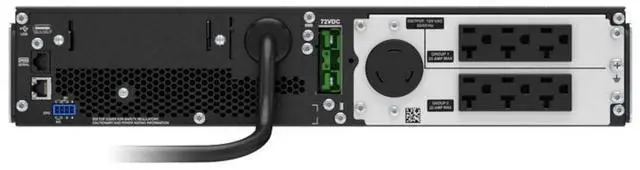

6 x NEMA 5-20R







1 x NEMA L5-20R





Physical Characteristics





Weight (Approximate)



55.01 lb





Form Factor



Rack-mountable





Rack Height



2U





Height



3.3





Width



17





Depth



23





Product Color



Black





Color Family



Black





Mounting Location



Front





Mounting Preference



Lower





Miscellaneous





Package Contents



Smart-UPS SRT 2200VA RM 120V

CD with software

Documentation CD

Installation guide

Rack mounting brackets

Rack mounting hardware

Rack mounting support rails

USB cable

Warranty card





Software Included



Powerchute Serial Edition





Certifications Standards



ENERGY STAR V 2.0 (USA)





Country of Origin



Philippines





Environmentally Friendly



Yes





Mercury
