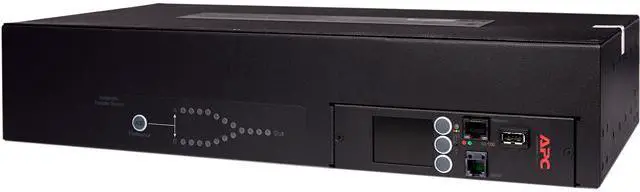

RACK ATS 208V 30A 2 L6-30P IN 1

Be the first to review this product...

This item is covered under the Manufacturer Only Return Policy.

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

MAIN OVERVIEW FEATURES:
Receptacles: 1 x
NEMA L6-30RInput Voltage: 208
V ACOutput Voltage: 208
V ACCurrent: 30
AColor: BlackForm
Factor: Rack-mountableRack
Height:
2UHeight: 3.5"W
idth:
17"Depth: 9.3"W
eight (Approximate): 14.30 lbPackage
Contents: Rack ATS, 208V, 30A, (2) L6-30P in, (1) L6-30R Out Mounting Hardware Rack Mounting Brackets RS-232 Configuration
Cable Environmentally Friendly: YesEnvironmental
Certification: RoHS, T? VLimited
Warranty: 2 Year

Model
Brand	APC
Model	AP4431

Details
Type	Basic
Rack Size	2U
Certifications	FCC Part 15 Class A, ICES-003, TUV-C, TUV-NURTL, VCCI Class A

Input
Input Voltage	280V
Input Frequency	50/60 Hz
Maximum Input Current	30A
Regulatory Derated Input Current	24A
Input Connector(s)	NEMA L6-30P
Cord Length	8.0 Feet

Output
Output Voltage	208V
Output Connector(s)	1 x NEMA L6-30R (Battery Backup)

Environmental
Operating Environment	-5 - 45 Degree Celcius
Operating Relative Humidity	0 - 95%
Operating Elevation	0 - 3000 m
Storage Temperature	-25 - 65 Degree Celcius
Storage Relative Humidity	0 - 95%
Storage Elevation	0 - 15000 m

Feature
Features	Rack-Mountable Occupys only 1U of valuable rack space. Puts the power where it is needed most - in the rack near the equipment. Dual Input Power Sources Supplies redundant AC power to connected equipment. Two AC lines power the unit and if the primary AC power fails, the unit will automatically switch to the alternative power source. Information Displays Indicates the status of the AC sources powering the units, as well as indicates which source is set as the primary source and which source is currently supplying power to the load. This provides a visual depiction of the power flow from the input to the load. This allows the user to quickly glance at the power flow and status of the input sources without connecting to the unit.

Dimensions & Weight
Dimensions	3.47" x 17.00" x 9.30"
Weight	14.30 lbs.

Additional Information
First Listed on Newegg	October 27, 2017
