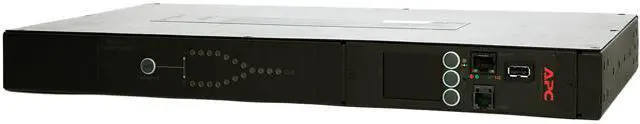

RACK ATS 208V 12A C14 IN 12 C13

Be the first to review this product...

208V
12A

This item is covered under the Manufacturer Only Return Policy.

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

MAIN OVERVIEW FEATURES:
Receptacles: 12 x IEC 60320
C13Input Voltage: 208
V ACOutput Voltage: 208
V ACCurrent: 12
AColor: BlackForm
Factor: Rack-mountableRack
Height:
1UHeight: 1.7"W
idth:
17"Depth: 9.3"W
eight (Approximate): 8.25 lbPackage
Contents: Rack ATS, 208V, 12A, C14 in, (12) C13 Out Mounting Hardware Rack Mounting Brackets Serial Configuration
Cable Environmentally Friendly: YesEnvironmental
Certification: RoHSLimited
Warranty: 2 Year

Model
Brand	APC
Model	AP4433

Details
Type	Basic
Rack Size	1U
Certifications	EN 55022 Class A, FCC Part 15 Class A

Input
Input Voltage	208V
Input Frequency	50/60 Hz
Maximum Input Current	12A
Input Connector(s)	IEC-320 C14

Output
Output Voltage	208V
Output Connector(s)	12 x IEC 320 C13 (Battery Backup)

Environmental
Operating Environment	-5 - 45 Degree Celcius
Operating Relative Humidity	5 - 95%
Operating Elevation	0 - 3000 m
Storage Temperature	-25 - 65 Degree Celcius
Storage Relative Humidity	5 - 95%
Storage Elevation	0 - 15000 m

Feature
Features	Rack-Mountable Occupys only 1U of valuable rack space. Puts the power where it is needed most - in the rack near the equipment. Dual Input Power Sources Supplies redundant AC power to connected equipment. Two AC lines power the unit and if the primary AC power fails, the unit will automatically switch to the alternative power source. Information Displays Indicates the status of the AC sources powering the units, as well as indicates which source is set as the primary source and which source is currently supplying power to the load. This provides a visual depiction of the power flow from the input to the load. This allows the user to quickly glance at the power flow and status of the input sources without connecting to the unit.

Dimensions & Weight
Dimensions	1.72" x 17.00" x 9.30"
Weight	8.25 lbs.
