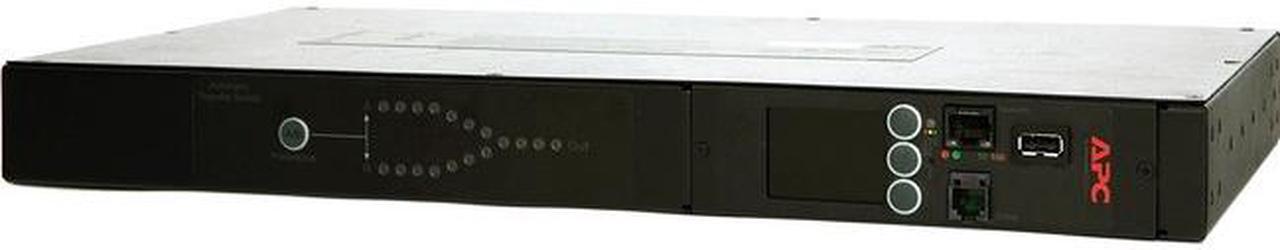

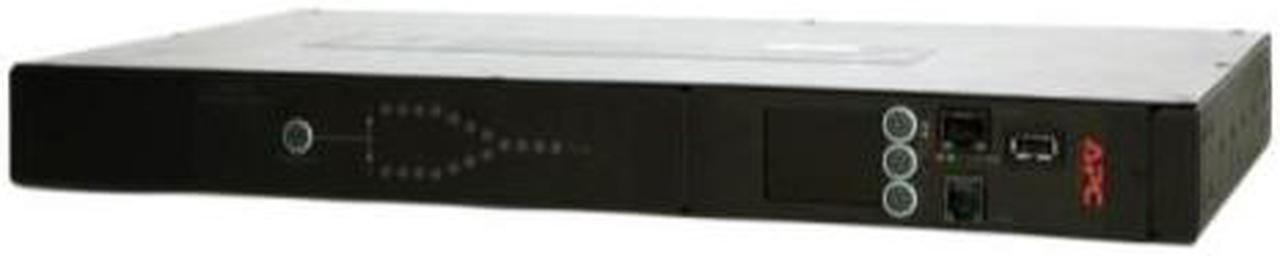

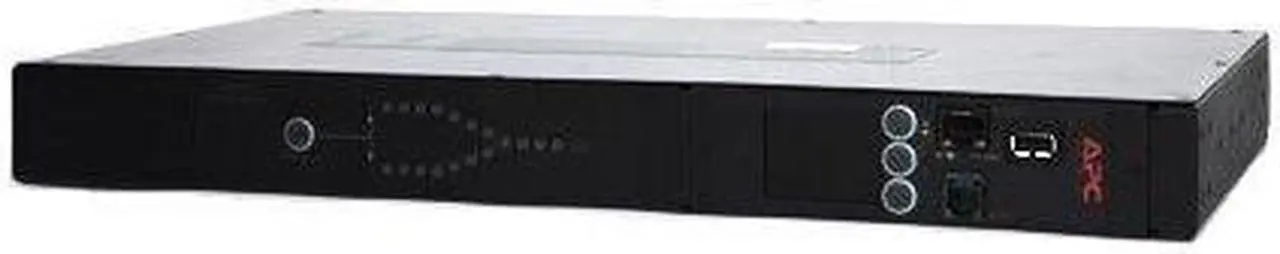

APC AP4434 Rack Automatic Transfer Switch - Redundant Switch (Rack-Mountable) - Ac 208 V - Ethernet 10/100, Rs-232, Usb - Output Connectors: 9 - 1U - Black

Be the first to review this product...

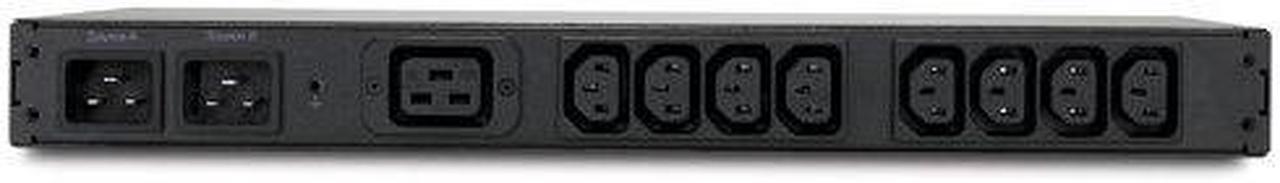

Rack ATS, 208V, 20A, C20 in, (8) C13 (1) C19 out

Overview

Specs

Reviews

MAIN OVERVIEW FEATURES:
Receptacles: 1 x IEC 60320 C198 x IEC 60320
C13Input Voltage: 208
V ACOutput Voltage: 208
V ACCurrent: 20
AColor: BlackForm
Factor: Rack-mountableRack
Height:
1UHeight: 1.7"W
idth:
17"Depth: 9.3"W
eight (Approximate): 8.25 lbPackage
Contents: Rack ATS, 208V, 20A, C20 in, (8) C13 (1) C19 out Mounting Hardware Rack Mounting Brackets Serial Configuration
Cable Environmentally Friendly: YesEnvironmental
Certification: RoHSLimited
Warranty: 2 Year

Model
Brand	APC
Model	AP4434

Details
Type	Basic
Rack Size	1U
Certifications	cUL Listed, CE, EN 55022 Class A, FCC Part 15 Class A, UL Listed

Input
Input Voltage	208V
Input Frequency	50/60 Hz
Maximum Input Current	20A
Input Connector(s)	IEC-320 C20

Output
Output Voltage	208V
Output Connector(s)	1 x IEC 320 C19 (Battery Backup) 8 x IEC 320 C13 (Battery Backup)

Environmental
Operating Environment	-5 - 45 Degree Celcius
Operating Relative Humidity	5 - 95%
Operating Elevation	0 - 3000 m
Storage Temperature	-25 - 65 Degree Celcius
Storage Relative Humidity	5 - 95%
Storage Elevation	0 - 15000 m

Feature
Features	Rack-Mountable Occupys only 1U of valuable rack space. Puts the power where it is needed most - in the rack near the equipment. Dual Input Power Sources Supplies redundant AC power to connected equipment. Two AC lines power the unit and if the primary AC power fails, the unit will automatically switch to the alternative power source. Information Displays Indicates the status of the AC sources powering the units, as well as indicates which source is set as the primary source and which source is currently supplying power to the load. This provides a visual depiction of the power flow from the input to the load. This allows the user to quickly glance at the power flow and status of the input sources without connecting to the unit.

Dimensions & Weight
Dimensions	1.72" x 17.00" x 9.30"
Weight	8.25 lbs.

Additional Information
Date First Available	December 27, 2018
