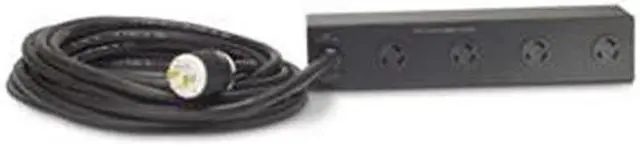

APC AP7584 Basic 2U 208V 30A 28 ft PDU Extender

Be the first to review this product...
  • 208V
  • 30A
  • 28 ft
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the APC AP7584

Model
Brand APC
Model AP7584
Details
Type Basic
Rack Size 2U
Style Rack
Rack Mounting Kit Includes: Installation guide, Rack Mounting brackets
Certifications cUL Listed, CSA C22.2 No. 107.1, METI Denan, UL 1778, UL Listed
ROHS Yes
Input
Input Voltage 200V, 208V, 230V
Input Frequency 50/60 Hz
Maximum Input Current 30A
Regulatory Derated Input Current 24A
Input Connector(s) NEMA L14-30P
Cord Length 28 ft
Output
Output Voltage 208V
Output Watts (VA) 4992 VA
Output Connector(s) (4) NEMA L6-30R
Environmental
Operating Environment 32 - 113 °F (0 - 45 °C)
Operating Relative Humidity 0 - 95%
Operating Elevation 0-10000 feet (0-3000 meters)
Storage Temperature 13 - 149 °F (-25 - 65 °C)
Storage Relative Humidity 0 - 95%
Storage Elevation 0-50000 feet (0-15000 meters)
Feature
Features Vertical mounting capability

Horizontal mounting capability

Rack-Mountable - Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.

Single input power source - Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.

Wide range of input and output connections
Dimensions & Weight
Dimensions 17.2" x 3.5" x 3.5"
Weight 14 lbs.
Additional Information
First Listed on Newegg October 22, 2010
