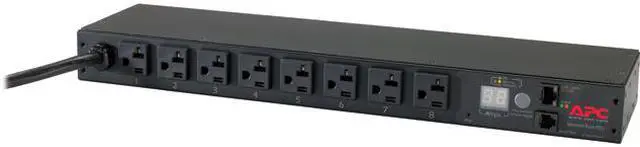

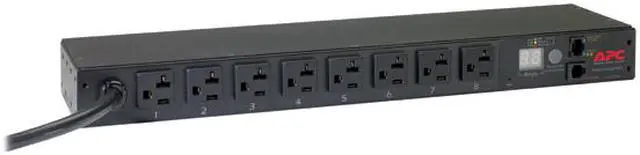

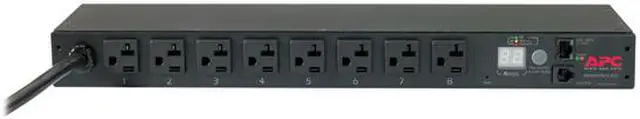

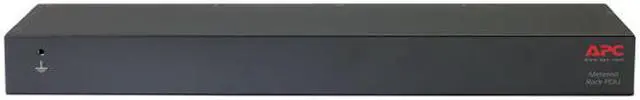

Learn more about the APC AP7801
| Brand | APC |
|---|---|
| Model | AP7801 |
| Type | Metered |
|---|---|
| Rack Size | 1U |
| Style | Rackmount |
| Certifications | cUL Listed, CSA, FCC Part 15 Class A, ICES-003, UL 60950, UL Listed |
| ROHS | Yes |
| Input Voltage | 100V, 120V |
|---|---|
| Input Frequency | 50/60 Hz |
| Maximum Input Current | 20A |
| Regulatory Derated Input Current | 16A |
| Input Connector(s) | NEMA L5-20P |
| Cord Length | 12 ft |
| Output Voltage | 120V |
|---|---|
| Output Connector(s) | (8) NEMA 5-20R |
| Overload Protection | No |
| Operating Environment | -5 - 45 ºC |
|---|---|
| Operating Relative Humidity | 5 - 95% |
| Operating Elevation | 0 - 3000 m |
| Storage Temperature | -25 - 65 ºC |
| Storage Relative Humidity | 5 - 95% |
| Storage Elevation | 0 - 15000 m |
| Features | Power Rating: 1.92 kVAForm Factor: Rack-mountableRack Height: 1UHeight: 1.7" (44 mm)Width: 17.5" (444 mm)Depth: 4" (102 mm)Weight (Approximate): 1.73 kg |
|---|
| Dimensions | 1.73" x 17.48" x 4.02" |
|---|---|
| Weight | 3.81 lbs. |
| First Listed on Newegg | January 30, 2012 |
|---|
