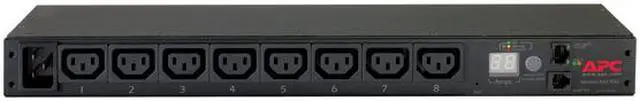

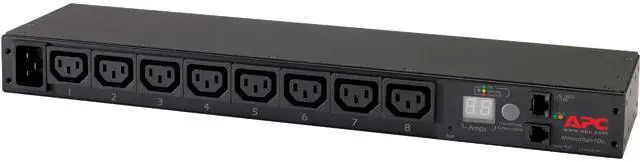

APC AP7821 Metered 1U 208V,230V 20A Rack 16A Power Distribution Unit
- 208V,230V
- 20A
+
+
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the APC AP7821
| Brand | APC |
|---|---|
| Model | AP7821 |
| Type | Metered |
|---|---|
| Rack Size | 1U |
| Certifications | cUL Listed,C-tick,CE,CSA,FCC Part 15 Class A,GOST,ICES-003,UL 60950,UL Listed,VCCI,VDE |
| ROHS | Yes |
| Input Voltage | 200V,208V,230V |
|---|---|
| Input Frequency | 50/60 Hz |
| Maximum Input Current | 20A |
| Regulatory Derated Input Current | 16A |
| Input Connector(s) | IEC-320 C20 |
| Output Voltage | 208V,230V |
|---|---|
| Output Connector(s) | (8) IEC 320 C13 |
| Operating Environment | -5 - 45 ºC |
|---|---|
| Operating Relative Humidity | 5 to 95% |
| Operating Elevation | 0 - 3000 m |
| Storage Temperature | -13°F (-25°C) to 149°F (65°C) |
| Storage Relative Humidity | 5 - 95% |
| Storage Elevation | 0 - 15000 m |
| Features | The American Power Conversion (APC) Metered Rack Power Distribution Unit (PDU) distributes power to devices in the rack. It has a sensor that measures the current used by the PDU and its attached devices. It can be monitored through Web, Telnet, SNMP, SSH, or InfraStruXure Manager interfaces. Alarm Thresholds Flash Upgradeable Horizontal Mounting Capability Local Current Monitoring Display Network Management |
|---|
| Dimensions | 17.48" x 4.02" x 1.73" |
|---|---|
| Weight | 1.74 lbs |
| First Listed on Newegg | December 04, 2025 |
|---|
