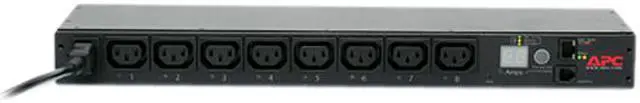

Main image of APC Rack Mount PDU, Switched Rack 208V-230V, 15A, (8) Outlets, 1U Horizontal Rackmount (AP7920)

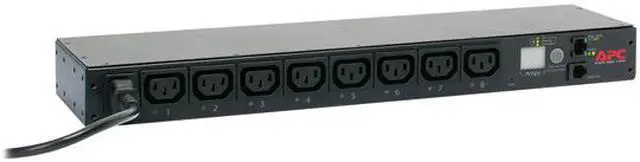

Alt view image 2 of 4 - APC Rack Mount PDU, Switched Rack 208V-230V, 15A, (8) Outlets, 1U Horizontal Rackmount (AP7920)

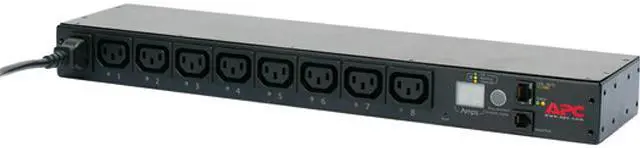

Alt view image 3 of 4 - APC Rack Mount PDU, Switched Rack 208V-230V, 15A, (8) Outlets, 1U Horizontal Rackmount (AP7920)

Alt view image 4 of 4 - APC Rack Mount PDU, Switched Rack 208V-230V, 15A, (8) Outlets, 1U Horizontal Rackmount (AP7920)

Shop All APC Products

APC Rack Mount PDU, Switched Rack 208V-230V, 15A, (8) Outlets, 1U Horizontal Rackmount (AP7920)

Be the first to review this product...

208V-230V Input, Switched Single-Phase 15A rackmount Power Distribution Unit
Input: IEC-320 C14 (2.3 kW)
Output Receptacles: Eight (8) C13 Outlets
1U Horizontal Mounting PDU
Cord Length: 6.5'

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Model
Brand	APC
Model	AP7920

Details
Type	Switched
Rack Size	1U
Style	Rack
Remote Management Protocol	HTTP, SNMP & Telnet
Rack Mounting Kit	Includes: Installation guide, Rack Mounting brackets, User Manual
Certifications	cUL Listed, CE, CSA, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, GOST, IRAM, MIC, UL 60950, UL Listed, VDE, VCCI
ROHS	RoHS 7b Exemption, China RoHS

Input
Input Voltage	200V, 208V, 230V
Input Frequency	50/60 Hz
Maximum Input Current	15A
Regulatory Derated Input Current	12A
Input Connector(s)	(1) IEC-320 C14
Cord Length	6.5 ft

Output
Output Voltage	208V, 230V
Output Watts (VA)	2300 VA
Output Connector(s)	(8) IEC 320 C13

Environmental
Operating Environment	32 - 113 °F (0 - 45 °C)
Operating Relative Humidity	0 - 95%
Operating Elevation	0-10000 feet (0-3000 meters)
Storage Temperature	-13 - 149 °F (-25 - 65 °C)
Storage Relative Humidity	0 - 95%
Storage Elevation	0-50000 feet (0-15000 meters)

Feature
Features	Network Management Remote Individual Outlet Control Alarm Thresholds Local Current Monitoring Display Load indicator LED Flash Upgradeable Integrates with InfraStruXure Central Horizontal mounting capability

Dimensions & Weight
Dimensions	17.5" x 4.25" x 1.73"
Weight	5 lbs.

Additional Information
First Listed on Newegg	October 29, 2010
