APC AP8661 Switched, Metered 0U 208V 20A 6 ft Metered-by-Outlet Rack PDU

Be the first to review this product...

208V
20A
6 ft

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

PDU2G SWITCH 0U 5.7KW 208V 21C13 3C19

Model
Brand	APC
Model	AP8661

Details
Type	Switched, Metered
Rack Size	0U
Style	Rackmount
Certifications	cUL Listed, FCC Part 15 Class A, ICES-003, UL Listed, VCCI Class A
ROHS	Yes

Input
Input Voltage	208V
Input Frequency	50/60 Hz
Maximum Input Current	20A
Regulatory Derated Input Current	16A

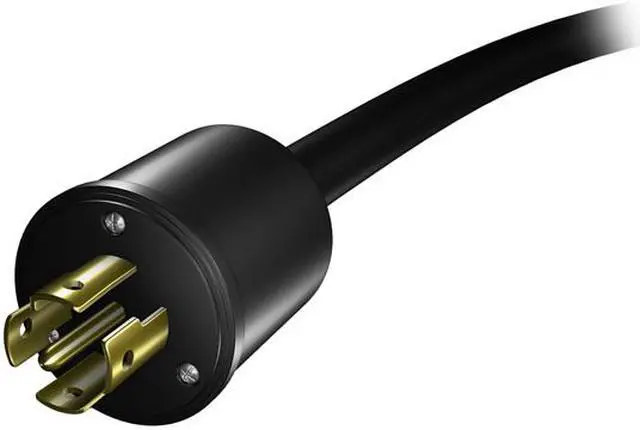

Input Connector(s)	NEMA L21-20P
Cord Length	6 ft

Output
Output Voltage	208V
Output Frequency	50/60Hz
Output Connector(s)	(21) IEC 320 C13 (3) IEC 320 C19
Overload Protection	No

Environmental
Operating Environment	-5 - 45 ºC
Operating Relative Humidity	5 - 95%
Operating Elevation	0 - 3000 m
Storage Temperature	-25 - 65 ºC
Storage Relative Humidity	5 - 95%
Storage Elevation	0 - 15000 m

Feature
Features	APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering. Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment. Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles. User-defined alarms warn of potential circuit overloads before critical IT failures occur. Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager.

Dimensions & Weight
Dimensions	72.01" x 2.2" x 2.01"
Weight	15,74 lbs.

Additional Information
First Listed on Newegg	December 26, 2012

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 2 years
Limited Warranty period (labor): 2 years
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's 30-Day Return Policy. Read full return policy for details.

Manufacturer Contact Info

Manufacturer Product Page
Manufacturer Website
Support Phone: 1-800-555-2725
