Main image of APC Rack Mount PDU, Switched Rack 200V-230V/30A, (24) Outlets, 0U Vertical Rackmount (AP8941)

Alt view image 2 of 4 - APC Rack Mount PDU, Switched Rack 200V-230V/30A, (24) Outlets, 0U Vertical Rackmount (AP8941)

Alt view image 3 of 4 - APC Rack Mount PDU, Switched Rack 200V-230V/30A, (24) Outlets, 0U Vertical Rackmount (AP8941)

Alt view image 4 of 4 - APC Rack Mount PDU, Switched Rack 200V-230V/30A, (24) Outlets, 0U Vertical Rackmount (AP8941)

Shop All APC Products

APC Rack Mount PDU, Switched Rack 200V-230V/30A, (24) Outlets, 0U Vertical Rackmount (AP8941)

Be the first to review this product...

200V-230V Input, Switched Single-Phase 30A rackmount Power Distribution Unit

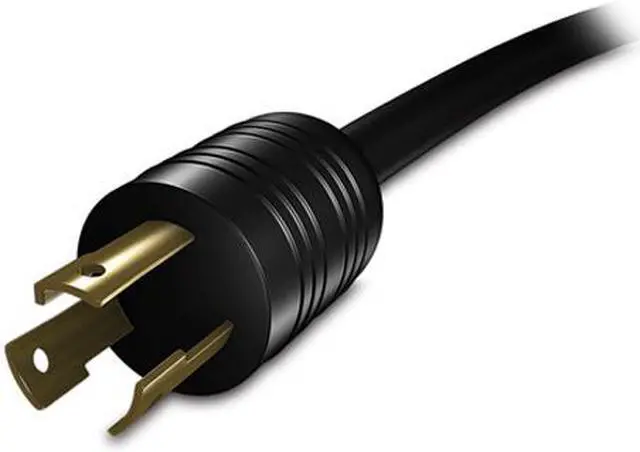

Input: NEMA L6-30P (5.0 kW)
Output Receptacles: Twenty-One (21) C13 Outlets, and three (3) C19 Outlets
0U Vertical Mounting PDU
Cord Length: 9.8'

This item is covered under the Manufacturer Only Return Policy.

Overview

Specs

Reviews

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

APC Switched Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and active monitoring.

Model
Brand	APC
Series	Switched Rack PDU
Model	AP8941

Details
Type	Switched
Rack Size	0U
Style	Rack-mountable
Certifications	cUL Listed,FCC Part 15 Class A,ICES-003,PSE,UL Listed,VCCI Class A
ROHS	Yes

Input
Input Voltage	200V,208V,230V
Input Frequency	50/60 Hz
Regulatory Derated Input Current	24A
Input Connector(s)	NEMA L6-30P
Cord Length	10 ft

Output
Output Voltage	200V,208V
Output Connector(s)	(21) IEC 320 C13 (3) IEC 320 C19
Overload Protection	30A

Environmental
Operating Environment	23 - 113 °F (-5 - 45 °C)
Operating Relative Humidity	5 - 95%
Operating Elevation	0-10000 feet (0-3000 meters)
Storage Temperature	-13 - 149 °F (-25 - 65 °C)
Storage Relative Humidity	5 - 95%
Storage Elevation	0-50000 feet (0-15000 meters)

Feature
Features	APC Switched Rack PDU , Input: 200V, 208V, 230V , Input Connections: NEMA L6-30P , Cord Length: 10 feet ( 3.05 meters ) , Output: 200V, 208V , Output Connections: IEC 320 C13,IEC 320 C19 Includes: Installation guide, Rack Mounting brackets, Safety guide, Sample locking IEC power cord, Serial configuration cable

Dimensions & Weight
Dimensions	72" x 2.2" x 1.82"(H x W x D)
Weight	16.80 lbs.

Additional Information
First Listed on Newegg	February 24, 2011

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 2 years
Limited Warranty period (labor): 2 years
