Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Sold by Newegg

Shipped by Newegg

Add to wish list

Main image of APC AP8961 Switched 0U 208V 6 ft Power Distribution Unit

Alt view image 2 of 3 - APC AP8961 Switched 0U 208V 6 ft Power Distribution Unit

Alt view image 3 of 3 - APC AP8961 Switched 0U 208V 6 ft Power Distribution Unit

Shop All APC Products

APC AP8961 Switched 0U 208V 6 ft Power Distribution Unit

Be the first to review this product...

208V
1.83 meters
50/60 Hz

This item is covered under the Manufacturer Only Return Policy.

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

AMERICAN POWER CONVERSION RACK PDU 2G, SWITCHED, ZEROU
RACK PDU 2G, SWITCHED, ZEROU

Manufacturer : AMERICAN POWER CONVERSION
UPC : 731304277163

Model
Brand	APC
Model	AP8961

Details
Type	Switched
Rack Size	0U
Certifications	cUL Listed,FCC Part 15 Class A,ICES-003,UL Listed,VCCI Class A
ROHS	Yes

Input
Input Voltage	208V 3PH
Input Frequency	50/60 Hz
Regulatory Derated Input Current	16A

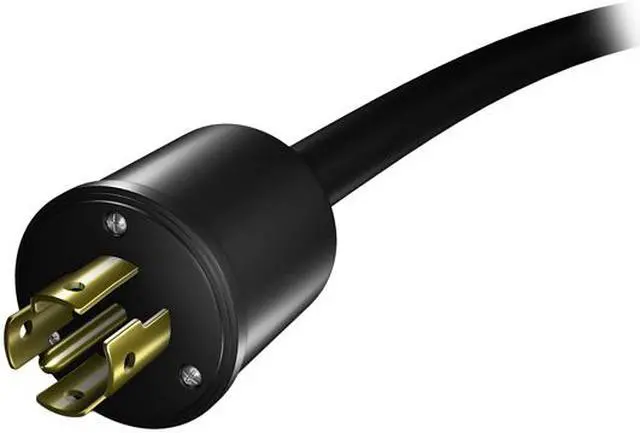

Input Connector(s)	NEMA L21-20P
Cord Length	6 ft

Output
Output Voltage	208V
Output Connector(s)	(21) IEC 320 C13, (3) IEC 320 C19

Environmental
Operating Environment	-5 - 45 ºC
Operating Relative Humidity	5 - 95%
Operating Elevation	0 - 3000 m
Storage Temperature	-25 - 65 ºC
Storage Relative Humidity	0 - 95%
Storage Elevation	0 - 15000 m

Feature
Features	Network Management: Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements. Remote Individual Outlet Control: Remotely manage outlets so users can turn outlets off that are not in use (prevent overloads) or recycle power to locked-up equipment (minimize costly downtime and avoid travel time to equipment). Alarm Thresholds: Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems. (Note: Only available on units with the current monitoring capabilities. Please see SKU specifications for availability) Local Current Monitoring Display: The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip. (Available on designated SKUs only) Power Delays: Allows users to configure the sequence in which power is turned on or off for each outlet. This helps avoid in-rushes at start-up, which can cause overloaded circuits and dropped loads. Sequencing also allows users to predetermine which piece of equipment is turned on first so other equipment dependant on that unit will function properly. Load indicator LED: Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.

Dimensions & Weight
Dimensions	70.51" x 2.2" x 1.81"
Weight	15.23 lbs.

Additional Information
First Listed on Newegg	April 13, 2011

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 2 years
Limited Warranty period (labor): 2 years
Read full details

Return Policies

Contact Manufacturer for Assistance

This item is covered by Newegg.com's Manufacturer Only Return Policy.
Read full return policy for details.

Manufacturer Contact Info

Manufacturer Product Page
Manufacturer Website
Support Phone: 1-800-555-2725
Support Website
