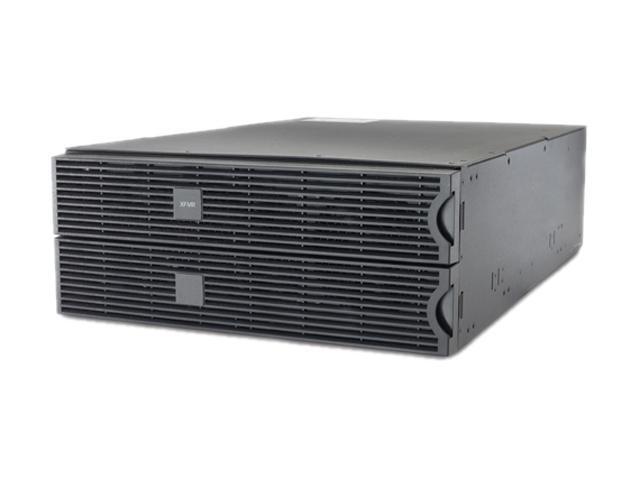

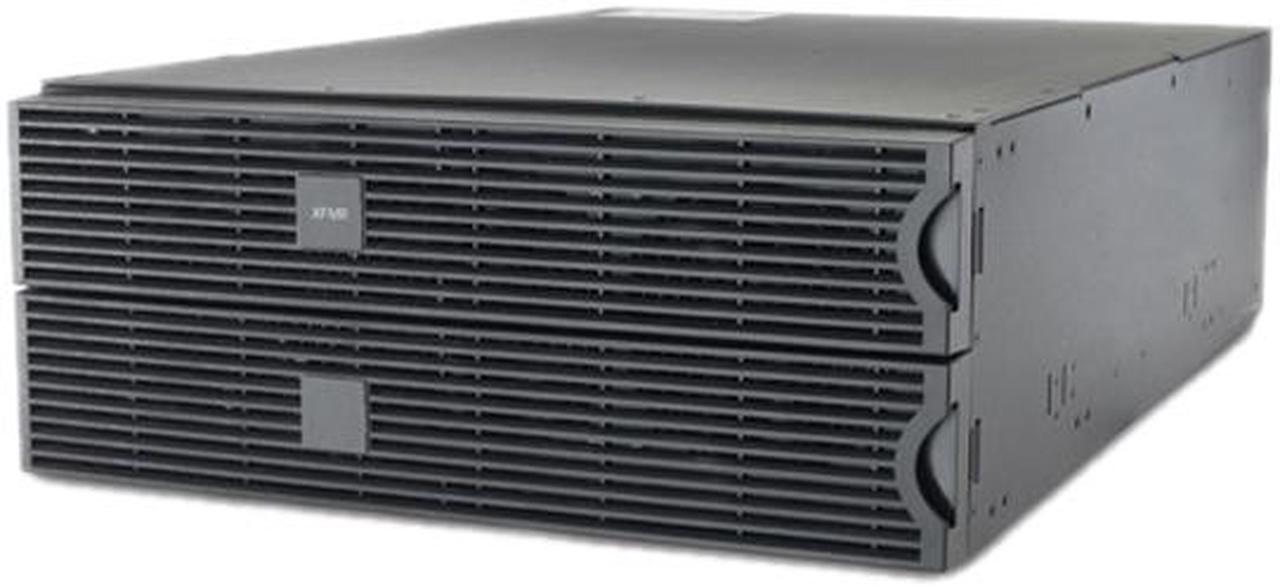

APC APTF10KT01 208V/120V 10KVA Step down Transformer
- Nominal Input Voltage: 208V
- Input Frequency: 45 - 65 Hz
- Input Connections: Hard Wire 3-wire (2PH + G)
- Acceptable Input Voltage: 200-240 VAC
- Maximum Line Current per phase: 60A
- Maximum Input Current per phase: 60A
- Load Capacity: 10 kVA
Specs
Reviews
Learn more about the APC APTF10KT01
| Brand | APC |
|---|---|
| Model | APTF10KT01 |

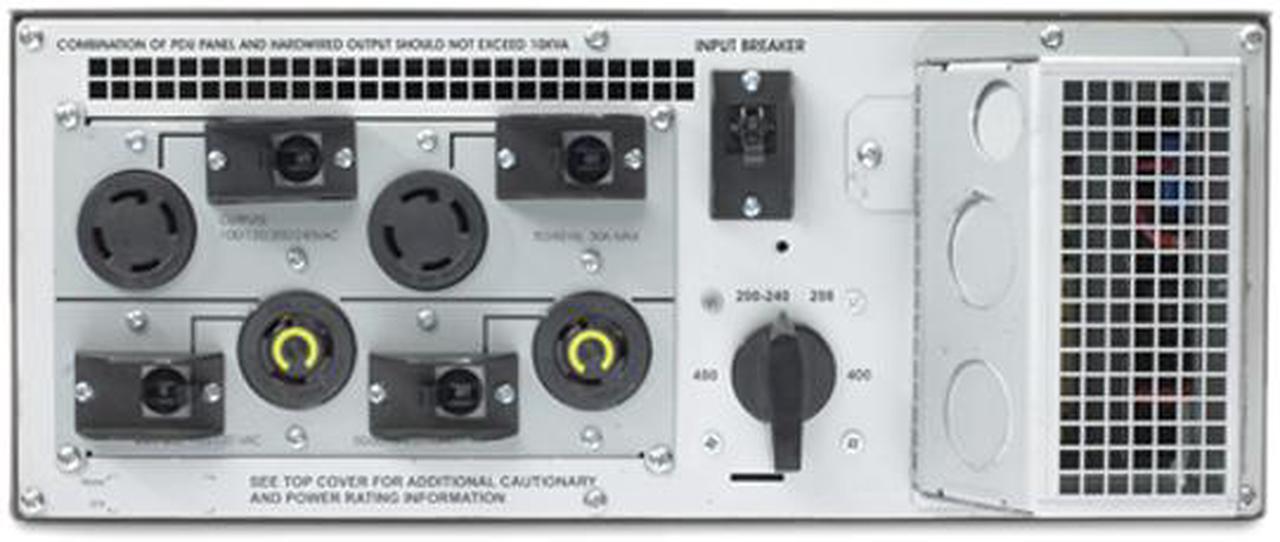

| Outlet | Output Connections: (1) Hard Wire 3-wire (2PH + G) (1) Hard Wire 4-wire (2PH + N +G) (2) NEMA L14-30R (2) NEMA L5-20R Always on Outlets 4 |
|---|---|
| Input | Nominal Input Voltage: 208V Input Frequency: 45 - 65 Hz Input Connections: Hard Wire 3-wire (2PH + G) Acceptable Input Voltage: 200-240 VAC Maximum Line Current per phase: 60A Maximum Input Current per phase: 60A Load Capacity: 10 kVA |
| Output Voltage | 120V,208V,240V |
| Features | Rack-Mountable: Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment. Transformer for Step-down or Step-up or Isolation: Step down transformer placed upstream of the UPS to avoid inrush current and saturation eliminating need to oversize transformer Heavy duty design: The Vault Lock’s heavy duty hardened steel construction provides the highest degree of portable tampering protection available on the market. |
|---|
| Date First Available | April 18, 2011 |
|---|
