Is this sc620 generator compatable ?

Yes it is. Some generators do not put out a completely stable voltage this will usually cause a UPS to constantly try to compensate for the difference; this UPS (through the included software) will allow the voltage sensitivity to be adjusted so that the UPS will ignore minor fluctuations in voltage.

Does this produce a full or approximated sine wave output? Is it active PFC compatible?

it outputs a stepped sine wave. I read that is not compatible with active PFC.

Will this back up battery keep the computer running when the power goes out. The back up battery I now have apc Back ups ES 350 does not stop the computer from shutting down during a power outage?

This should keep the computer on. APC software is made to safely shutdown the computer after a certain period of time if the power is not restored.

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list

Sold by Newegg

Shipped by Newegg

Main image of APC Smart-UPS SC620 620VA 390 Watts 4 Outlets UPS

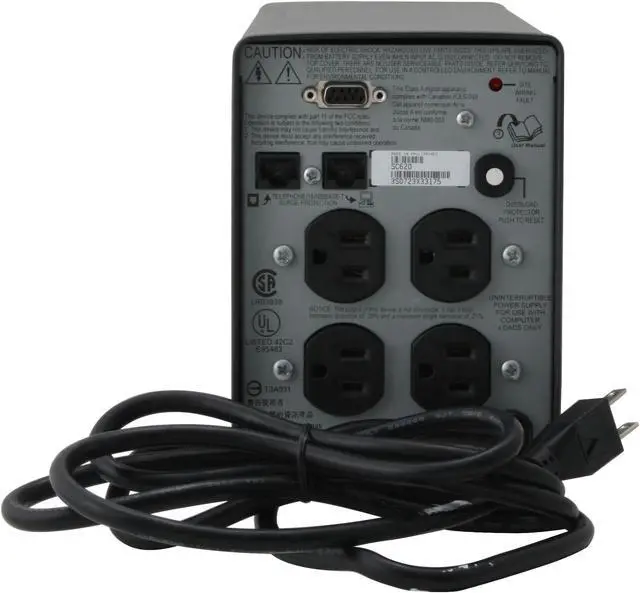

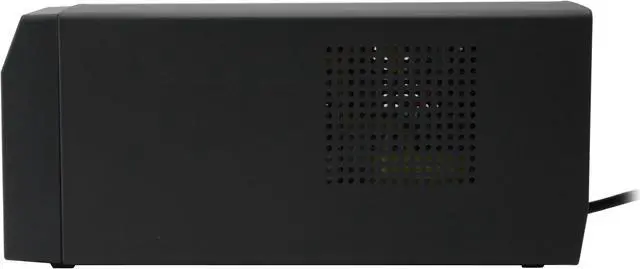

Alt view image 2 of 10 - APC Smart-UPS SC620 620VA 390 Watts 4 Outlets UPS

Alt view image 3 of 10 - APC Smart-UPS SC620 620VA 390 Watts 4 Outlets UPS

Alt view image 4 of 10 - APC Smart-UPS SC620 620VA 390 Watts 4 Outlets UPS

Alt view image 5 of 10 - APC Smart-UPS SC620 620VA 390 Watts 4 Outlets UPS

Alt view image 6 of 10 - APC Smart-UPS SC620 620VA 390 Watts 4 Outlets UPS

Alt view image 7 of 10 - APC Smart-UPS SC620 620VA 390 Watts 4 Outlets UPS

Alt view image 8 of 10 - APC Smart-UPS SC620 620VA 390 Watts 4 Outlets UPS

Alt view image 9 of 10 - APC Smart-UPS SC620 620VA 390 Watts 4 Outlets UPS

Alt view image 10 of 10 - APC Smart-UPS SC620 620VA 390 Watts 4 Outlets UPS

Shop All APC Products

APC Smart-UPS SC620 620VA 390 Watts 4 Outlets UPS

(3) Write a Review

390 Watts /620 VA
(4) NEMA 5-15R
Input 120V /Output 120V
Interface Port DB-9 RS-232

This item is covered under the Manufacturer Only Return Policy.

Overview

Specs

Reviews (3)

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

Smart-UPS SC 620VA 120V.

Model
Brand	APC
Series	Smart-UPS
Model	SC620

Input
Input Voltage Range	82 - 144V
Input Frequency	50/60 Hz +/- 3 Hz (auto sensing)

Output
VA Rating	620VA
Watts	390 Watts
Output Voltage	120Vac +/- 5%
Outlets	4

Battery
Battery Type	Sealed Lead Acid
Battery Run Time	5.5 minutes (390 Watts)
Battery Recharge Time	5 hour(s)

Details
Interface Port	RS-232
Management Software	YES
Approvals	CSA,FCC Part 15 Class A,UL 1778

Surge Protection
Data Line Protection	RJ-45 Modem/Fax/DSL/10-100 Base-T protection
Surge Energy Rating	412 Joules

Features

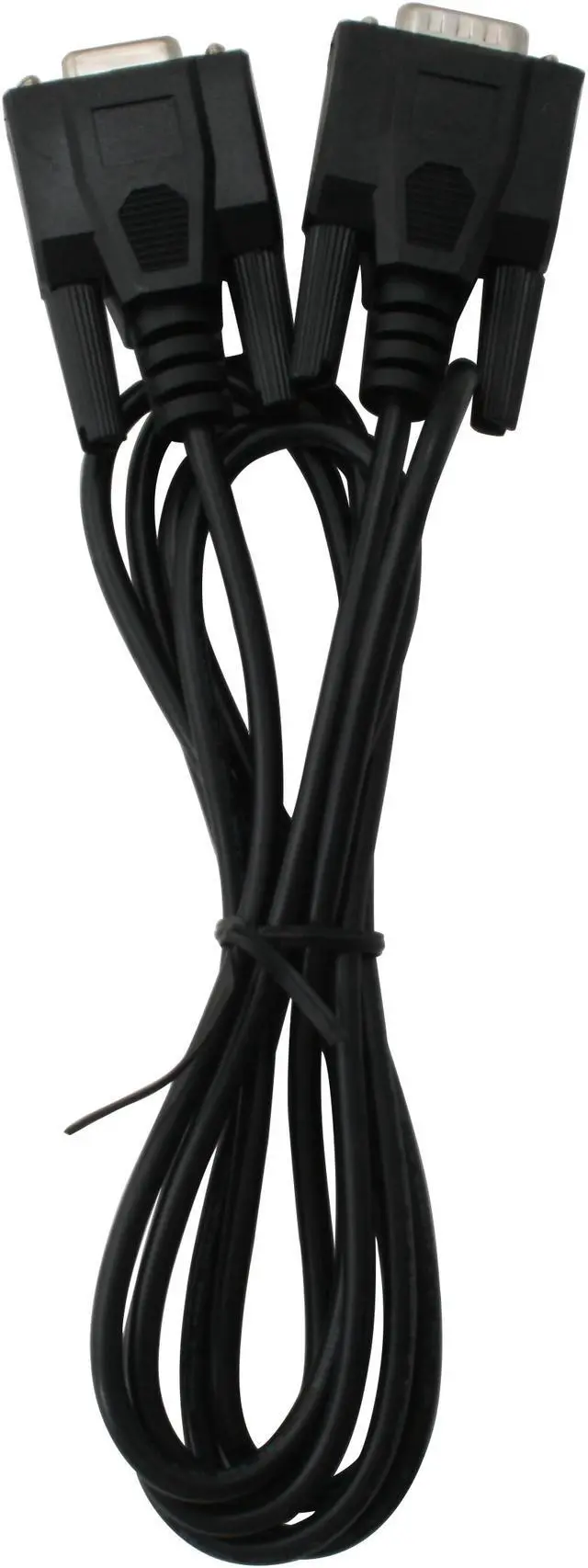

Features	Receptacles: 4 x NEMA 5-15RLoad Capacity (VA): 620 VALoad Capacity (Watt): 390 WInput Voltage: 110 V ACOutput Voltage: 120 V ACBackup/Run Time (Full Load): 5.50 MinuteHeight: 7" (177.8 mm)Width: 5" (127 mm)Depth: 15" (381 mm)Weight (Approximate): 12.25 kgPackage Contents: APC Smart UPS SC 620VA 120VCD with softwareSmart UPS signalling RS-232 cableUser ManualLimited Warranty: 2 Year

Dimensions & Weight
Weight	26.65

Package Contents
Package Contents	91128L

Additional Information
First Listed on Newegg	August 12, 2006
