Will this fit into a standard 19inch rack like Tripp Lite SRW12US?

The following should be verified, but it appears that SRW12US is a 2 post rack, which means it could be a little interesting. The UPS comes with sliding rails that are designed for 4 post racks and when mounting in a two post system - one should move the mounting brackets from the face to holes prepared about halfway between the front and rear (to balance the ~70 lbs unit). The problem with this is that you will not be able to close the front door since the UPS will be sticking out. … Overall, can it work. Yes we use a similar sized model in a two post rack and just lay it on the bottom of the rack rather than bolt it to the posts, just make sure the depth is acceptable.

Is this unit network manageable without any extras? or does it require the use of a smart slot card?

This unit comes with the smart card already.

$499^.00

Free 30-day Returns

Limit 99999 per customer.

Price alert

Add to wish list

Sold by inStock901

4.5 (533 seller ratings)

Shipped by inStock901

Meet Your Seller

inStock901

See Seller Store

Main image of APC UPS, 1500 VA Smart-UPS Sine Wave UPS Battery Backup with Extended Run Option, 2U Rackmount/Tower Convertible, Line-Interactive, 120V (SMX1500RM2U)

Alt view image 2 of 5 - APC UPS, 1500 VA Smart-UPS Sine Wave UPS Battery Backup with Extended Run Option, 2U Rackmount/Tower Convertible, Line-Interactive, 120V (SMX1500RM2U)

Alt view image 3 of 5 - APC UPS, 1500 VA Smart-UPS Sine Wave UPS Battery Backup with Extended Run Option, 2U Rackmount/Tower Convertible, Line-Interactive, 120V (SMX1500RM2U)

Alt view image 4 of 5 - APC UPS, 1500 VA Smart-UPS Sine Wave UPS Battery Backup with Extended Run Option, 2U Rackmount/Tower Convertible, Line-Interactive, 120V (SMX1500RM2U)

Alt view image 5 of 5 - APC UPS, 1500 VA Smart-UPS Sine Wave UPS Battery Backup with Extended Run Option, 2U Rackmount/Tower Convertible, Line-Interactive, 120V (SMX1500RM2U)

Customer images

Shop All APC Products | Visit InStock901 Store

APC UPS, 1500 VA Smart-UPS Sine Wave UPS Battery Backup with Extended Run Option, 2U Rackmount/Tower Convertible, Line-Interactive, 120V (SMX1500RM2U)

Used - Like New

Item is Recondition and Professionally Refurbished, in like New Condition with all original Accessories Brand New Batteries(1Year Warranty on Batteries and 90Day on UPS)

Options: SMX1500RM2U

SMX1500RM2U
SMX1500RM2UNC
SMX2000LV
SMX2000LVNC
SMX2000RMLV2U
SMX2000RMLV2UNC
SMX2200HV
SMX2200RMHV2U
SMX2200RMLV2U
SMX2200R2HVNC
SMX2200HVNC
SMX3000HV
SMX3000LV
SMX3000LVNC
SMX3000RMHV2U
SMX3000RMLV2U
SMX3000RMLV2UNC
SMX3000RMHV2UNC
SMX3000HVNC
SMX3000HVT

1500 VA / 1200W Pure Sine Wave UPS Battery Backup
Smart-UPS Extended Run Option: Extended run models accept external battery packs (model SMX48RMBP2U, sold separately) for a longer runtime, to power critical servers, security, and comm. systems through prolonged outages
Input: NEMA 5-15P. Output: NEMA 5-15R (8)
2U Rackmount. Rail kit included

Overview

Specs

Any questions? Our AI beta will help you find out quickly.

Try me now

Smart-UPS X 1500VA Rack/Tower LCD 120V . 1200 Watts / 1500 VA,Input 120V / Output 120V, Extended runtime model, Rack Height 2 U

Model
Brand	APC
Series	Smart-UPS
Model	SMX1500RM2U

Input
International Version	120V
Input Voltage Range	82 - 143V Adjustable range: 75 - 154V
Input Frequency	50/60 Hz +/- 3 Hz (auto sensing)
Input Connection	NEMA 5-15P

Output
VA Rating	1440 VA
Watts	1200 Watts
Output Voltage	120V
Output Frequency	50/60Hz +/- 3 Hz
Outlets	8
Outlet Type	NEMA 5-15R

Battery
Battery Recharge Time	3 hour(s)
Battery Replaceable	APCRBC115

Details
Alarms	Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Interface Port	Smart-Slot, USB
Rackmountable	2U

Surge Protection
Surge Energy Rating	645 Joules

Features
Features	Receptacles: 8 x NEMA 5-15RLoad Capacity (VA): 1500 VALoad Capacity (Watt): 1200 WInput Voltage: 110 V ACOutput Voltage: 120 V ACBackup/Run Time (Full Load): 5.80 MinuteMaximum Battery Recharge Time: 3 HourHeight: 3.5" (88.9 mm)Width: 17" (431.8 mm)Depth: 19.3" (490.2 mm)Rack Height: 2UForm Factor: Tower/Rack MountableWeight (Approximate): 24.77 kgPackage Contents: Smart-UPS X 1500 VA Tower/Rack Mountable UPSCD with SoftwareDocumentation CDInstallation GuideRack Mounting HardwareRack Mounting Support RailsRemovable Support FeetUSB CableGreen Compliant: YesGreen Compliance Certificate/Authority: ENERGY STARLimited Warranty: 3 Year

Dimensions & Weight
Dimensions	3.50" x 17.01" x 19.29" (H x W x D)
Weight	54.72 lbs.

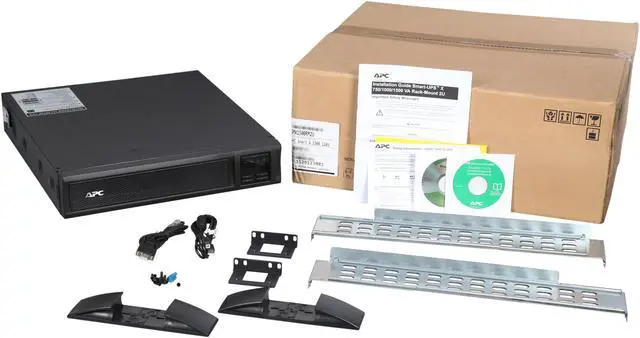

Package Contents
Package Contents	91133L
