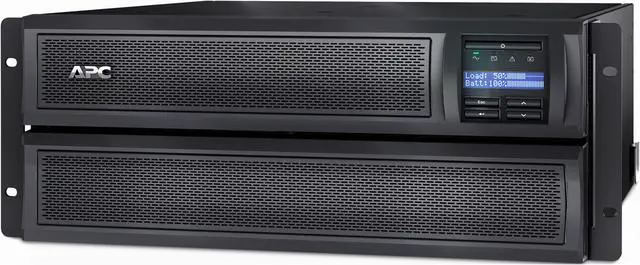

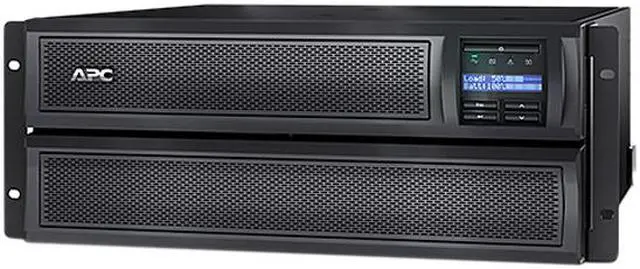

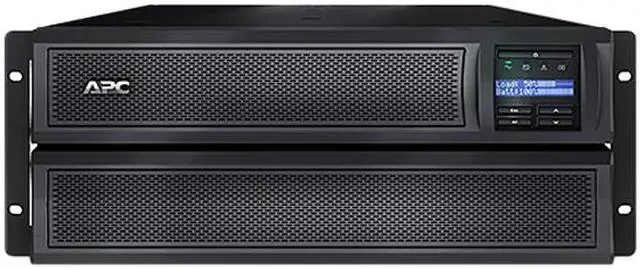

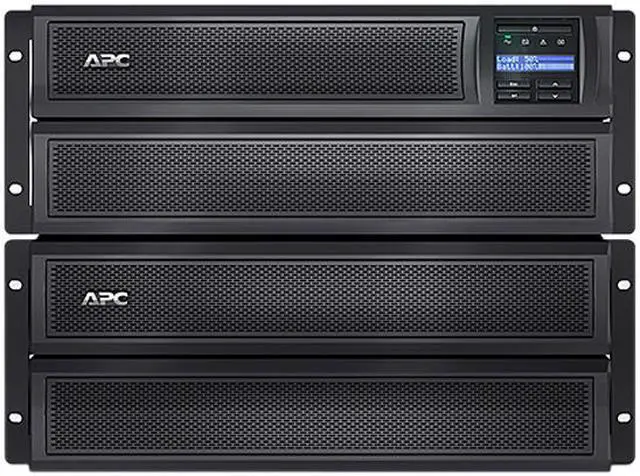

APC SMX3000LVNC UPS, 3000 VA Smart-UPS Sine Wave, Short Depth UPS Battery Backup with Extended Run Option, Network Management Card, Tower/4U Rack Convertible, Line-Interactive, 120V
Receptacle Detail 6 x NEMA 5-15R /3 x NEMA 5-20R /1 x NEMA L5-30R
+
+
Overview
Specs
Reviews (19)
Any questions? Our AI beta will help you find out quickly.
Try me now

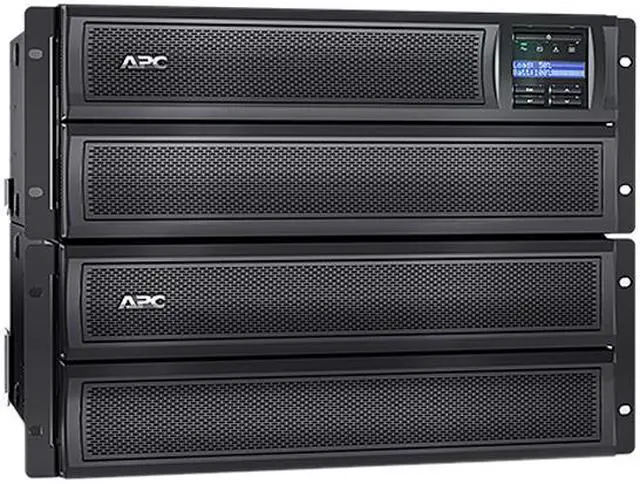

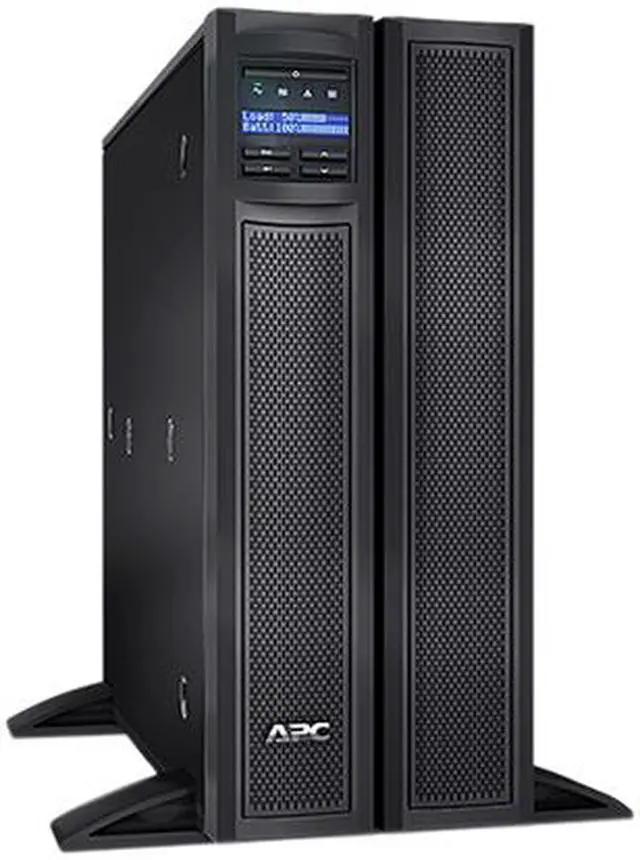

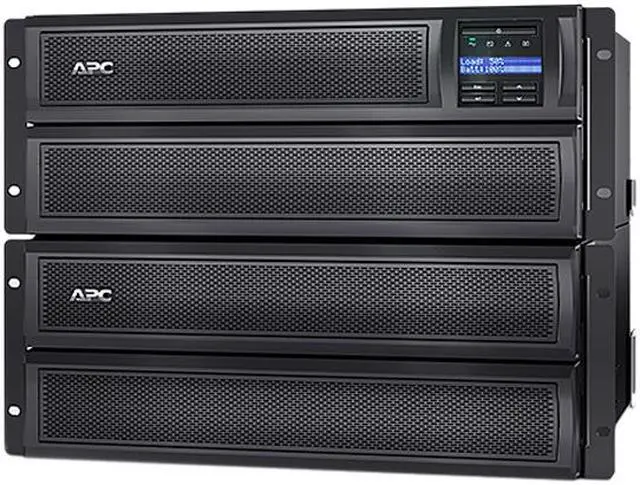

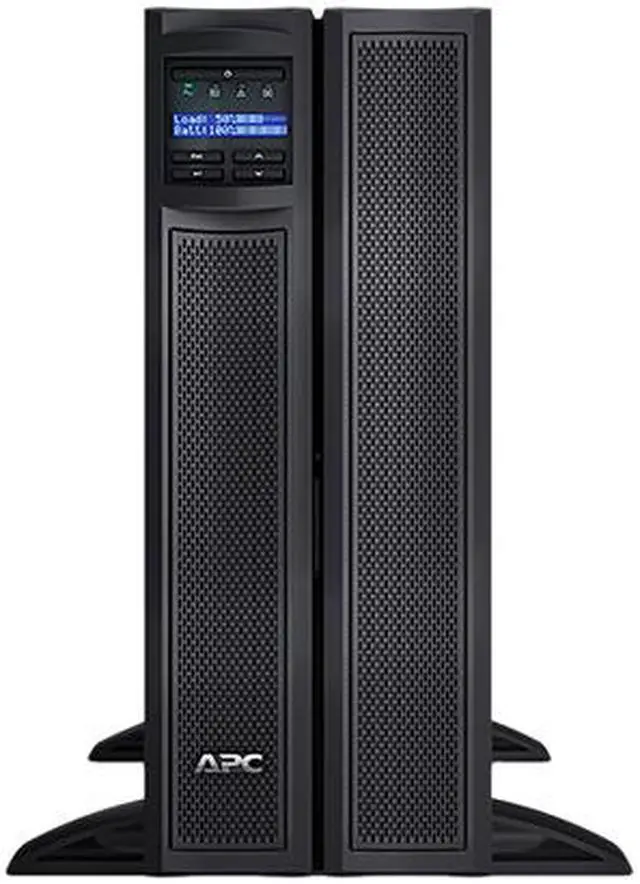

Over 20 million units sold - the UPS you can trust APC award-winning Smart-UPS is the most popular UPS in the world for servers, storage and network power protection. Trusted to protect critical data and equipment from power problems by supplying clean and reliable network-grade power. In addition to legendary reliability and manageability, Smart-UPS have extremely high efficiency at low, medium and high load levels making them ideal for today's multi-core or virtualized servers that have varying load consumption. Available in a variety of form factors (tower, rack mount, rack/tower convertible) there is a model for every application and budget. Rack mounted Smart-UPS are ideal for powering Blade or density optimized servers in a distributed power protection environment as the primary or redundant protection. Smart-UPS models have long been considered the benchmark for all network and server UPS's. Smart-UPS feature a 16-segment LED display, extended range automatic voltage regulation (AVR), and pure sine wave output on battery. The extended run Smart-UPS XL has the capability to add external battery packs to scale runtime from minutes to hours typically needed for converged voice and data network power protection. The entry level Smart-UPS SC is an economical choice for small and medium businesses looking to protect small switches, networking devices and point-of-sale (POS) equipment.
Learn more about the APC SMX3000LVNC
Model
Brand
APC
Series
Smart-UPS
Model
SMX3000LVNC
Input
International Version
120V
Input Frequency
50/60 Hz +/- 3 Hz (auto sensing)
Input Connection
NEMA L5-30P
Output
VA Rating
2880 VA
Watts
2700 Watts
Output Voltage
120V
Output Frequency
50/60 Hz +/- 3 Hz
Outlets
10
Outlet Type

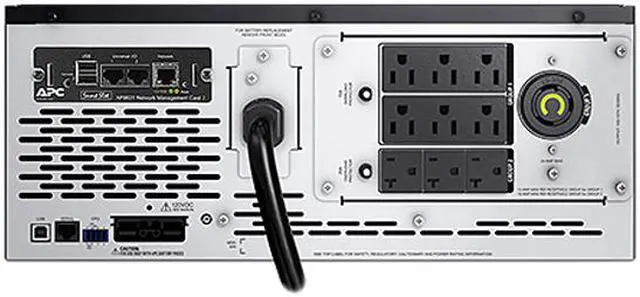

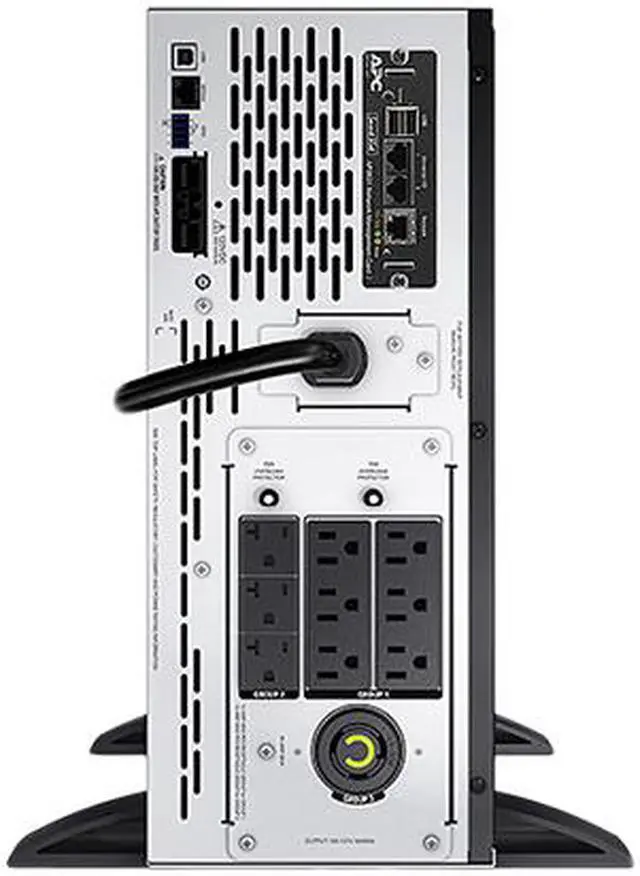

1 x NEMA L5-30R 6 x NEMA 5-15R 3 x NEMA 5-20R
Battery
Battery Type
Sealed Lead Acid
Battery Recharge Time
3 hour(s)
Battery Replaceable
APCRBC143
Details
Alarms
Alarm when on battery : distinctive low battery alarm : configurable delays
Interface Port
Smart-Slot
Management Software
YES
Approvals
BSMI, CSA, EN 50091-2, EN 55022 Class A, ENERGY STAR (USA), FCC Part 15 Class A, NOM, TUV, UL 1778, VCCI Class A
Rackmountable
4U
Surge Protection
Surge Energy Rating
540 Joules
Features
Features
APC Smart-UPS,2700 Watts / 2880 VA,Input 120V / Output 120V, Interface Port SmartSlot, Extended runtime model, Rack Height 4 U
Dimensions & Weight
Dimensions
7.00" x 19.00" x 17.00"
Weight
85.00 lbs.
Package Contents
Package Contents
APC Smart-UPS X 3000 VA Rack/Tower LCD 100 - 127V with Network Card, CD with software, Documentation CD, Installation guide, Rack Mounting brackets, Rack mounting hardware, Rack Mounting support rails, Removable support feet, Smart UPS signalling RS-232 cable, USB cable, Web/SNMP Management Card
