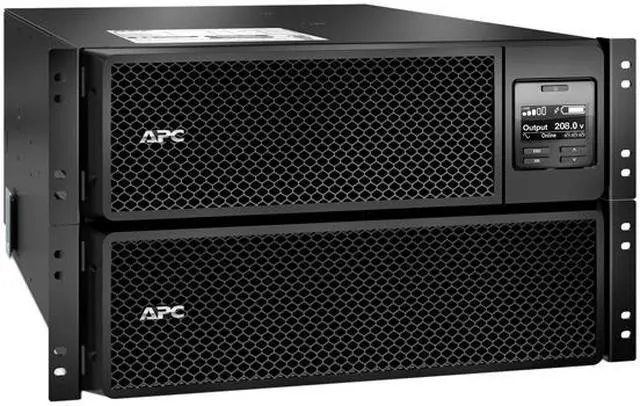

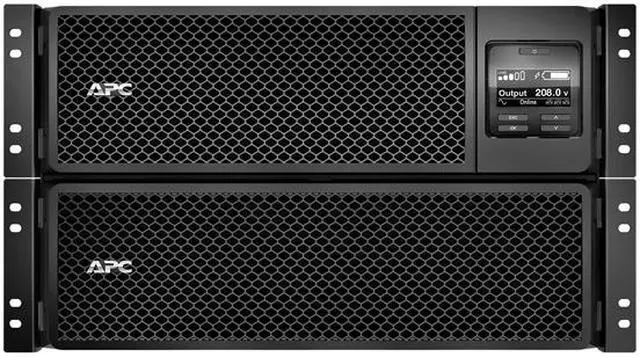

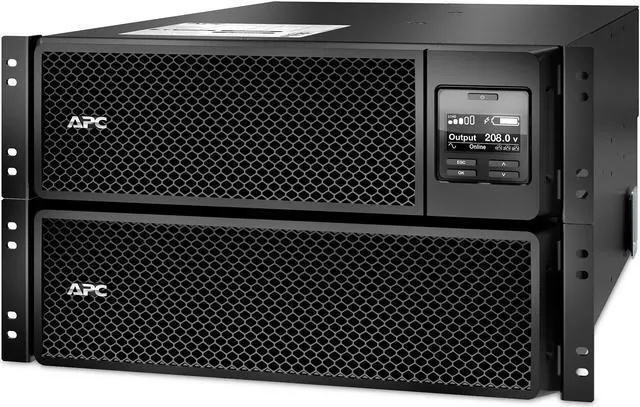

A versatile UPS developed for the harshest power conditions in the world. Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management. The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
Learn more about the APC SRT10KRMXLT
Model
Brand
APC
Series
Smart-UPS On-Line
Model
SRT10KRMXLT
Input
Input Voltage Range
160 - 275V
Input Frequency
45 - 65 Hz (auto sensing)
Input Connection
Hard Wire 3-wire (2PH + G)
Output
VA Rating
10000 VA
Watts
10 kW
Output Voltage
208V
Output Frequency
50/60Hz +/- 3 Hz
Outlets
7
Outlet Type

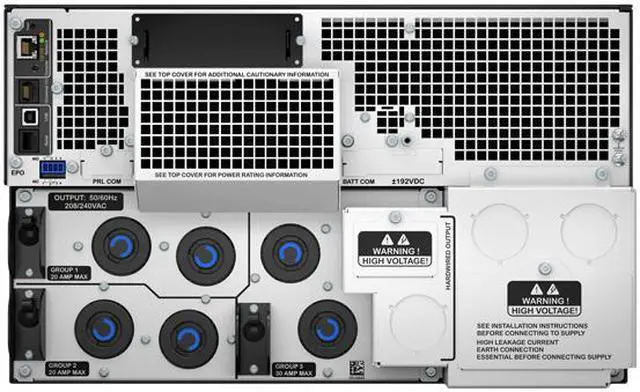

(1) Hard Wire 3-wire (2PH + G) (4) NEMA L6-20R (2) NEMA L6-30R
Battery
Battery Recharge Time
3 hour(s)

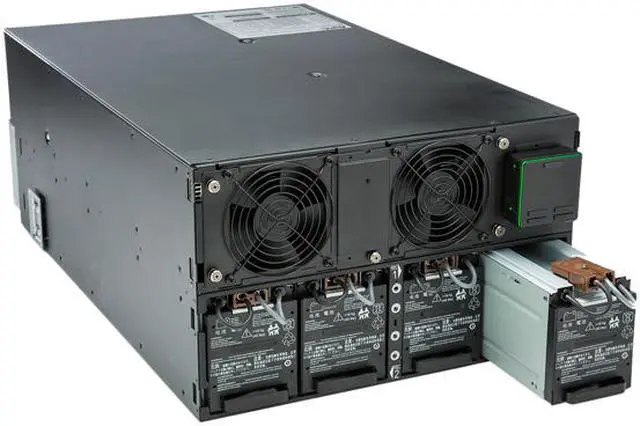

Battery Replaceable
APCRBC140
Details
Alarms
Audible and visible alarms prioritized by severity
Interface Port
Contact Closure, RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB
