Outputs: 2 x IEC Jumpers & 4 x IEC 320 C19 & 4 x IEC 320 C13
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

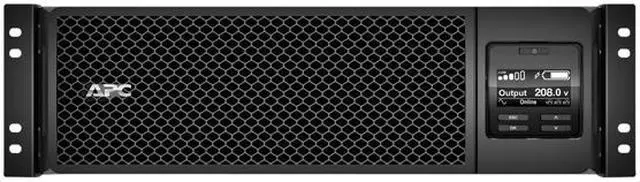

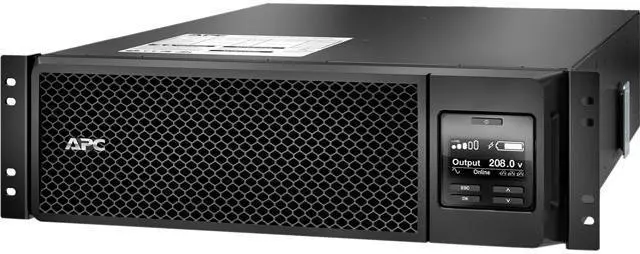

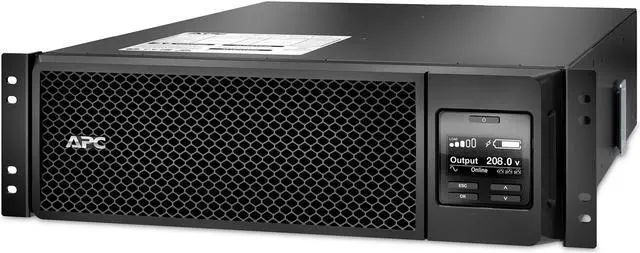

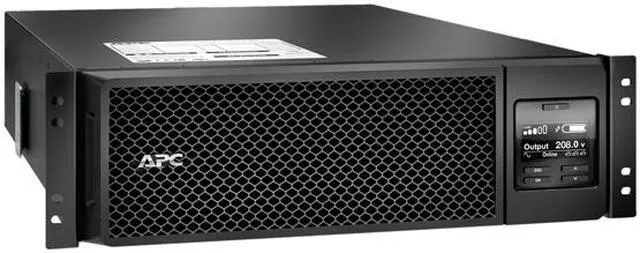

A versatile UPS developed for the harshest power conditions in the world.Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (opt...Receptacles: 2 x IEC JumperReceptacles: 4 x IEC 60320 C19Receptacles: 4 x IEC 60320 C13Load Capacity (VA): 5000 VALoad Capacity (Watt): 4250 WInput Voltage: 208 V ACOutput Voltage: 208 V ACBackup/Run Time (Full Load): 4 MinuteMaximum Battery Recharge Time: 1.50 HourHeight: 5.1Width: 17"Depth: 28.3"Rack Height: 3UForm Factor: Rack-mountableWeight (Approximate): 123 lbPackage Contents: Smart-UPS SRT 5000VA RM 208V IEC Documentation CD Rack Mounting Brackets Rack Mounting Hardware Rack Mounting Support Rails USB Cable User Manual Warranty Card Web/SNMP Management Card Environmentally Friendly: YesEnvironmental Certification: RoHSEnvironmental Certification: ENERGY STAREnvironmental Certification: REACHLimited Warranty: 3 YearPackage Contents Smart-UPS SRT 5000VA RM 208V IEC Documentation CD Rack Mounting Brackets Rack Mounting Hardware Rack Mounting Support Rails USB Cable User Manual Warranty Card Web/SNMP Management Card "
Learn more about the APC SRT5KRMXLT-IEC
Model
Brand
APC
Series
Smart-UPS On-Line
Model
SRT5KRMXLT-IEC
Input
International Version
208V
Input Voltage Range
160 - 275V Adjustable range for mains operation: 100 - 275V (half load)
Input Frequency
40 - 70 Hz (auto sensing)
Input Connection
NEMA L6-30P
Output
VA Rating
5000 VA
Watts
4250 Watts
Output Voltage
208V
Output Frequency
50/60 Hz +/- 3 Hz
Outlets
10
Outlet Type

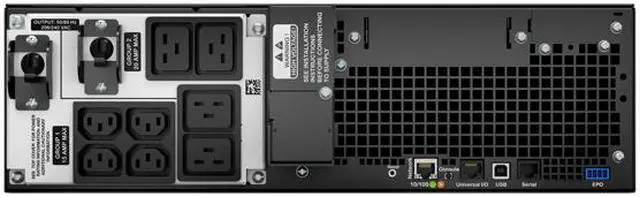

4 x IEC 320 C13 4 x IEC 320 C19 2 x IEC Jumpers
Battery
Battery Run Time
4.4 minutes
Battery Recharge Time
1.50 hour(s)

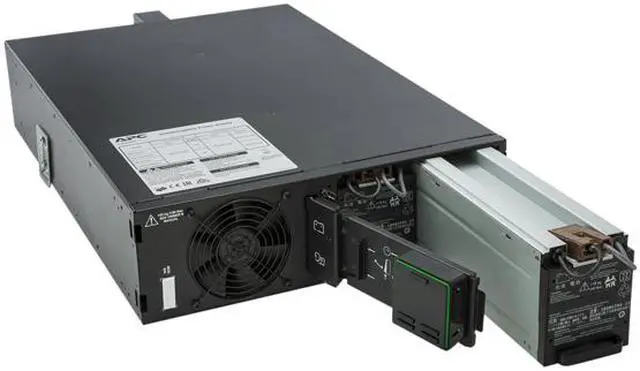

Battery Replaceable
APCRBC140, SRT5KRMXLT
Details
Alarms
Audible and visible alarms prioritized by severity
Interface Port
Contact Closure, RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB
