Interface Port DB-9 RS-232, RJ-45 10/100 Base-T, Smart-Slot
Extended runtime model
+
+
Overview
Specs
Reviews

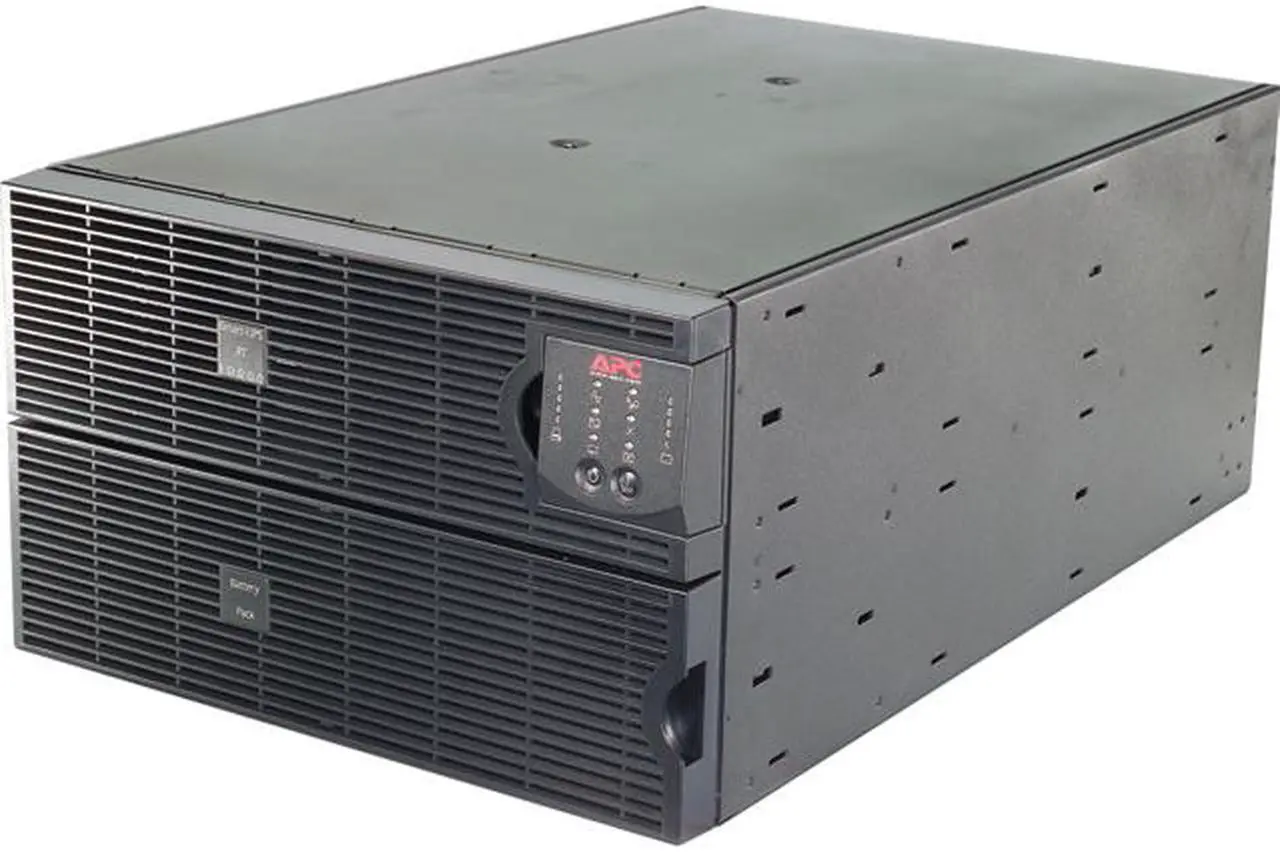

APC Smart-UPS RT SURT10000RMXLT6U belongs to a family of high-density, performance UPSs for voice and data networks, medical labs and light industrial applications.
Learn more about the APC SURT10000RMXLT6U
Model
Brand
APC
Series
Smart-UPS On-Line
Model
SURT10000RMXLT6U
Input
Input Voltage Range
208 V
Input Frequency
50/60 Hz +/- 5 Hz (auto sensing)
Input Connection
Hard Wire 3-wire (2PH + G)
Output
VA Rating
10000 VA
Watts
8000 Watts
Output Voltage
208 V
Outlets
5

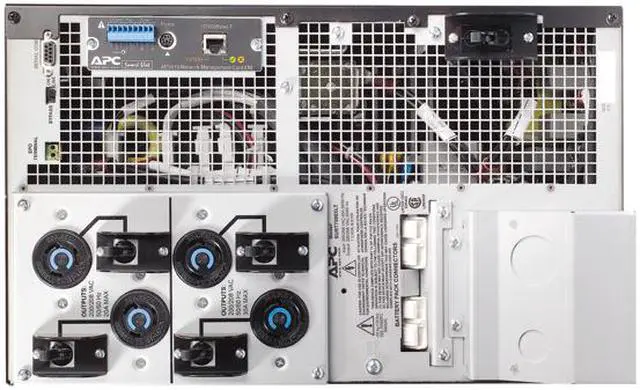

Outlet Type
(1) Hard Wire 3-wire (2PH + G) (2) NEMA L6-20R (2) NEMA L6-30R
Battery
Battery Run Time
0.22 Hour
Battery Recharge Time
2.20 hour(s)
Battery Replaceable
APCRBC140
Details
Alarms
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Interface Port
DB-9 RS-232, RJ-45 10/100 Base-T, Smart-Slot
Management Software
YES
Approvals
CSA, FCC Part 15 Class A, OSHPD, UL 1778
Rackmountable
6U
Surge Protection
Surge Energy Rating
1265 joules
Dimensions & Weight
Dimensions
10.35" x 17.00" x 28.98" (H x W x D)
Weight
244.00 lbs.
Package Contents
Package Contents
APC Smart-UPS APC Smart-UPS SURT10000RMXLT6U, CD with software, Rack Mounting support rails, Smart UPS signalling RS-232 cable, User Manual, Web/SNMP Management Card
Group
VA
10000 VA
Watt
N/A
Options
No
Additional Information
Date First Available
December 11, 2024
