Aquacomputer ULTITUBE D5 200 PRO Reservoir with D5 NEXT Pump (34110)

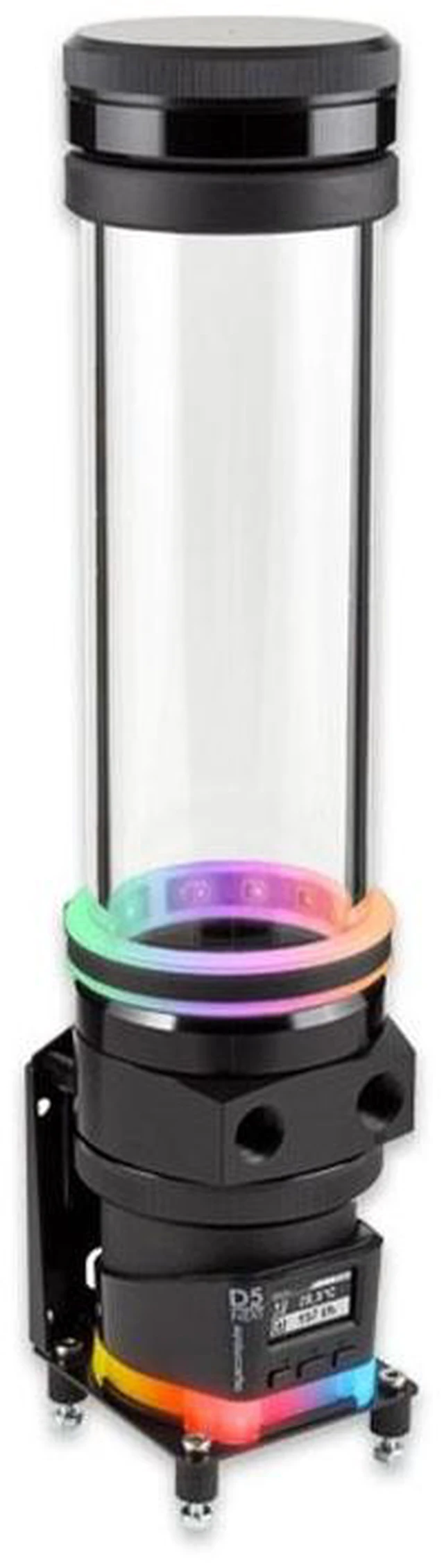

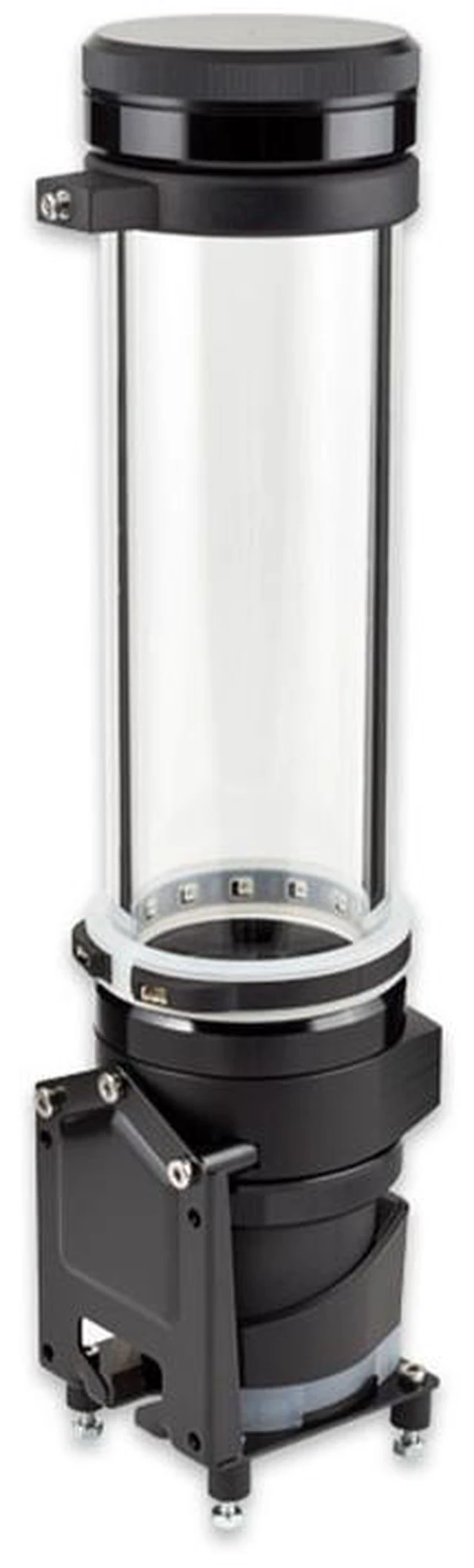

The Aquacomputer ULTITUBE D5 200 PRO Reservoir with D5 NEXT Pump is a tube reservoir with a D5 NEXT pump already mounted in its base, so it needs no separate pump top. Its 200 mm borosilicate glass tube holds approx. 470 ml and connects through two G1/4 threads, and the PRO version adds a pressure equalization membrane in the lid and an RGBpx LED ring with 13 addressable LEDs.

Properties

• Pump: D5 NEXT with OLED display, pre-installed
• Capacity: approx. 470 ml
• Ports: G1/4, one marked IN for the return line
• Size: approx. 72 x 72 x 315 mm including pump
• Maximum head: 3.7 m / 370 mbar
• Lighting: RGBpx LED ring, 13 addressable LEDs

What the loop needs

The tank is supplied without connections, so order two suitable G1/4 fittings separately. The return line goes to the port engraved IN. Power comes from a SATA plug of the PC power supply. The internal USB connection cable goes to a USB 2.0 header on the motherboard; it carries data only and is not required for pump operation. Fill with Double Protect Ultra coolant or water.

Compatibility

Aquacomputer lists these devices for the pump's connectors. Flow sensors on the fan connector:

• Flow sensor with 5.6 mm nozzle (53061, requires cable 53027)
• Flow sensor "high flow" (53068, requires cable 53027)
• Flow sensor high flow LT (53291)
• Flow sensor high flow 2 (53292)

aquabus devices on the Bus connector:

• aquaero 6 XT (53146, 53206, 53250, 53251, 53262, 53263)
• aquaero 6 PRO (53145, 53253)
• aquaero 6 LT (53234)
• aquaero 5 XT (53089, 53125, 53249)
• aquaero 5 PRO (53090, 53252)
• aquaero 5 LT (53095)

RGBpx products on the Bus connector:

• RGBpx LED-Strip (53268, 53269, 53270)
• RGBpx lighting set (53271, 53272)
• RGBpx Splitty4 (53267)
• RGBpx Splitty12 ACTIVE (53300)
• RGBpx LED ring for ULTITUBE (34115)
• RGBpx LED ring for aqualis (53274, 53276)
• RGBpx LED ring for 60 mm reservoir (53277)
• RGBpx cable (53259, 53260, 53261, 53266, 53297)

Notes

• Please note: fittings are not included in delivery.
• Use only Double Protect Ultra coolant or water, never a coolant with solid micro particles. Those particles, found in various opaque coolants, damage the D5 pump bearing and may lead to destruction of the borosilicate glass tube.
• The pump must not run dry: fill the loop with coolant before powering it up.
• Screw fittings in with light force only, so the threads in the plastic base part are not damaged.
• To open the lid, hold the glass tube and turn the lid counter-clockwise without losing the gasket; do not use tools when closing it.
• Remove or re-attach the controller unit only while no power is supplied to the pump.
• The display orientation changes only by rotating the whole pump, which means unscrewing its mounting ring: drain all coolant and remove the controller unit first, then re-fasten the ring by hand.
• The fan connector works as a fan output or as a flow sensor input, and the Bus connector as aquabus or RGBpx output, never both at once.
• An RGBpx product with two connectors is connected by the one marked IN; further RGBpx products go on OUT.

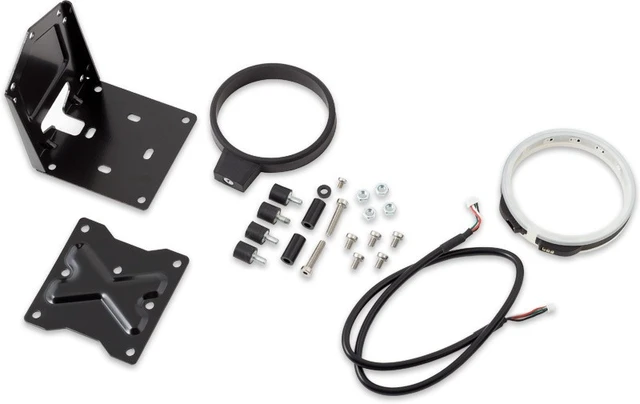

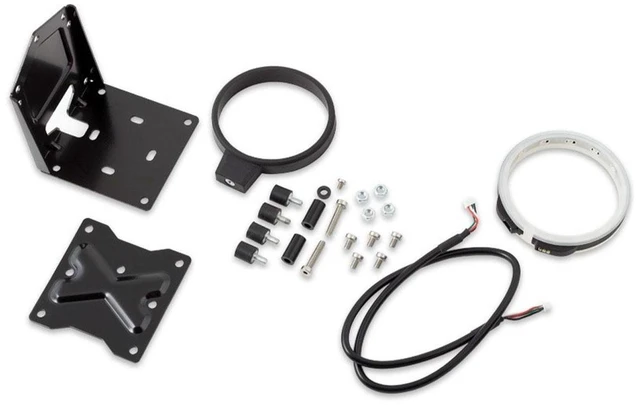

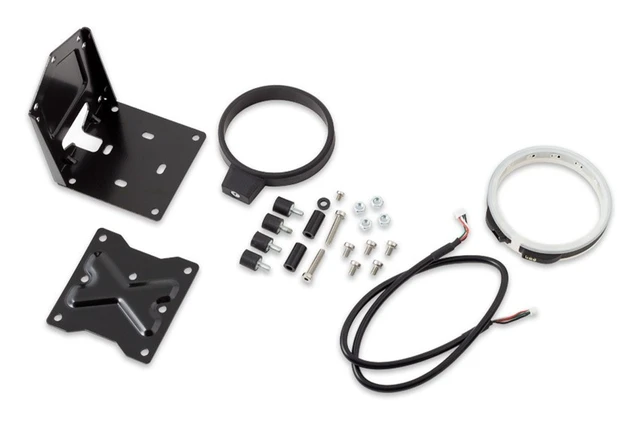

In the box

• Reservoir
• Integrated D5 NEXT Pump

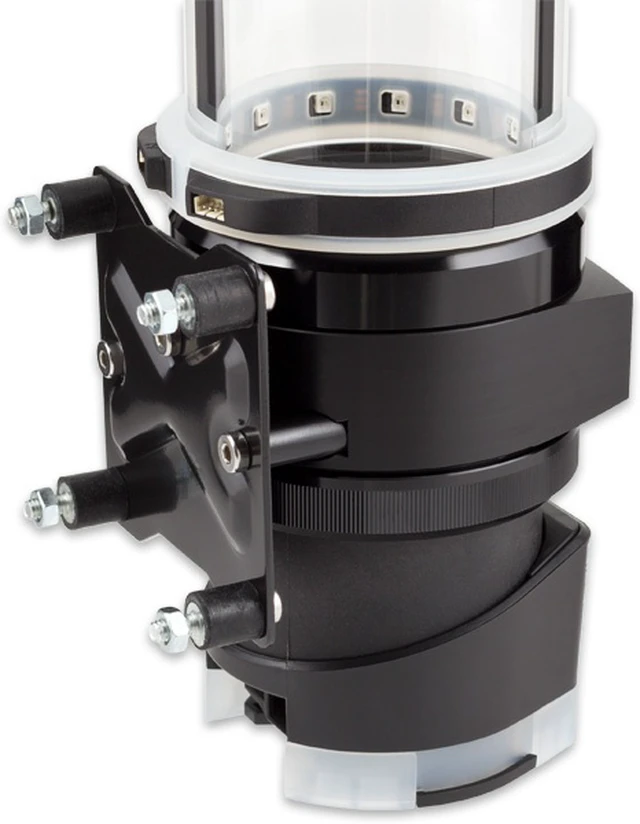

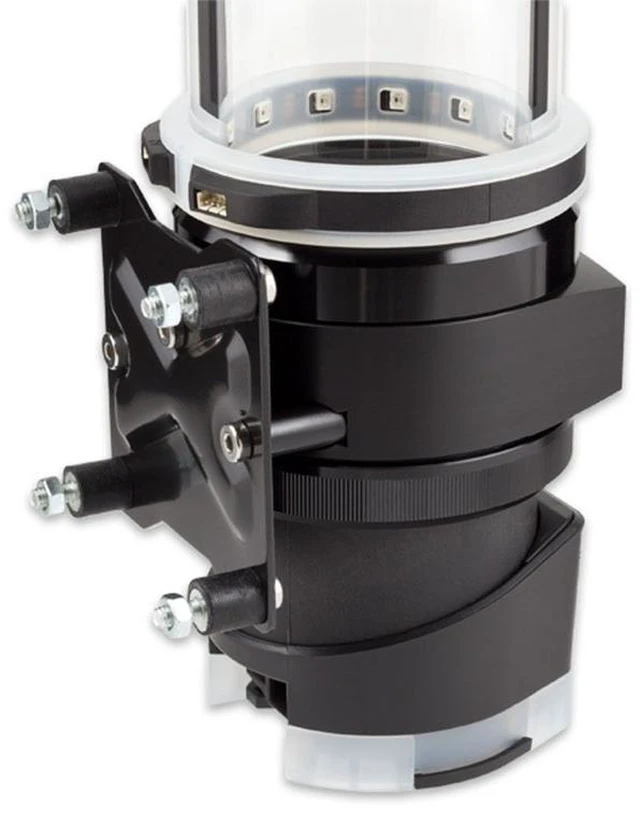

• Fastening ring and seal for fastening the pump
• Mounting Materials
• RGBpx compatible LED ring
• RGBpx connection cable, length 50 cm
• Rubber fixation ring with stainless steel insert
• Internal USB cable, length approx. 100 cm
• Manual (quick start guide)
