Aquacomputer ULTITUBE D5 200 PRO LEAKSHIELD Reservoir with D5 NEXT Pump (34142)
- The ULTITUBE D5 PRO LEAKSHIELD from Aquacomputer, comes as a combination, consisting of expansion tank and leakshield.
- The borosilicate glass expansion tank, with a diameter of 65mm, has a very high hardness and scratch resistance, as well as very low thermal expansion and excellent chemical and thermal resistance. The base and the lid of the reservoir are made of
- The ULTITUBE is rounded off with an impressive RGBpx-compatible LED ring, with 13 addressable LEDs. This can be easily connected to the D5 NEXT pump.

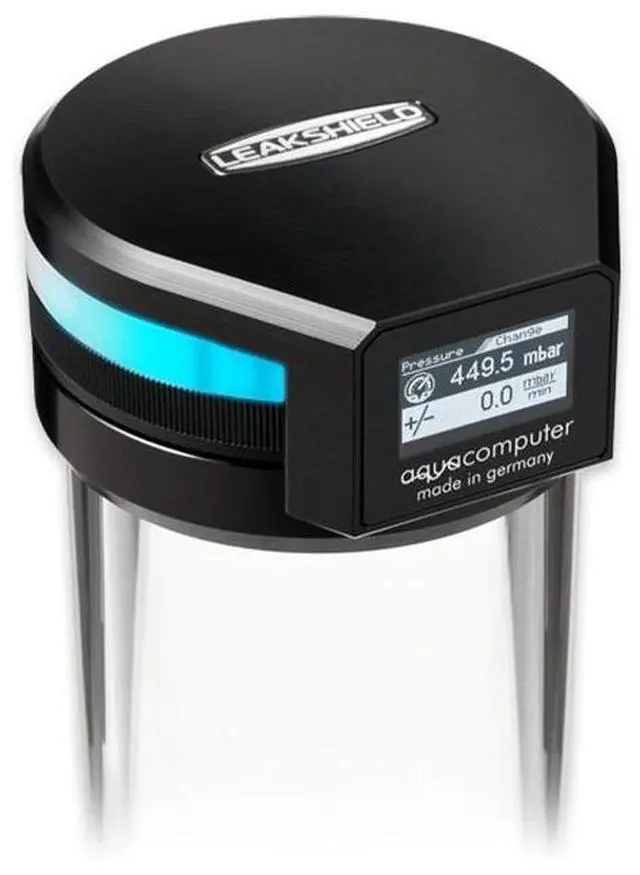

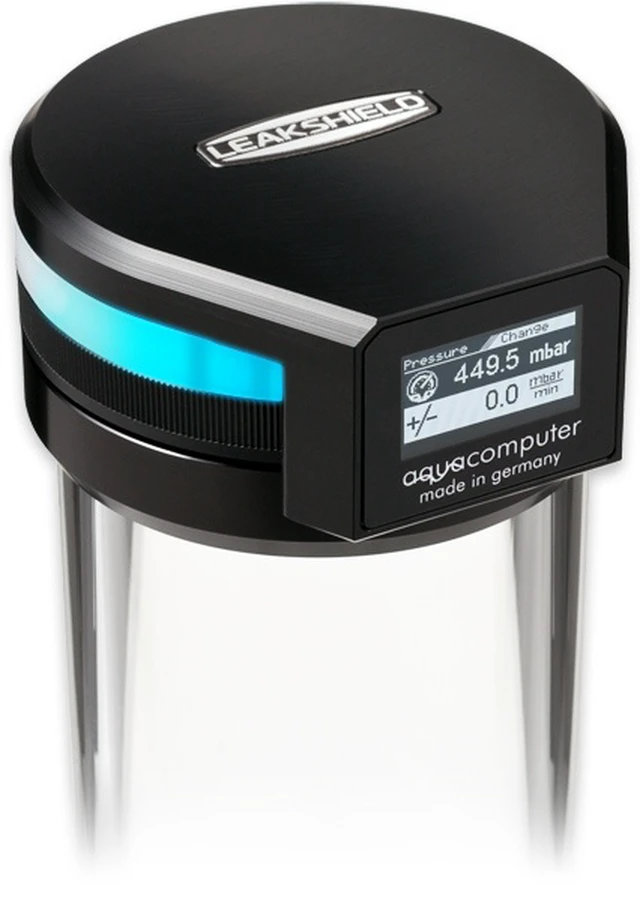

- With the LEAKSHIELD, the user almost no longer needs to worry about the tightness of his water cooling. Thanks to its negative pressure, the LEAKSHIELD actively protects against leaks. This means that no more coolant leaks out of the system. Of
- Even before the water cooling system is put into operation for the first time, the LEAKSHIELD checks the system for leaks by creating a vacuum. The system is then checked for pressure changes.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

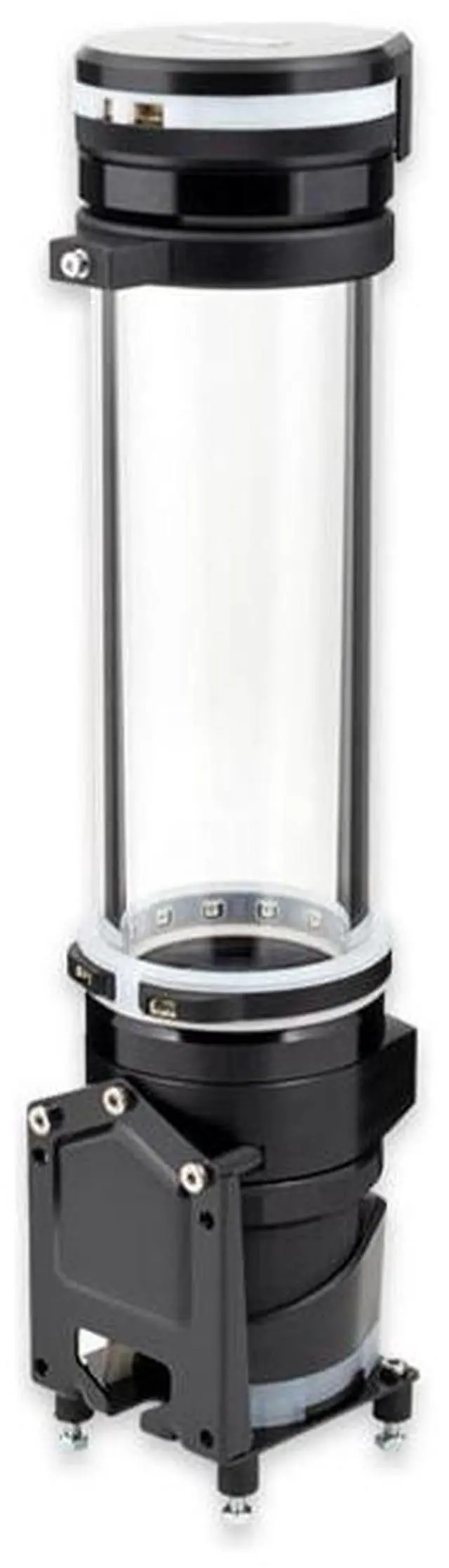

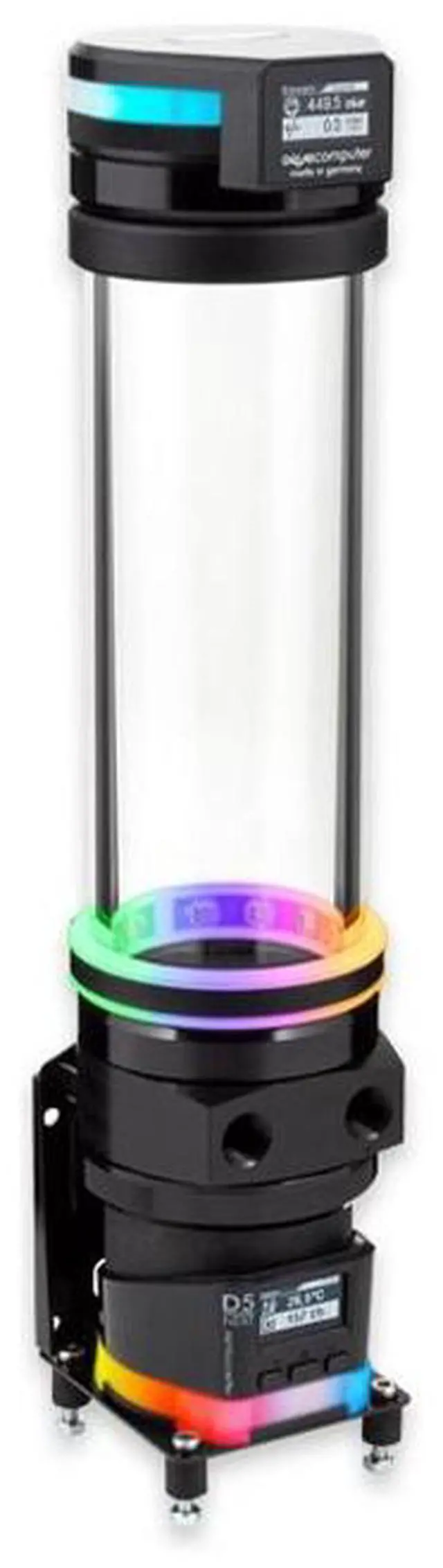

The Aquacomputer ULTITUBE D5 200 PRO LEAKSHIELD Reservoir with D5 NEXT Pump is a tube reservoir with a D5 NEXT pump already mounted in its base and the LEAKSHIELD leak prevention system on top. It comes as a combination consisting of expansion tank and LEAKSHIELD: a 200 mm borosilicate glass tube holding approx. 470 ml, two G1/4 threads and an RGBpx LED ring.
Properties
- Pump: D5 NEXT with OLED display, pre-installed
- Capacity: approx. 470 ml
- Ports: G1/4, one marked IN for the return line
- Size: approx. 72 x 77 x 327 mm including D5 NEXT and LEAKSHIELD
- Negative pressure: max. -450 mbar from LEAKSHIELD
- Lighting: RGBpx LED ring, 13 addressable LEDs
What the loop needs
Order two G1/4 fittings, with the return line on the port engraved IN. The pump takes a SATA plug from the power supply. The pump and LEAKSHIELD each take one of the two internal USB cables to a USB 2.0 header, and LEAKSHIELD draws its 5 V DC supply from it. For standby operation, set that USB port in the BIOS to stay powered. Its signal header can shut the PC down on an alarm, as the power button would, with the power button cable (53216), not included.
LEAKSHIELD can only be used if the maximum pump pressure in the system is below 450 mbar, which Aquacomputer says is true of almost all systems with one pump. The tubing must suit the vacuum: PVC soft tubing needs an outer diameter of at least 1.5 times the inner one, PUR about 1.2 times, and hardtubes generally suit. Keep at least 100 ml of air in the reservoir. For coolant, Aquacomputer approves only its DP Ultra series, such as Double Protect Ultra.
Technical Data
- Coolant capacity: approx. 470 ml
- Connection threads: G1/4
- D5 NEXT supply voltage: 5V, 12V
- D5 NEXT maximum power consumption: 65 W (including fan and RGBpx output)
- D5 NEXT maximum fan output power: 25 watts
- D5 NEXT maximum pump head: 3.7 m / 370 mbar
- LEAKSHIELD generated negative pressure: max. -450 mbar
- LEAKSHIELD supply voltage: 5 V DC via USB
- LEAKSHIELD current consumption: max. 500 mA
- Dimensions incl. D5 NEXT pump and LEAKSHIELD: approx. 72 x 77 x 327 mm (all dimensions without mounting material)
Notes
- Never use a coolant with solid micro particles: they damage the D5 pump bearing, may destroy the borosilicate glass tube and can clog or even destroy the LEAKSHIELD membrane. Never use a coolant with flammable substances.
- Never touch the membrane on the bottom side of LEAKSHIELD; a damaged membrane lets moisture in and can make the unit fail.
- The pump must not run dry.
- Screw fittings in with light force only, so the threads in the plastic base part are not damaged.
- The fan connector works as a fan output or as a flow sensor input, and the Bus connector as aquabus or RGBpx output, never both at once.

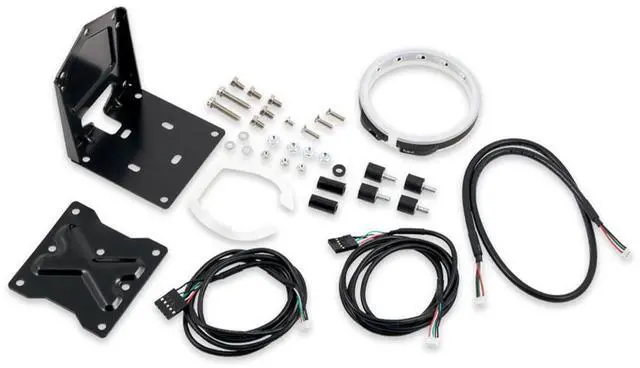

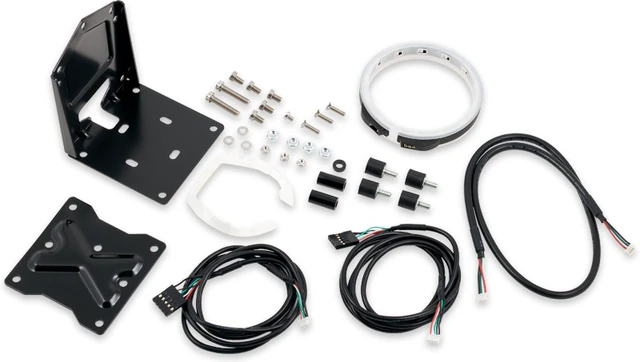

In the box
- One reservoir with integrated pump
- RGBpx compatible LED ring
- RGBpx cable, length 50 cm
- Rubber fixation ring with stainless steel insert
- Two internal USB cables, length approx. 100 cm
- Mounting material
- Manual (quick start guide)
