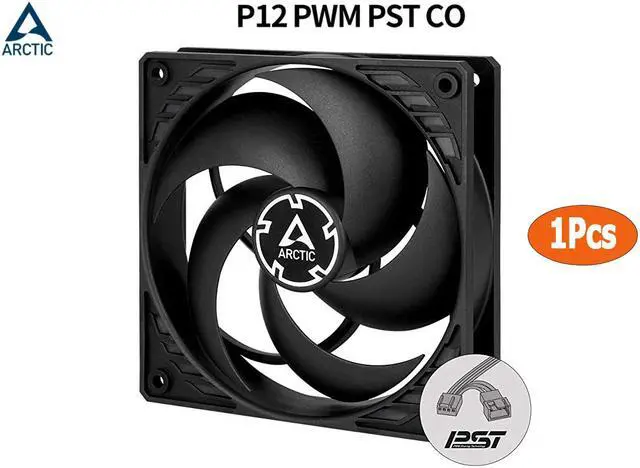

ARCTIC P12 PWM PST CO - 120 mm Case Fan PWM Sharing Technology (PST) Pressure-optimised Dual Ball Bearing for Computer Heat Dissipation Continuous Operation 200-1800 RPM - Black 1Pack

Feature:

Optimised for Static Pressure

During the development of the new P12 PWM PST CO, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 PWM PST CO is particularly suitable for use on heatsinks and radiators.

More Efficient Technology

The motor is powered by a Neodym-Iron-Boron-Magnet ring of the newest generation, which allows the new P12 PWM PST CO (0.96 W @ 1800 RPM) to run much more efficiently than its predecessors (F12 PWM PST CO: 2.88 W @ 1350 RPM). This saves energy and lowers the coil temperature without comprimising the performance.

For Continuous Operation

The premium quality Japanese dual ball bearing allows continuous operation 24/7 without the slightest compromise in performance. Dust and high temperature are affecting this bearing a lot less than generic sleeve or one ball bearings and thus make it the perfect choice when reliability is essential.

200 to 1800 RPM regulated via PWM

With a wide range of regulation and the PWM Sharing Technology (PST), the P12 PWM PST CO fan speed can be controlled synchronously with all your other fans together. This keeps noise at a minimum while guaranteeing maximum cooling performance when needed.

Strong Cooling Performance

Numerous improvements, suchas an updated engine technology and a newly developed fan design, have noticeably increased the performance of P-fans. In internal tests leveled to 28 dB(A), the new P-fans leftmany competitors behind.

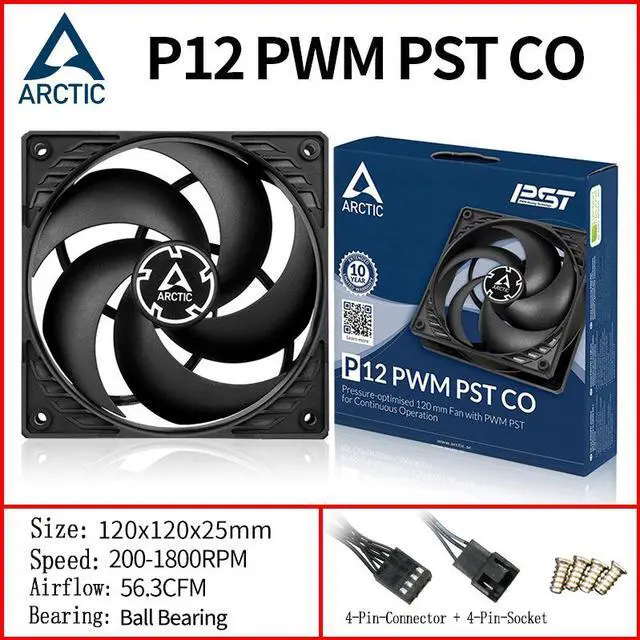

General data(Specification):

• Fan Speed: 200-1800 RPM

• Airflow: 56.3 CFM/95.7 m³/h

• Static Pressure: 2.20 mm/H²O

• Noise Level: 0.3 Sone

• Operating Temperature: 0 - 40 °C

• Control Type: PST

• Connector: 4-Pin-Connector + 4-Pin-Socket

• Fan Bearing: Dual Ball Bearing

• Electric Characteristics

• Typical Voltage: 12 V DC

• Starting Voltage: 3.9 V

• Current/ Voltage: 0.08 A/12 V

• Cable Length: 400 mm

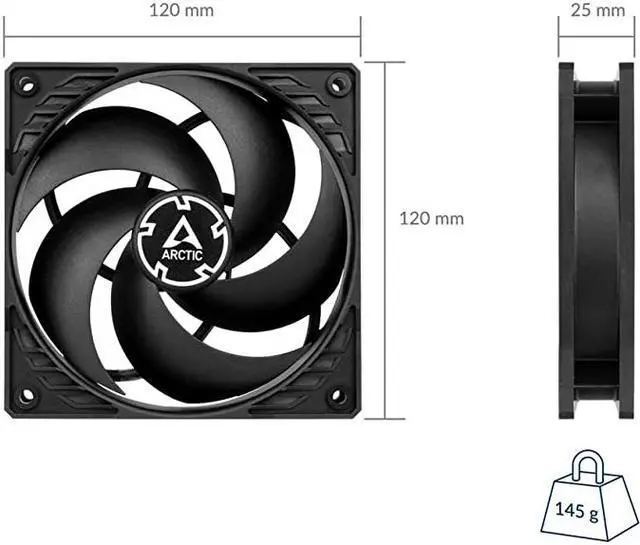

Size & Weight

Length: 120 mm

Width: 120 mm

Height: 25 mm

Weight: 145 g

Package List:

1*ARCTIC P12 PWM PST CO - 120 mm Case Fan

1* Use accessories

1* Use Manual
