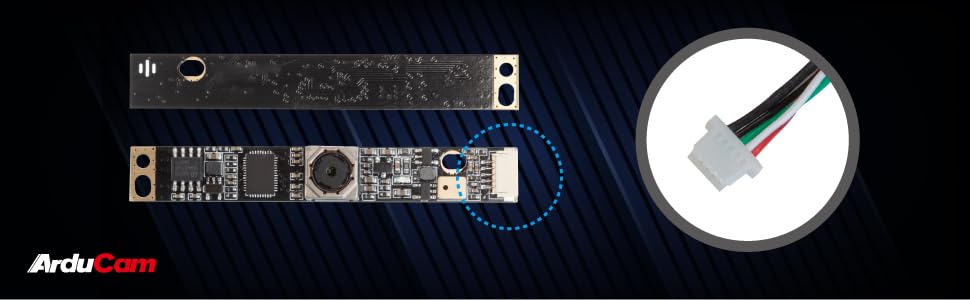

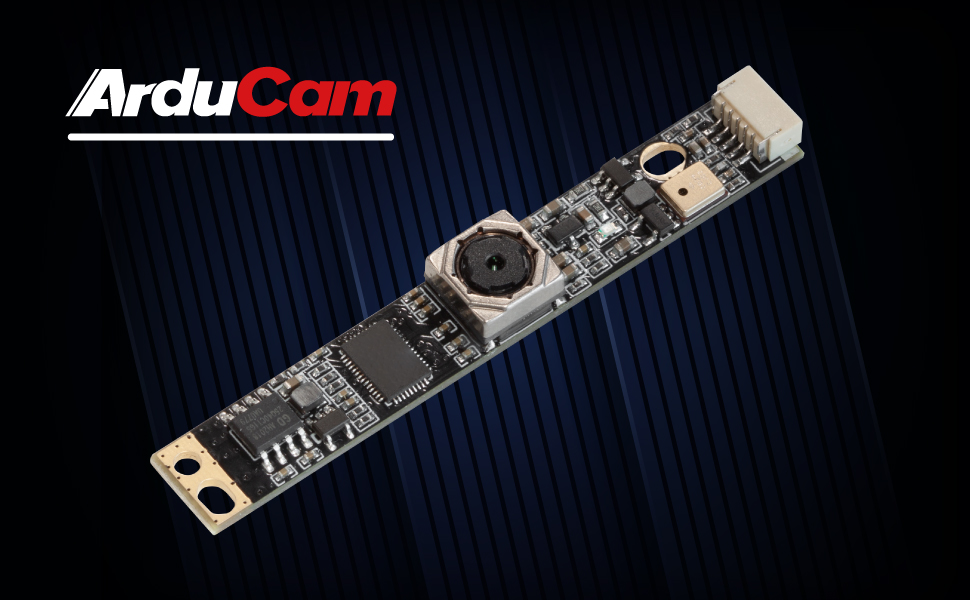

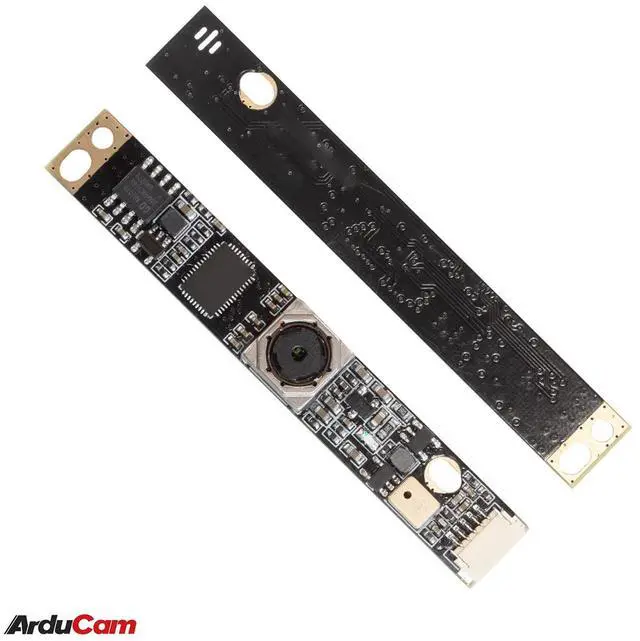

The UB0238 is a new member of Arducam’s USB camera family. It’s a 5MP, UVC-compliant, USB 2.0 camera. This USB camera is based on the 1/4” Sony OV5648 image sensor. No longer be anxious about installing the driver! The native UVC drivers of Windows, Linux, and Mac shall be compatible with this camera so that it does not require extra drivers to be installed. This small-sized USB cam can also be used as a lightburn cam, which can be used to capture images of the workpiece and display them in the lightburn software. This is particularly useful for working with irregularly shaped workpieces or for engraving on objects that do not have a flat surface.

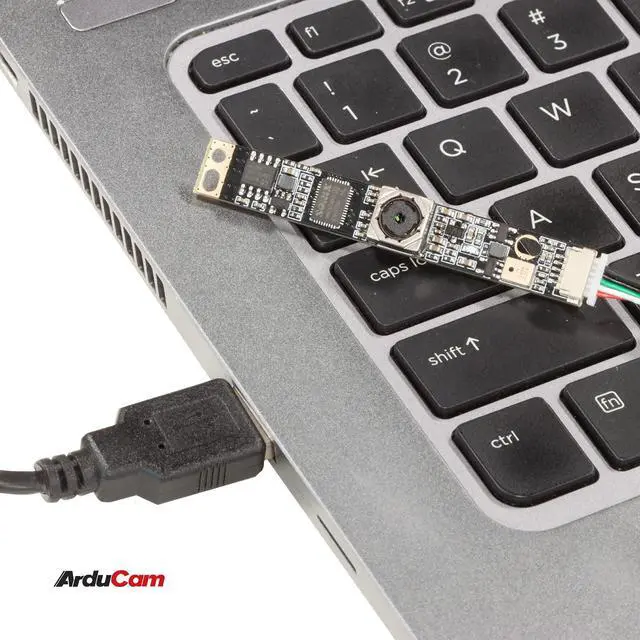

Plug & Play
- Functionality and Compatibility
-Adjustable parameters: Saturation, Contrast, Acutance, White balance, Exposure.
-System Compatibility: Windows XP (SP2, SP3)/Vista/7/8/10, Linux, and Mac with UVC
- Power
-Power supply: USB powered 5V
-Working Current: MAX 250mA
- Physical
-Operating Temp: -4°F~158°F (-20°C~+70°C).

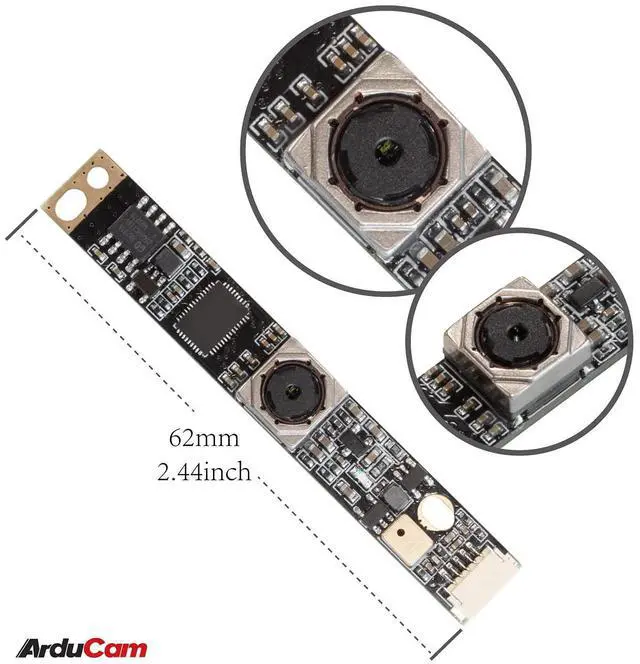

-Dimension: 62mmx9mmx5mm

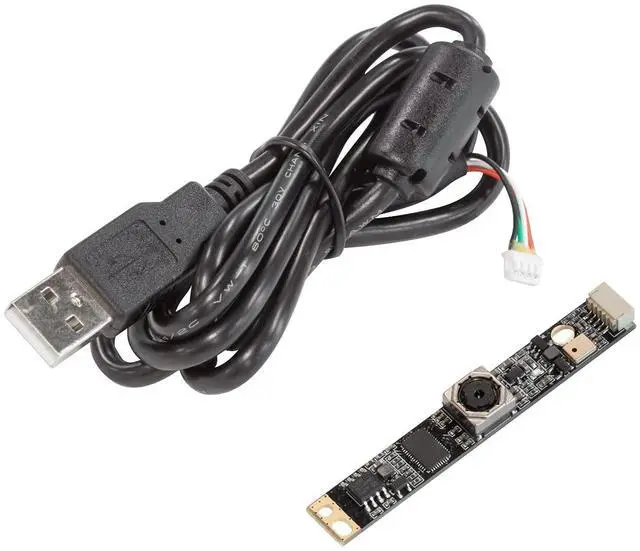

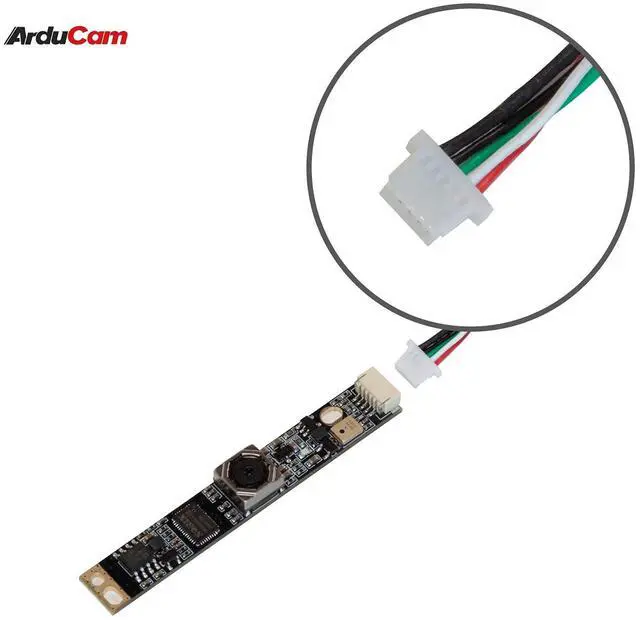

-Cable Length: 3.3ft (1M)
SPECS
- Camera
- Sensor: 1/4” OV5648
- Resolution: 2592(H)x1944(V)
-Frame Rate: MJPG 15fps@2592 x 1944/1600 x 1200; 30fps@1080P/1280 x 960/1280 x 720/1024 x 768/800 x 600/640 x 480; YUY2 2fps@2592 x 1944; 3fps@2048 x 1536; 5fps@1920 x 1080/1600 x 1200/1280 x 960; 10fps@1280 x 720/1024 x 768; 15fps@800 x 600; 20fps@640 x 480.
- Lens
-Field of View (FOV): 65°(H)x77°(D)x51°(V)
-Lens Mount: M6
-IR Sensitivity: Integral 650 IR filter, only visible light

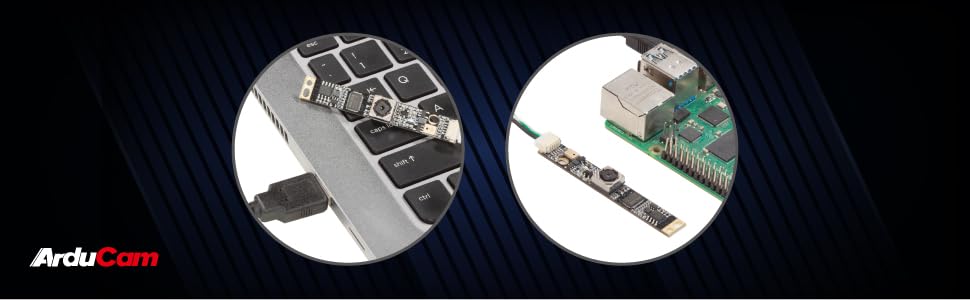

Applications:
- Streaming webcam
- Webcam streaming
- Mini CCTV Security Camera
- Home video surveillance system

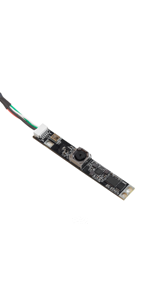

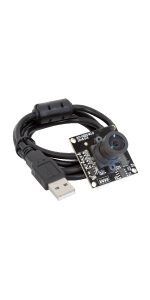

 5MP Autofocus USB Camera |  Wide Angle USB Camera |  IMX219 8MP Autofocus USB Camera |  Global Shutter USB Camera |  M12 Lens for USB Camera | |
|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — |
| Price | — | — | — | — | — |
| Sensor | / | OV5648 | IMX219 | OV9281 | / |
| Resolution | 5MP 2592(H)×1944(V) | 5MP 2592(H) x 1944(V) | 8MP 3280(H)×2464(V) | 1MP 1280(H) x 800(V) | / |
| Field of View | 69°(H) | 90°(H) | 62°(H) | 70°(H) | 20°-180°(H) |
| Board Size | 62mm x 9mm | 32mmx32mm | 62mm x 9mm | 38mmx38mm | / |
