This camera is Arducam NEW Autofocus UVC camera. The max resolution&frame rate is 2592(H)×1944(V)@30fps. Besides, we have equipped the camera with Auto Focus Lens. Arducam team is committed to creating more convenient and more efficient camera solutions. We have expanded the using scope of the image sensor, enabling the camera to realize your various projects. The camera is equipped with a 69°(H) autofocus lens, allowing you to use it for more applications. It is compatible with Windows, Linux, Android, and MAC. There are no additional drivers required.
Package Including:
1 x Arducam 5MP AF Camera Module
1 x USB Cable (1m)
1 x Paper Quick start guide
Frame Rate:
MJPG: 30fps@2592*1944/2560*1440/2048*1536/ 1920*1080/1280*720/1600*1200/1280* 960/ 800*600/640*480/352*288/176*144 YUY2: 176*144/352*288/640*480@30fps; 800*600/1280*720/1280*960/1600*1200/ 1920*1080@5fps; 2048*1536/2560*1440/2592*1944@2fps
- Please note that the Preview frame rate of the USB camera is closely related to the performance of your platform.
Specifications
Resolution: 5MP
Color Filter Type: Color
Shutter Type: Rolling shutter
Optical Size: 1/4"
Output Format: YUYV/MJPG
Pixel Size: 1.4µm*1.4µm
Sensor Active Area: 2592(H)×1944(V)
UVC Controls: Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, White Balance, Exposure, Focus

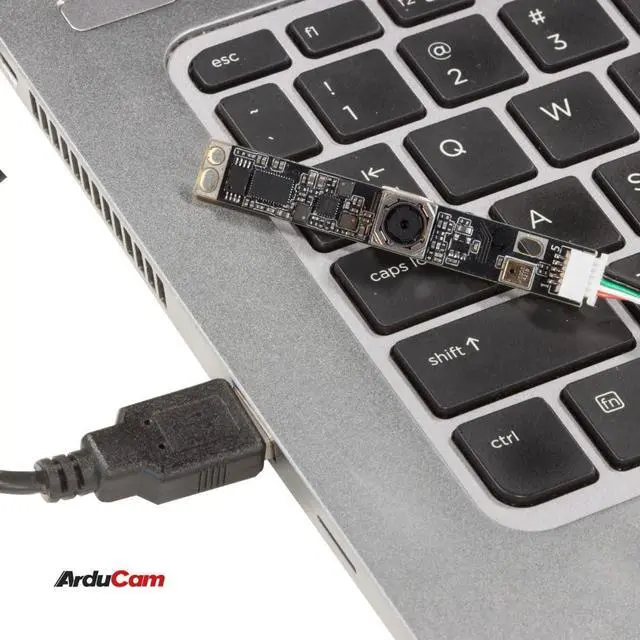

Plug and Play

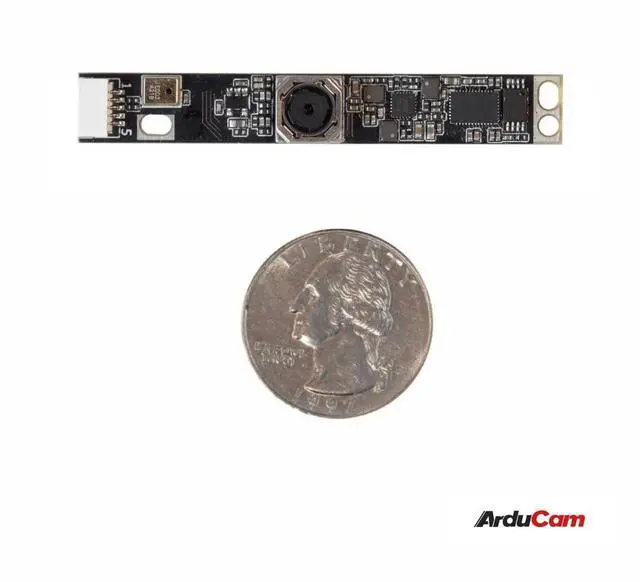

Mini Sized

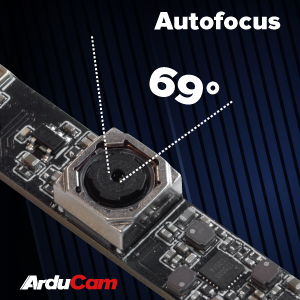

FoV: 69°(H)
Applications
- 3D Scanner
- VR Camera
- Lightburn Laser Engraver Machine
- Surveillance
- Video System
This camera is Arducam NEW Autofocus UVC camera. The max resolution&frame rate is 2592(H)×1944(V)@30fps. Besides, we have equipped the camera with Auto Focus Lens. Arducam team is committed to creating more convenient and more efficient camera solutions. We have expanded the using scope of the image sensor, enabling the camera to realize your various projects. The camera is equipped with a 69°(H) autofocus lens, allowing you to use it for more applications. It is compatible with Windows, Linux, Android, and MAC. There are no additional drivers required.
Package Including:
1 x Arducam 5MP AF Camera Module
1 x USB Cable (1m)
1 x Paper Quick start guide
Specifications
Frame Rate:
MJPG: 30fps@2592*1944/2560*1440/2048*1536/ 1920*1080/1280*720/1600*1200/1280* 960/ 800*600/640*480/352*288/176*144 YUY2: 176*144/352*288/640*480@30fps; 800*600/1280*720/1280*960/1600*1200/ 1920*1080@5fps; 2048*1536/2560*1440/2592*1944@2fps
- Please note that the Preview frame rate of the USB camera is closely related to the performance of your platform.
Resolution: 5MP
Color Filter Type: Color
Shutter Type: Rolling shutter
Optical Size: 1/4"
Output Format: YUYV/MJPG
Pixel Size: 1.4µm*1.4µm
Sensor Active Area: 2592(H)×1944(V)
UVC Controls: Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, White Balance, Exposure, Focus

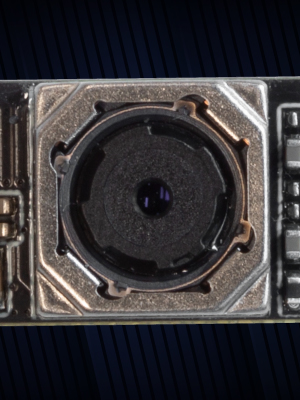

| Focus Type | Auto Focus |
| FOV | 69°(H) |
| Lens Mount | M6.5*P0.25mm |
| F.NO | 2.0±5% |
| E.F.L | 2.46mm |
| Focal Length | / |
| TV Distortion | <1% |
| Interface | USB 2.0 device |

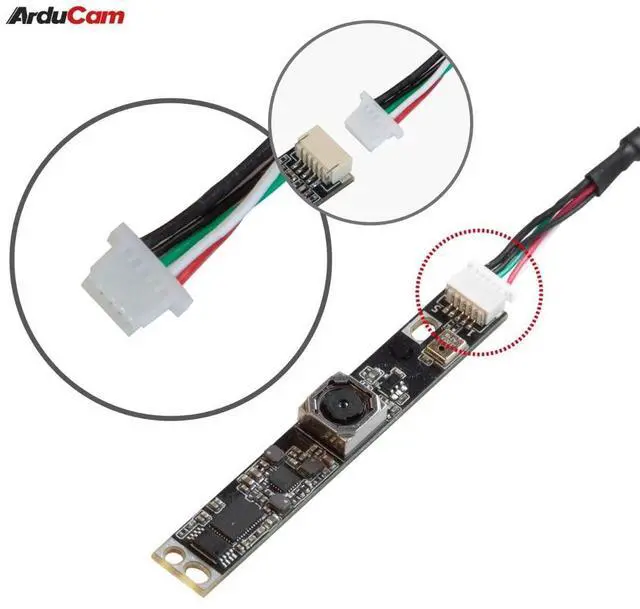

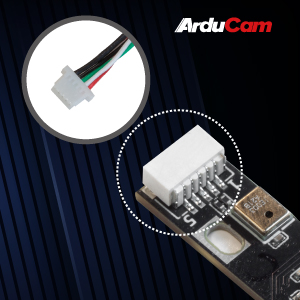

| Device Connector | SM05B-SRSS-TB |
| UVC Compliant | no additional drivers required |
| Operating Voltage | DC 5V +/- 5% |
| Working Current | Max 300mA |
| Operating Temp. | -4?-158?(-20°C to 70°C) |

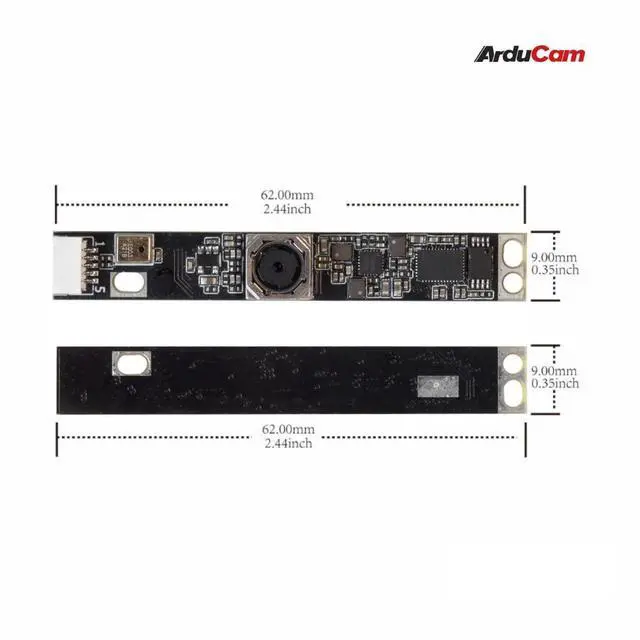

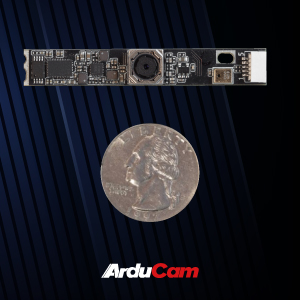

| Camera Board Size | 62mm x 9mm x 6mm |
| Audio | Single Microphone |
| Supported OS | Windows, Linux, Android and MAC |
Plug and Play
Mini Sized
FoV: 69°(H)
Applications
- 3D Scanner
- VR Camera
- Lightburn Laser Engraver Machine
- Surveillance
- Video System
