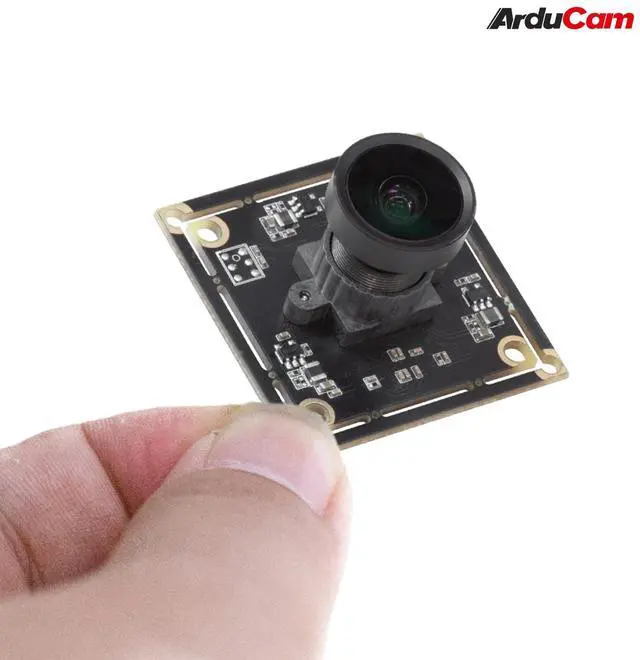

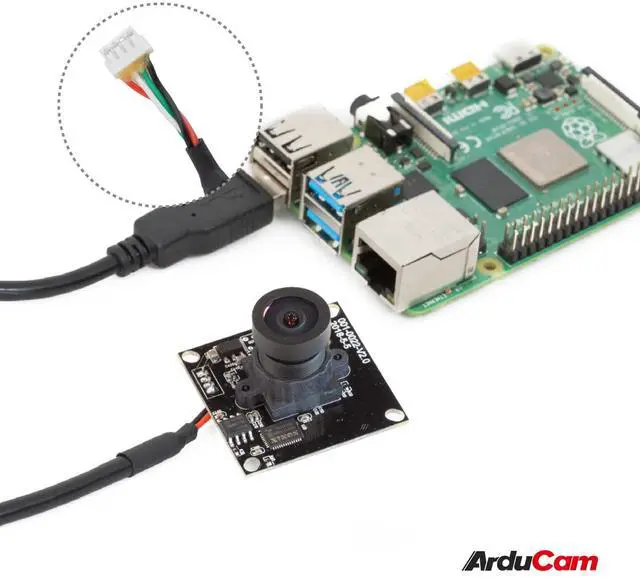

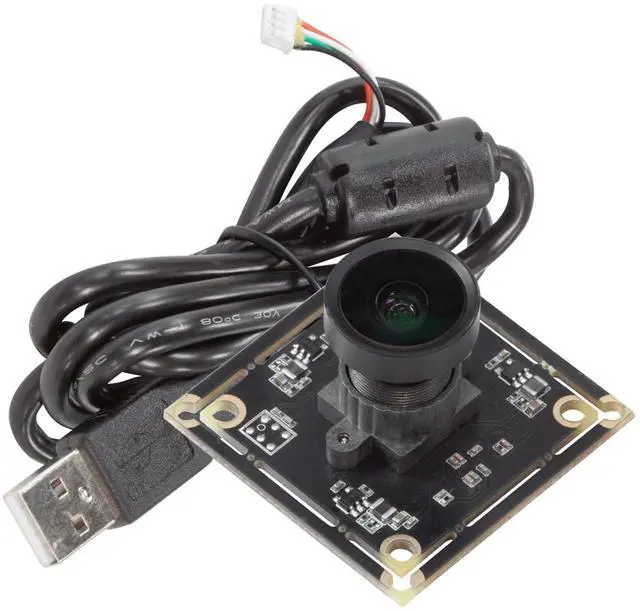

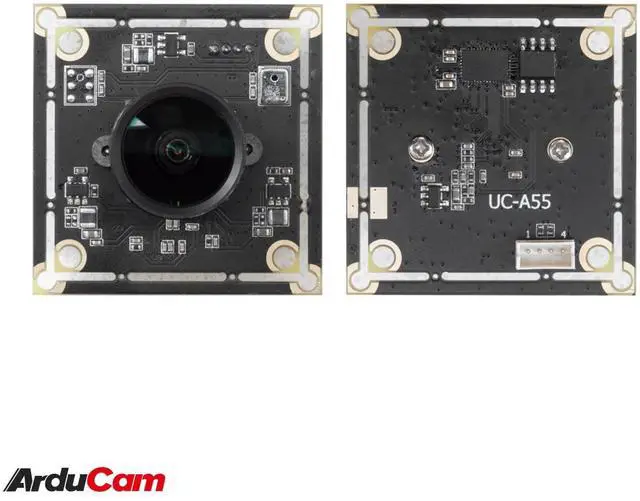

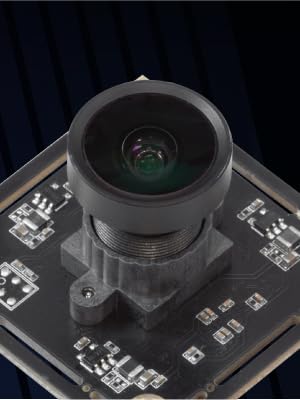

Arducam UB0233 is a new member of Arducam's USB camera family. It's a 5MP, based on the 1/4" OV5648 image sensor, UVC compliant, wide-angle USB 2.0 camera. Ultra HD resolution meets your request for higher quality video still pictures resolution.

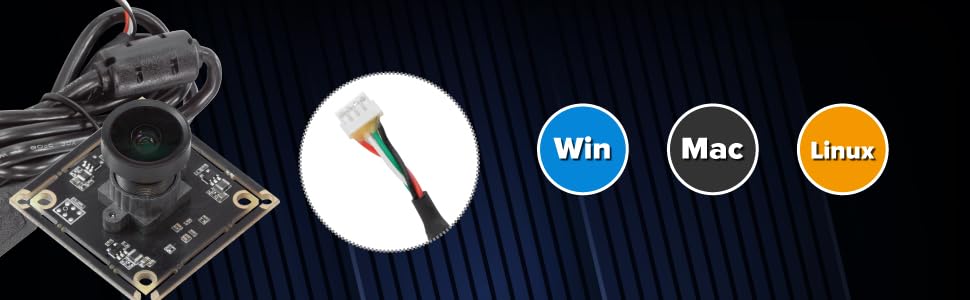

No longer be anxious about installing the driver! The native UVC drivers of Windows, Linux, and Mac shall be compatible with this camera so that it does not require extra drivers to be installed.
Note: If the device that you connect does not detect the camera, please check the USB port or cable.
Plug&Play
Power
- Power Supply: USB powered 5V
- Working Current: MAX 300mA
Physical
- Operating Temp.: -4°F~158°F (-20°C~+70°C).

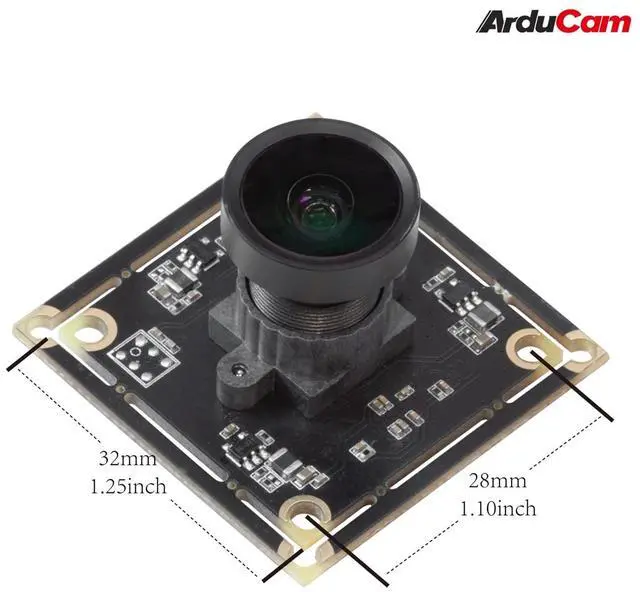

- Dimension: 38mmx38mm
- Hole Pitch: 28x28mm
- Cable Length: 3.3ft (1M)
SPECS
Camera
- Sensor: 1/4” OV5648
- Resolution: 5MP 2592(H) x 1944(V)
- Data Format: MJPG 15fps@2592*1944/2048*1536/1600*1200; 30fps@1920*1080/1280*960/1280*720/1024*768/800*600/640*360/640*480; YUY2 2fps@2592*1944/2048*1536; 5fps@1920*1080; 7.5fps@1600*1200/1280*960; 10fps@1280*720/1024*768; 20fps@800*600; 30fps@640*360/640*480
Lens
- Field of View (FOV):110°(D)x95°(H)x76°(V)
- Lens Mount: M12
- EFL: 2.1mm
- IR Sensitivity: Integral IR-cut filter, visible light only
Functionality and Compatibility
- Adjustable parameter: Brightness, Contrast, Saturation, Sharpness, White Balance, Gain

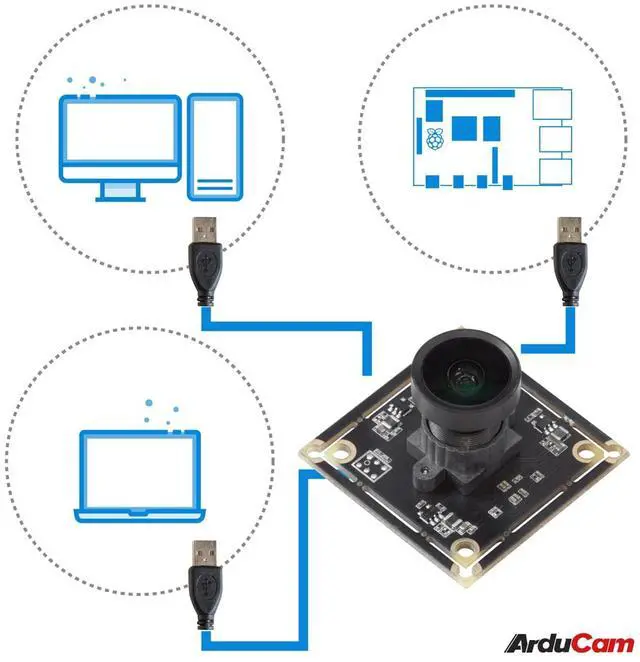

- System Compatibility: Win7/8/10, Linux, Mac, and OS with UVC driver
Applications
- Home video surveillance system
- Live streaming
- Video conference
- Monitoring 3D printer
- Dashcam

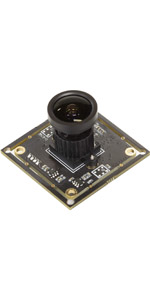

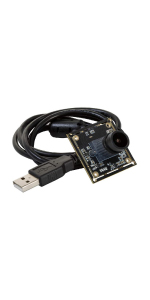

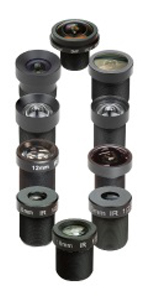

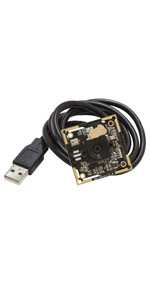

 Autofocus USB Camera |  Low Light WDR USB Camera |  1080P HDR 2MP USB Camera |  High Resolution USB Camera |  M12 Lens Kit for USB Camera | |
|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — |
| Price | — | — | — no data | — | — |
| Sensor | IMX179 | IMX291 | AR0230 | IMX298 | / |
| Resolution | 8MP 3264(H)x 2448(V) | 2MP 1920(H)x1080(V) | 2MP 1920(H)x1080(V) | 16MP 4656(H) x 3496(V) | / |
| Field of View | D=74.6° | D=100° | H=95° | H= 105° | 20°-180° |
| Board Size | 38x38mm | 38x38mm | 38x38mm | 38x38mm | / |
