Arducam 8MP 1080P USB Camera Module for Raspberry Pi, 1/4 CMOS IMX219 Mini UVC USB2.0 Webcam Board with 1.64ft/0.5m USB Cable for Windows, Linux, Android and Mac OS
- More than HD: This camera adopts 8MP IMX219 sensor for sharp image and accurate color reproduction
- Capture Video with Audio: Microphone for high-quality digital MIC (optional dual/single channel).Frame Rates: MJPG 15fps@3264 x 2448, 30fps@1080P; YUV: 10fps@1280×720/800×600/640×480/320×240.
- Widely Compatible: Support Windows, Linux, Mac and Android with UVC.
- Plug&Play: UVC-compliant, just connect the camera to PC, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed. Note: If the device that you connect does not detect the camera, please check the USB port or cable.
- Applications: this tiny 38mmx38mm camera board can be installed in most hidden and narrow position for a home surveillance system, monitoring 3D Printer, dashcam or other machine vision application.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

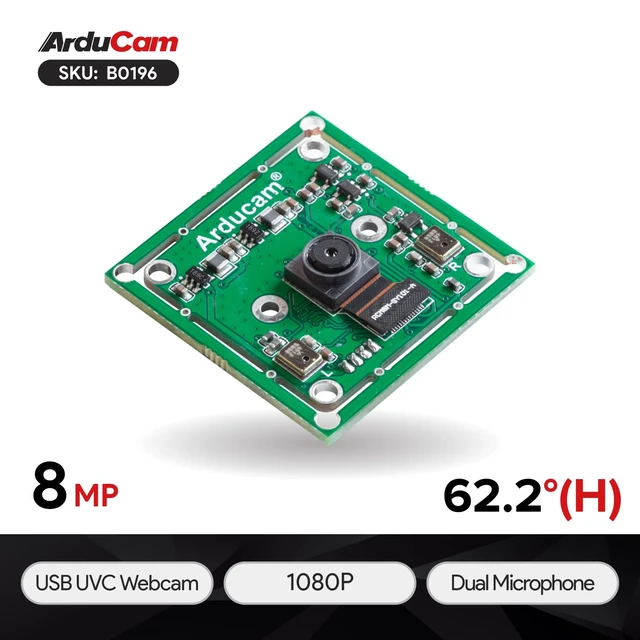

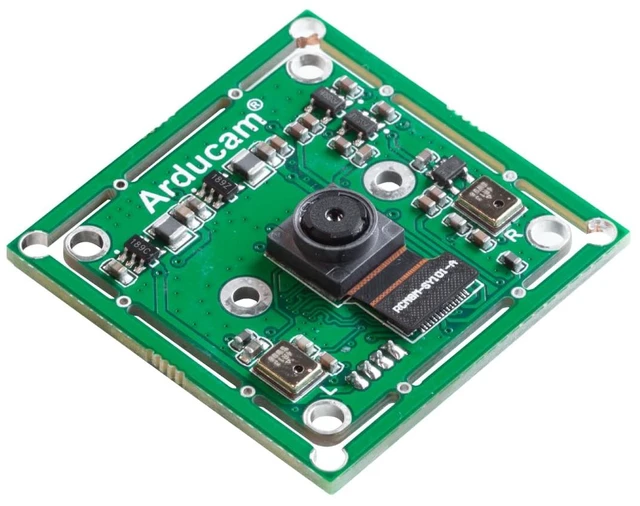

The Camera B0196 is a new member of the Arducams USB camera family. Its an 8MP, UVC compliant, based on 1/4 IMX219 image sensor, USB 2.0 camera.
Specifications
- Sensor: 8MP 1/4 IMX219
- Resolution: 8MP 3264H x 2448V
- Data Format: MJPG/YUY2
- Field of View (FOV)H=62.2°, V=48.8°
- IR Sensitivity: Integral IR filter, 650nm IR Filter, visible light only
- Frame Rate: MJPG 15fps@3264x2448, 30fps@1920x1080; YUY2 30fps@640x480
Functionality and Compatibility
- Adjustable Features: Brightness, Contrast, Saturation, Sharpness, Gamma, White balance.
- System Compatibility: Windows, Linux, Android with UVC
Power
- Power Supply: USB Powered 5V
Physical
- Operating Temp.: -4°F~167°F (-20°C~+75°C)

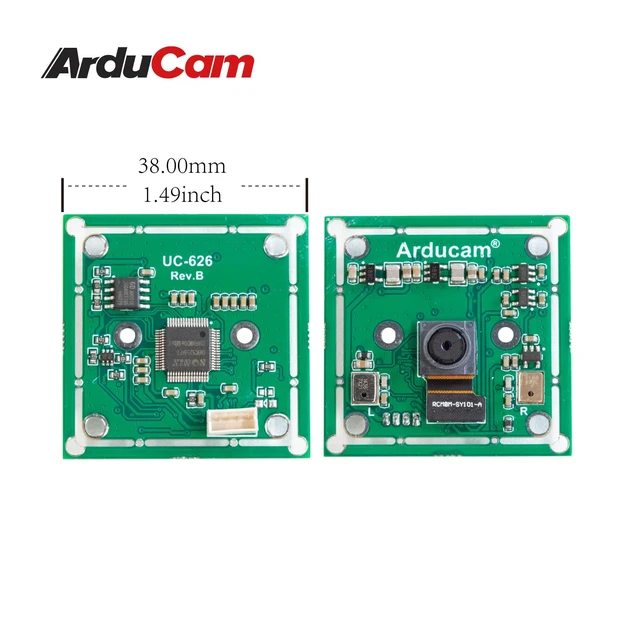

- Dimension: 38mmx38mm
- Cable Length: 3.3ft (1m)
