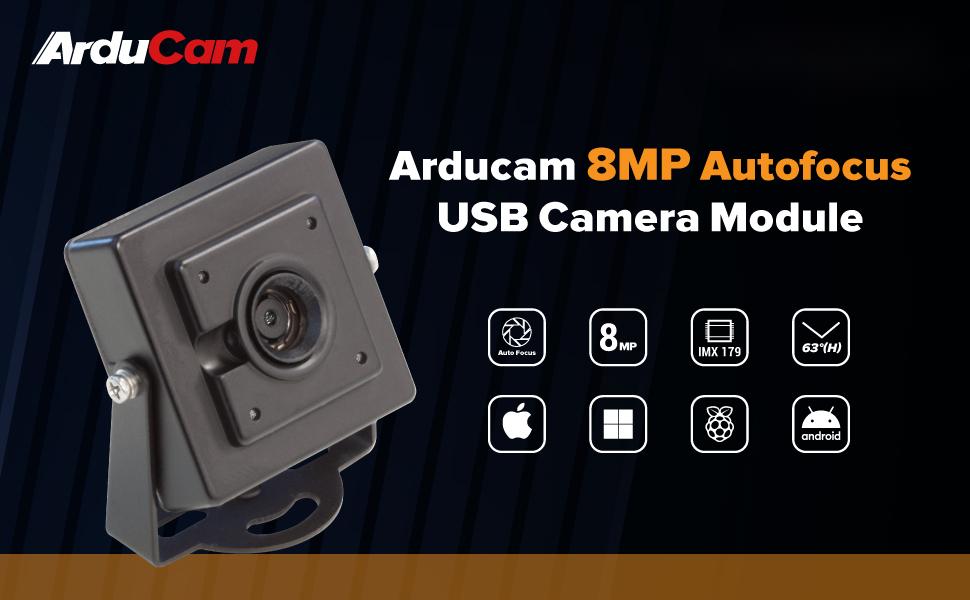

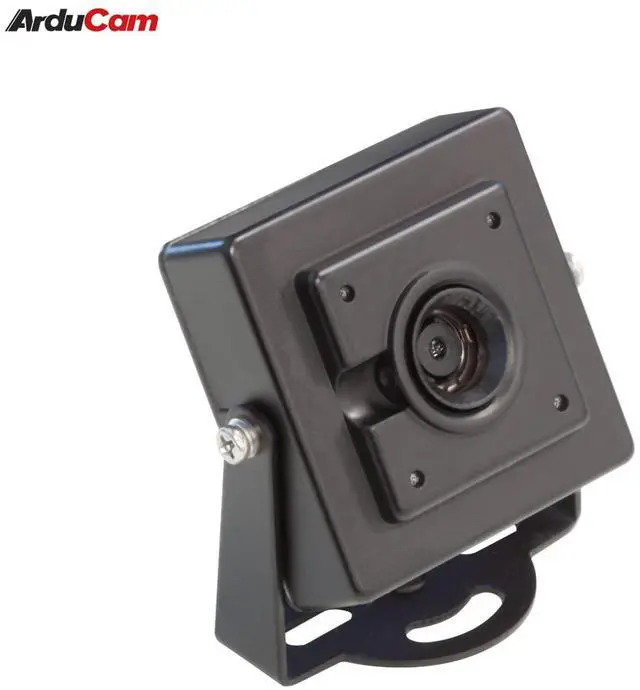

This camera is based on 8MP IMX179 image sensor. Output format: MJPG/YUY2. The max resolution&frame rate is 3264(H)x2448(V)@30fps. Besides, we have equipped the camera with Autofocus Lens. Arducam team is committed to creating more convenient and more efficient camera solutions. We have expanded the using scope of the image sensor, enabling the camera to realize your various projects. The camera is equipped with a 63°(H) autofocus Lens, allowing you to use it for some specific applications. It is compatible with Windows, Linux, Android, and Mac OS and No additional drivers are required.
Frame Rate
MJPG: 30fps@3264×2448/2592×1944/1920×1080/1600×1200/1280×720/640×480 YUY2: 1fps@3264×2448 2fps@2592×1944 5fps@1920×1080/1600×1200 10fps@1280×720 30fps@640×480

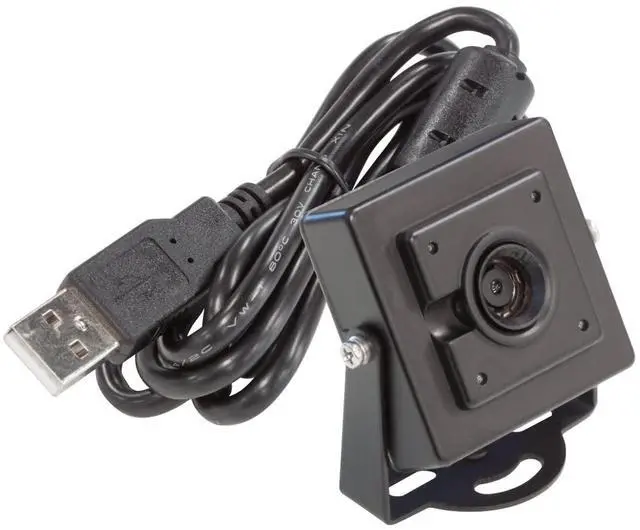

- 1 x Arducam 8MP AF Camera Module
- 1 x USB Cable (1m)
- 1 x Quick start guide
Specifications
Resolution: 8MP
Shutter Type: Rolling shutter
Output Format: YUYV/MJPG
YUYV/MJPG: 3264(H)x2448(V)
Focus Type: Autofocus
Lens Mount: M8.5±0.25
E.F.L: 3.543

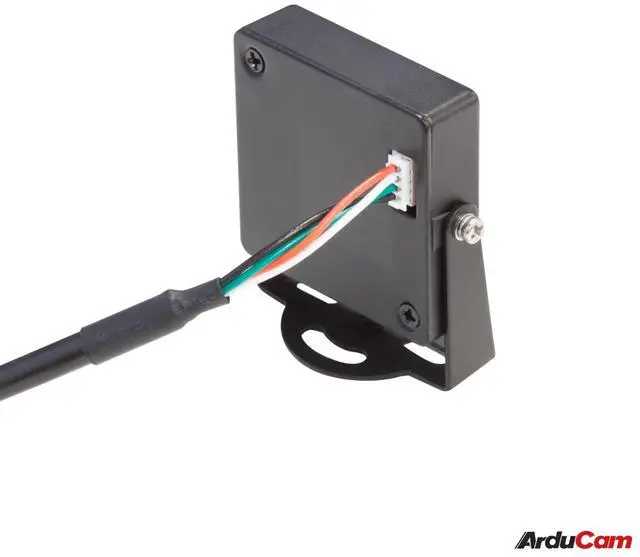

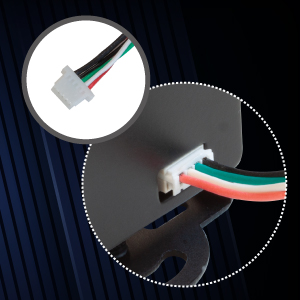

Connector: B4B-ZR
Operating Voltage: DC 5V +/- 5%
Operating Temp.: -4°F-158°F(-20°C to 70°C)
Plug & Play

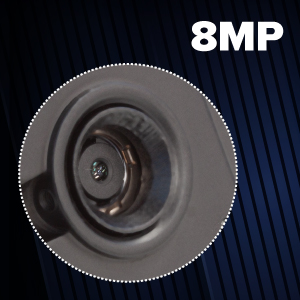

8MP Resolution
Metal Material

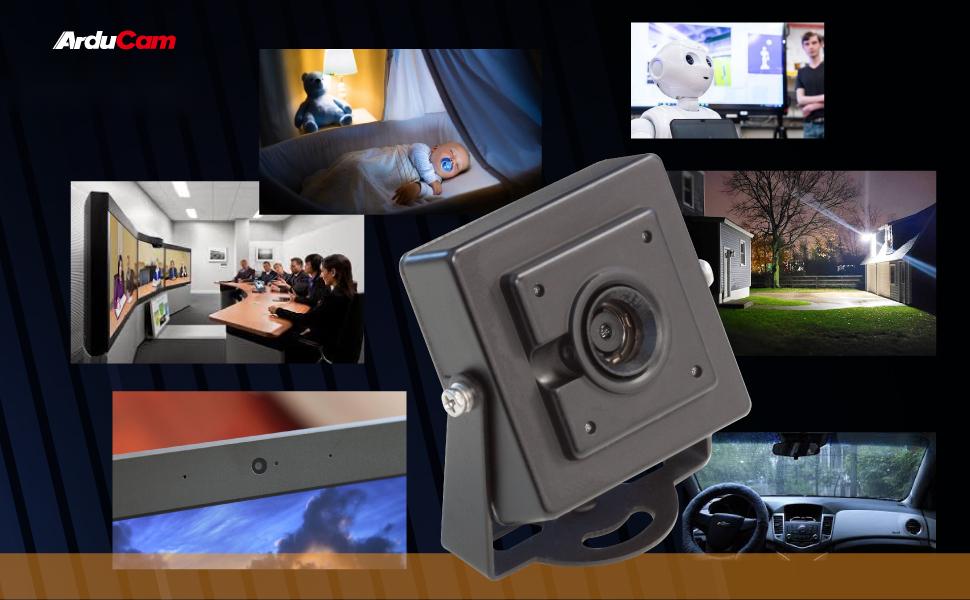

Applications
- 3D Scanner
- VR Camera
- Lightburn Laser Engraver Machine
- Surveillance
- Video System

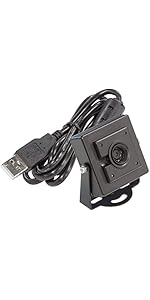

 Arducam 8MP Autofocus USB Camera Module with HDR with AI Resolutions |  Arducam 8MP IMX179 Autofocus Camera with Metal Case |  Arducam 4K AutoFocus HDR USB Camera Module |  Arducam 8MP IMX179 115°(H) Wide Angle USB Camera Module with M12 Lens | |
|---|---|---|---|---|
| Customer Reviews | — | — | — | — |
| Price | — | — | — | — |
| SKU | B044701 | B0447C | B0560 | B0446 |
| Focus Type | Autofocus | Autofocus | Autofocus | Manual Focus |
| Resolution | 8MP | 8MP | 8MP | 8MP |
| Field of View (FOV) | 75°(D)×61°(H)×50°(V) | 63°(H) | 75°(D)×61°(H)×50°(V) | 115°(H) |
| Support HDR | ? | no data | ? | no data |
| Support AI Resolution | ? | no data | no data | no data |
This camera is based on 8MP IMX179 image sensor. Output format: MJPG/YUY2. The max resolution&frame rate is 3264(H)x2448(V)@30fps. Besides, we have equipped the camera with Autofocus Lens. Arducam team is committed to creating more convenient and more efficient camera solutions. We have expanded the using scope of the image sensor, enabling the camera to realize your various projects. The camera is equipped with a 63°(H) autofocus Lens, allowing you to use it for some specific applications. It is compatible with Windows, Linux, Android, and Mac OS and No additional drivers are required.
| SENSOR | IMX179 |
| Color Filter Type | Color |
| Optical Size | 1/3.2" |
| Pixel Size | 1.4um x 1.4um |
| FOV | 63°(H)x75°(D)x50°(V) |
| F.NO | 2.0±5% |
| Interface | USB 2.0 device |
| UVC Compliant | No additional drivers are required |
| Working Current | Max 300mA |
| Camera Board Size | 38mm x 38mm |

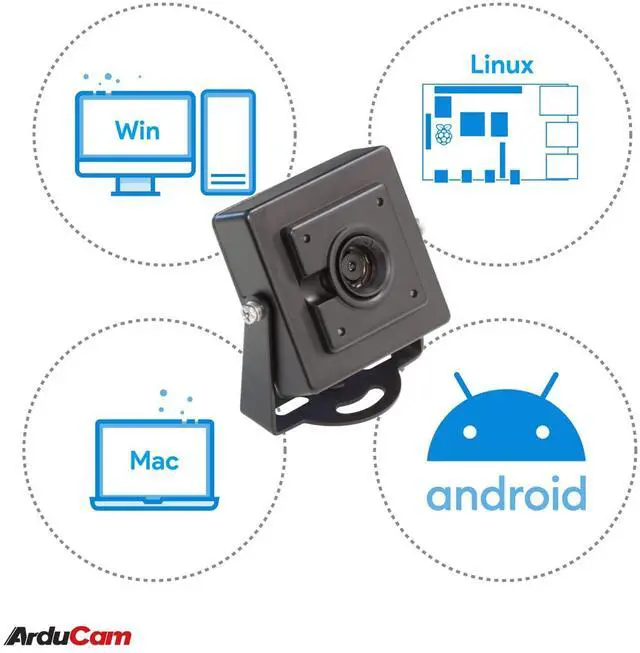

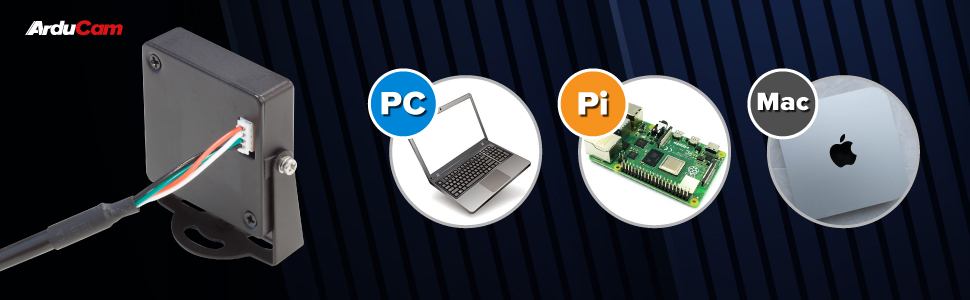

| Supported OS | Windows, Linux, Android, and Mac OS |
| Sample Application | AMCap-Windows Camera application for Video and Still Capture |
| UVC Controls | Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, White Balance, Backlight Comp, Gain |
| Audio | Single Microphone |
