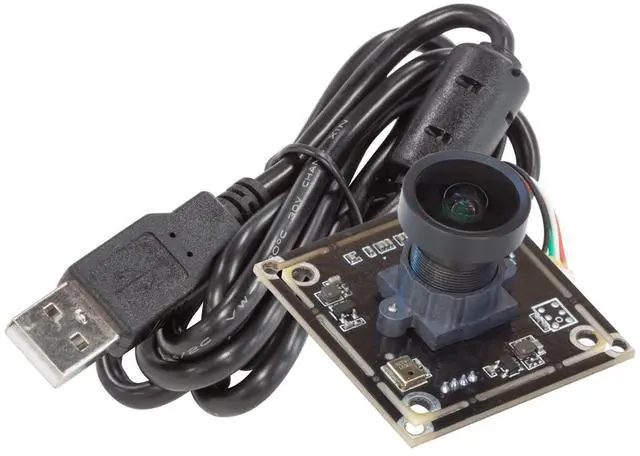

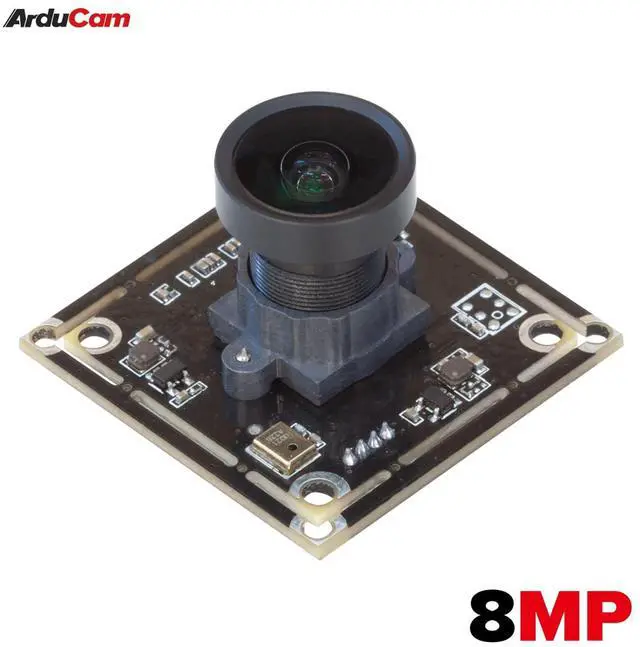

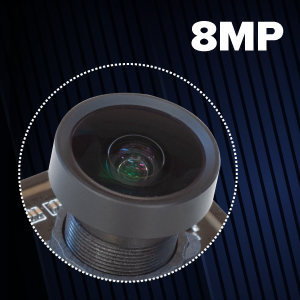

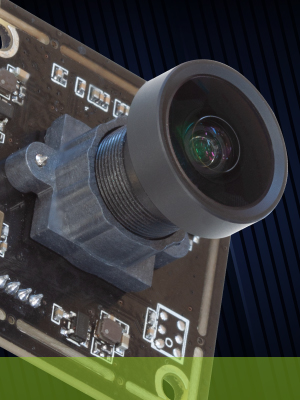

This camera is based on 8MP IMX179 image sensor. The output format is MJPG/YUY2. The max resolution&frame rate is MJPG 30fps@3264×2448, YUY2 1fps@3264×2448. Besides, we have equipped the camera with Manual Focus M12 Lens. Arducam team is committed to creating more convenient and more efficient camera solutions. We have expanded the using scope of the image sensor, enabling the camera to realize your various projects. The camera is equipped with a 115°(H) M12 Lens, allowing you to use it for more specific applications. It is compatible with Windows, Linux, Android, and Mac OS and No additional drivers are required.
Frame Rate
MJPG: 30fps@3264×2448/2592×1944/1920×1080/1600×1200/1280×720/640×480 YUY2:
1fps@3264×2448 2fps@2592×1944 5fps@1920×1080/1600×1200 10fps@1280×720 30fps@640×480
- 1 x Arducam 8MP Wide Angle USB Camera Module
- 1 x USB Cable (1m)
- 1 x Quick start guide
Specifications
Color Filter Type: Color
Shutter Type: Rolling shutter
Optical Size: 1/3.2"
F.NO: 2.0±5%
E.F.L: 3.543
Focal Length: 2.1
Interface: USB 2.0 device
Operating Voltage: DC 5V +/- 5%
Working Current: Max 300mA
Operating Temp: -4°F-158°F(-20°C to 70°C)
Plug & Play
8MP Resolution

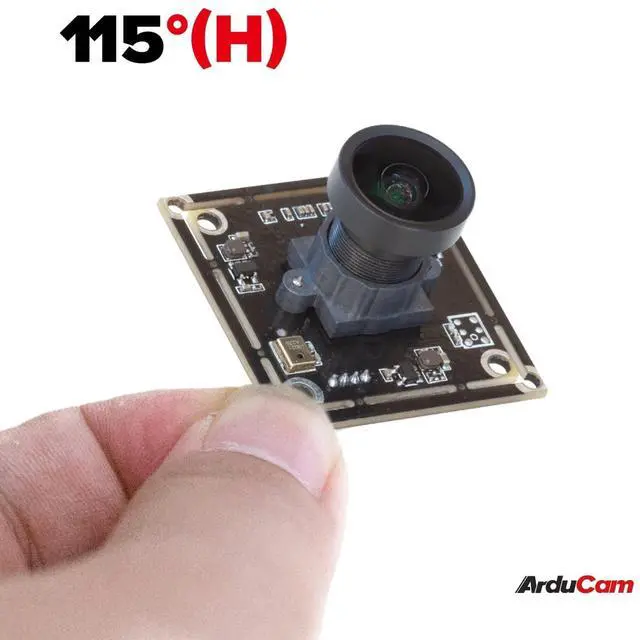

115°(H) Wide Angle
Notes
- The package contains small contents, please keep it away from children to avoid accidental ingestion
- After receiving the package, please confirm whether the contents of the package are consistent with the description.
This camera is based on 8MP IMX179 image sensor. The output format is MJPG/YUY2. The max resolution&frame rate is MJPG 30fps@3264×2448, YUY2 1fps@3264×2448. Besides, we have equipped the camera with Manual Focus M12 Lens. Arducam team is committed to creating more convenient and more efficient camera solutions. We have expanded the using scope of the image sensor, enabling the camera to realize your various projects. The camera is equipped with a 115°(H) M12 Lens, allowing you to use it for more specific applications. It is compatible with Windows, Linux, Android, and Mac OS and No additional drivers are required.
| SENSOR | IMX179 |
| Resolution | 8MP |
| Output Format | YUYV/MJPG |
| Sensor Active Area | 3264(H)x2448(V) |
| Focus Type | Manual Focus |
| FOV | 115°(H) |
| Lens Mount | M12xP0.5 |
| UVC Controls | Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, White Balance, Backlight Comp, Gain |

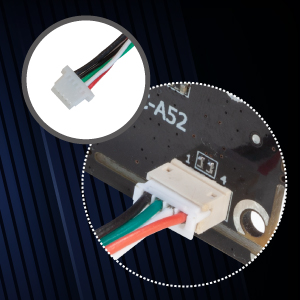

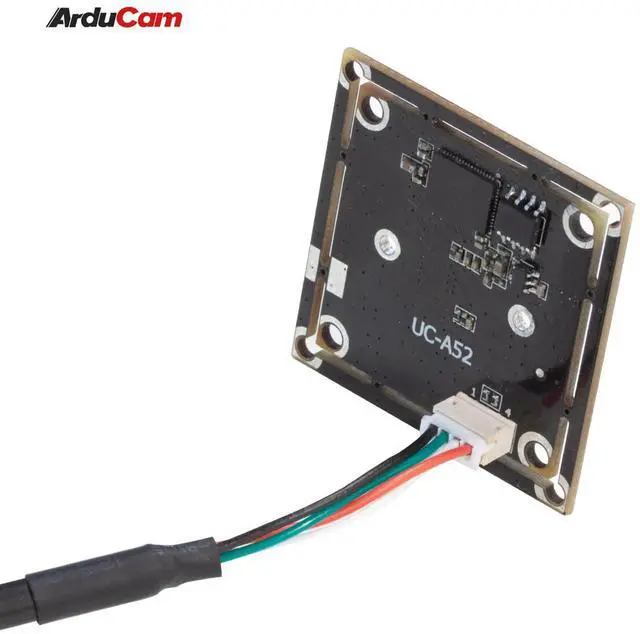

| Connector | B4B-ZR |
| UVC Compliant | No additional drivers required |

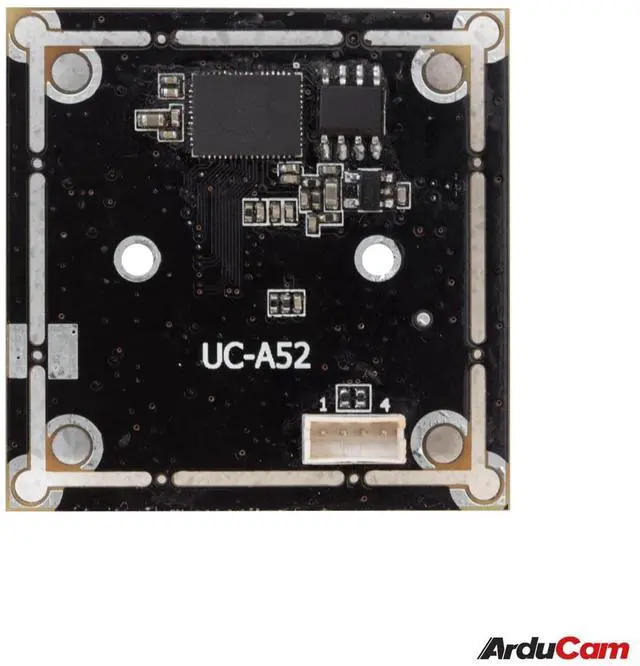

| Camera Board Size | 38mm x 38mm |
| Audio | Single Microphone |

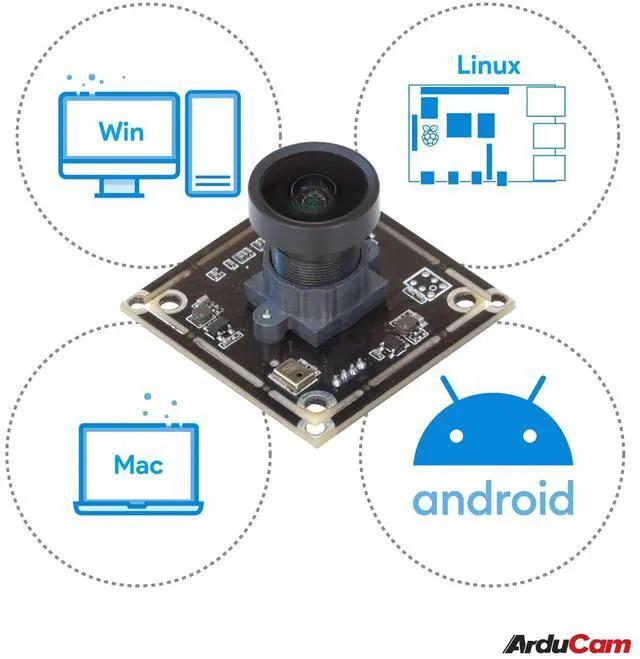

| Supported OS | Windows, Linux, Android, and Mac OS |
| Sample Application | AMCap-Windows Camera application for Video and Still Capture |
| TV Distortion | <20% |
| Pixel Size | 1.4um x 1.4um |
Specifications
Frame Rate
MJPG: 30fps@3264×2448/2592×1944/1920×1080/1600×1200/1280×720/640×480 YUY2:
1fps@3264×2448 2fps@2592×1944 5fps@1920×1080/1600×1200 10fps@1280×720 30fps@640×480
- 1 x Arducam 8MP Wide Angle USB Camera Module
- 1 x USB Cable (1m)
- 1 x Quick start guide
Color Filter Type: Color
Shutter Type: Rolling shutter
Optical Size: 1/3.2"
F.NO: 2.0±5%
E.F.L: 3.543
Focal Length: 2.1
Interface: USB 2.0 device
Operating Voltage: DC 5V +/- 5%
Working Current: Max 300mA
Operating Temp: -4°F-158°F(-20°C to 70°C)
Plug & Play
8MP Resolution
115°(H) Wide Angle
Notes
- The package contains small contents, please keep it away from children to avoid accidental ingestion
- After receiving the package, please confirm whether the contents of the package are consistent with the description.
