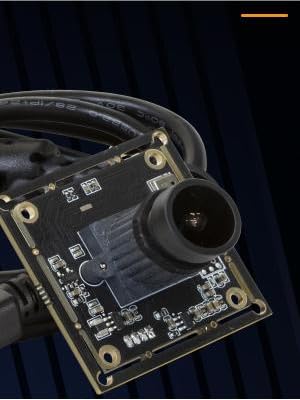

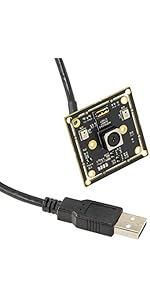

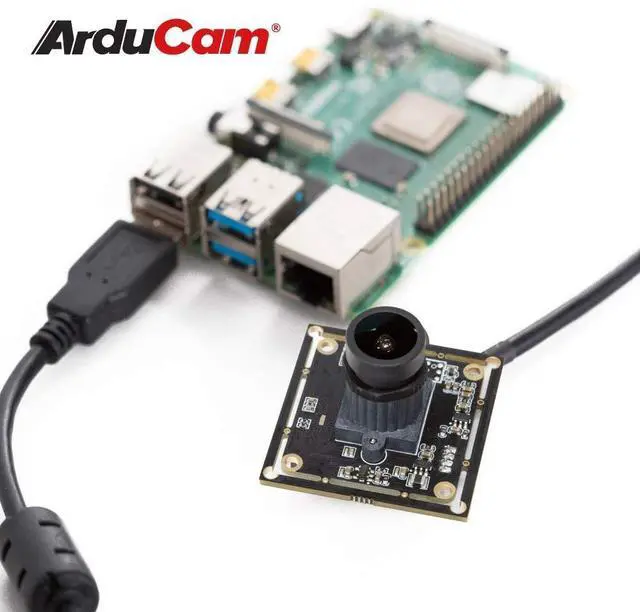

Arducam 2MP Low Light USB2.0 Camera
100 degree (diagonal)
Based on 1/2.8” 2MP IMX291 image sensor, wide angle, UVC compliant USB 2.0 cameras.
No extra drivers needed, the native UVC drivers of Windows, Linux and Mac shall be compatible with this camera.
Superior low light feature, shot sharp images even at night.
Built with a single microphone, capture video with audio.
NOTE
- This camera supports MJPG YUV and h264 encoder format. It will expose two video nodes.
- You can run commands shown as below to check each node :
- v4l2-ctl -d 0 –list-formats-ext
- v4l2-ctl -d 1 –list-formats-ext
SPECIFICATIONS
 Arducam IMX678 4K Low Light USB2.0 Camera Module |  Arducam for 5MP IMX335 Low Light Raspberry Pi Camera with M12 Lens |  Arducam 16MP IMX298 Autofocus USB Camera Module |  Arducam for 4K IMX415 Low Light Raspberry Pi Camera with M12 Lens |  Arducam 2.4MP IMX662 Ultra Low Light USB2.0 Camera Module |  M12 Lens Kit for USB Camera | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — no data | — | — | — no data | — | — |
| Sensor | IMX678 | IMX335 | IMX298 | IMX415 | IMX662 | / |
| Resolution | 8.3MP | 5MP | 16MP | 4K | 2.4MP | / |
| Field of View | 100°(D) | 104.9°(D) | H= 60° | 104°(D) | 102°(D) | 20°-180° |
| Features | Low Light | Low Light | High-Res | Low Light | Low Light | / |
| Focus Type | Fixed Focus | Fixed Focus | Autofocus | Fixed Focus | Fixed Focus | / |

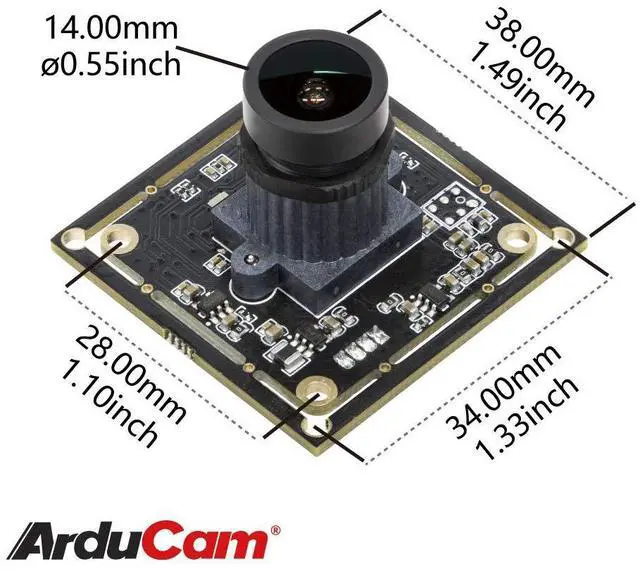

| Board Size | 34mm x 34mm | 24mm x 25mm | 38mmx38mm | 24mm x 25mm | 38mmX38mm | / |
| SKU | B0587 | B0568 | B0290 | B0569 | B0576 | LK005 |
5MP OV5647 RPi Camera V1
8MP IMX219 RPi Camera V2
ToF Camera for Depth Sensing
8MP IMX219 Jetson Nano Camera
12MP IMX477 RPi Cameras Series
12MP IMX477 Jetson Nano Camera
16MP IMX519 RPi Camera Series
64MP AF RPi Camera Series
Raspberry Pi Pico Camera
SPI Camera for Arduino&Pi Pico
Autofocus USB Camera
Low Light USB Cameras
Wide Angle USB Cameras
Night Vision/Global Shutter
Varifocal USB Cameras

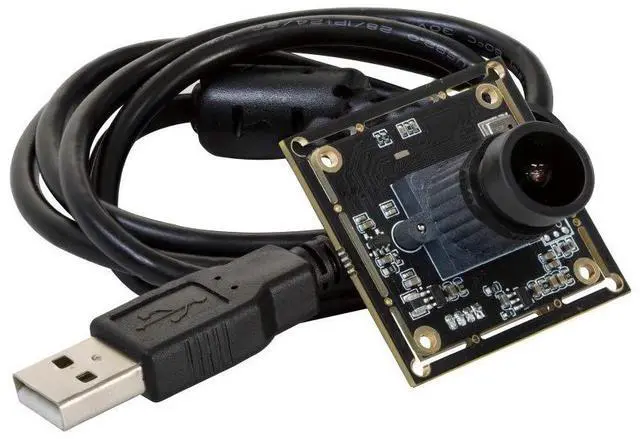

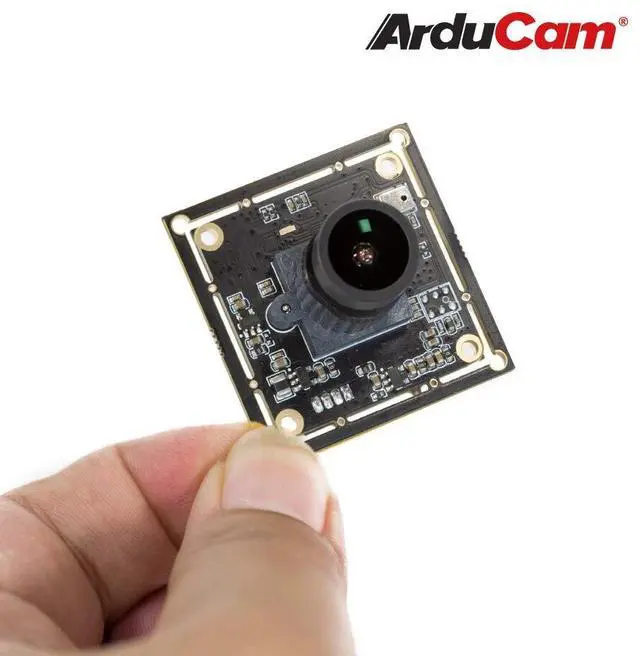

Arducam 2MP Low Light USB2.0 Camera
APPLICATIONS:
- Video conference
- Home video surveillance system
- Day&night low light vision security camera system
- Dash cam
- Monitoring 3D printer
- Robot and machine vision
- ...
100 degree (diagonal)
Based on 1/2.8” 2MP IMX291 image sensor, wide angle, UVC compliant USB 2.0 cameras.

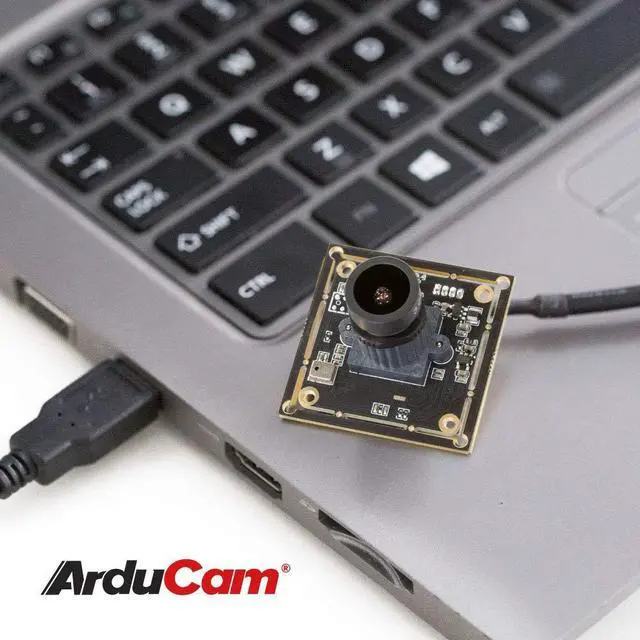

No extra drivers needed, the native UVC drivers of Windows, Linux and Mac shall be compatible with this camera.
Superior low light feature, shot sharp images even at night.
Built with a single microphone, capture video with audio.
NOTE
- This camera supports MJPG YUV and h264 encoder format. It will expose two video nodes.
- You can run commands shown as below to check each node :
- v4l2-ctl -d 0 –list-formats-ext
- v4l2-ctl -d 1 –list-formats-ext
SPECIFICATIONS
| Sensor | 1/2.8” IMX291 |
| Resolution | 2MP 1945H x 1109V |
| Data Format | MJPG/YUY2/H.264 |
| Frame Rate | MJPG: 30fps@1920×1080/1280×720/800×600/640×480/320×240 YUV: 5fps@1920×1080; 10fps@1280×720/800×600; 30fps@640×480/320×240 H.264: 30fps@1920×1080/1280×720@30fps/800×600/640×480/320×240 |
| Dynamic Range | 80DB |
| Minimum Illumination | 0.001Lux |
| Field of View (FOV) | D= 100° |
| Lens Mount | M12 |
| Focusing Range | 3.3ft (1M) to infinity |
| IR Sensitivity | Integral IR filter, visible light only |
| Auto Controlled Features | Saturation, Contrast, Acutance, White balance, Exposure. |

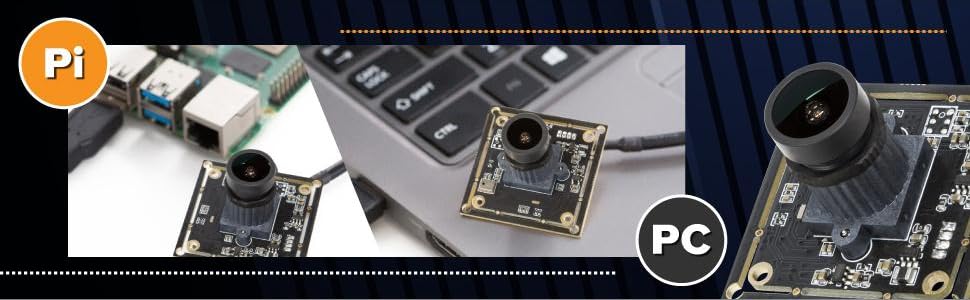

| System Compatibility | Windows, Linux, Android, and Mac with UVC |
| Power Supply | DC 5V |
| Working Current | MAX 300mA |
| Operating Temp. | -4°F~158°F (-20°C~+70°C) |
| Cable Length | 3.3ft (1M) |
